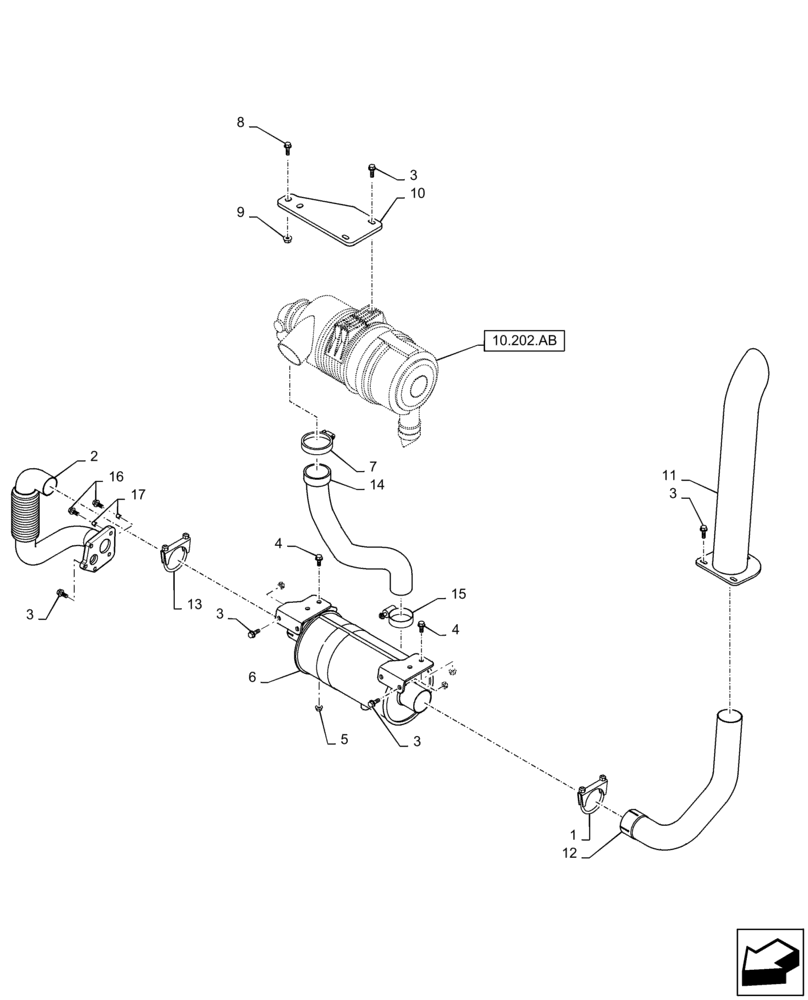

Запчасти Case IH SR150 (10.202.AD) - ENGINE, EXHAUST SYSTEM ISM 2L (SR150) (10) - ENGINE

1

47541188

CLAMP,68mm ID, Muffler

Muffler

1шт.

2

84287174

Exhaust, Flexible

EXHAUST SYSTEM PIPE

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

6

84287171

MUFFLER,Aspirated

1шт.

7

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

10

84299811

Air Cleaner

BRACKET

1шт.

11

84495949

EXTENSION

Exhaust Stack

1шт.

12

84287178

AIR INTAKE TUBE

Exhaust, Tailpipe

1шт.

13

84588569

CLAMP,54mm ID, Muffler

1шт.

14

84277061

Air Cleaner To Turbo

HOSE

1шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

16

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

17

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.
