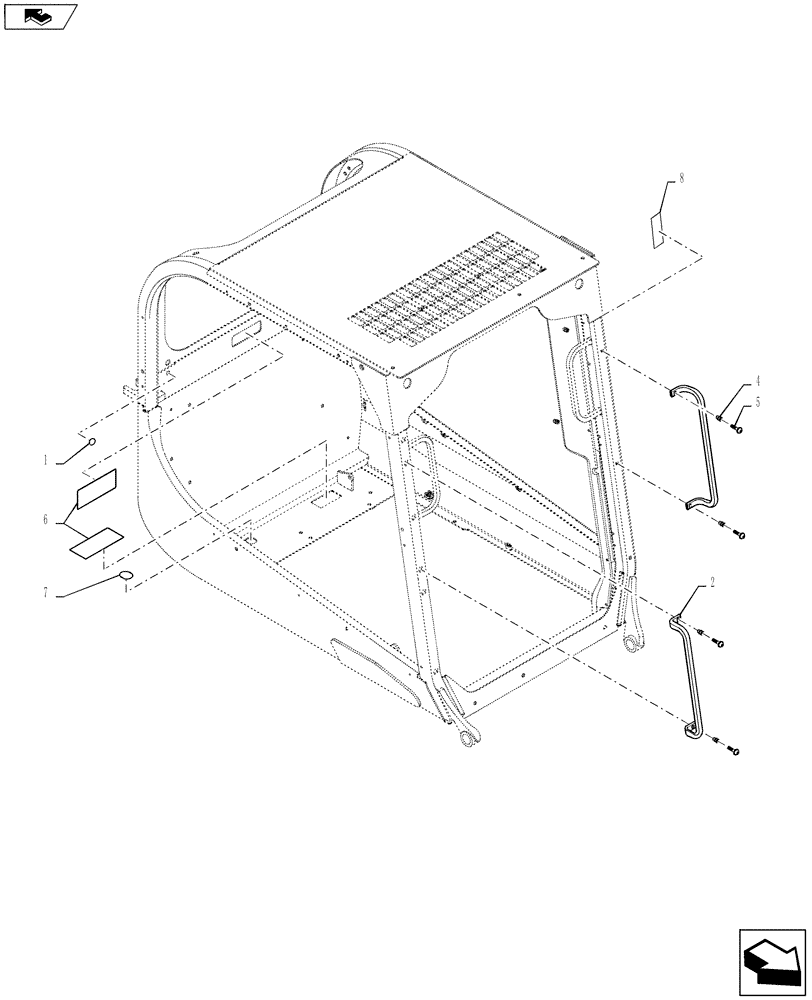

Запчасти Case IH SR150 (90.154.AC) - OPEN CAB, NO HEAT OR HVAC (SR130,SR150) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Gray

2шт.

2

84359879

RH, Front, Cab, Gray

HANDLE

1шт.

3

84354286

LH, Front, Cab, Gray

HANDLE

1шт.

4

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

Nut, M6 X 1.0

4шт.

5

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

M6 X 25

4шт.

6

84312310

COVER,165mm L x 70mm W x 1.70mm Thk

Plate, Gray

2шт.

7

84357636

DECAL,53mm OD, Gray

Plug

1шт.

8

84353623

DECAL

HVAC Blank

1шт.
