(90.120.AD[01]) - SEAT, NON SUSPENSION (ALL CASE)

Запчасти Case IH SR150 (90.120.AD[01]) - SEAT, NON SUSPENSION (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

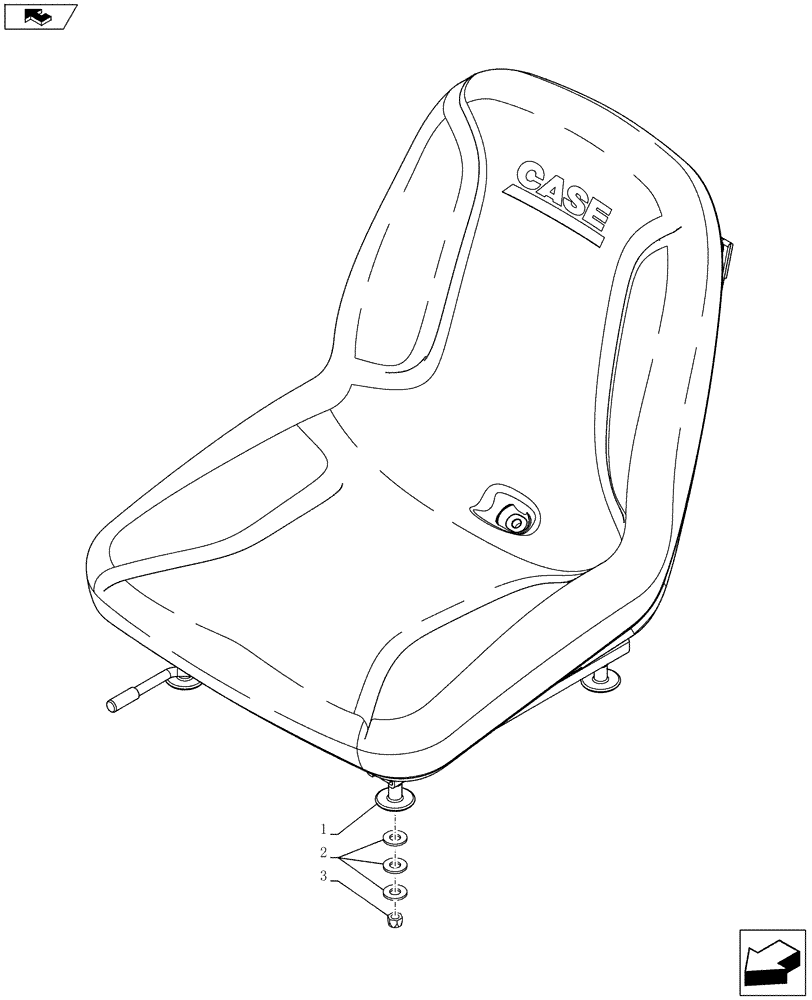

Схема запчастей Case IH SR150 - (90.120.AD[01]) - SEAT, NON SUSPENSION (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
home
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702543

SEAT

Non-Suspension

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

3

86629544

NUT,5/16” – 18, GR B

4шт.

4

84575683

SERVICE KIT

Case Seat Assembly

1шт.

5

84575684

SERVICE KIT

Slide, Adjuster Assembly, Seat Belt Bar

1шт.

6

84575682

SERVICE KIT

Seat Switch, And Harness

1шт.
