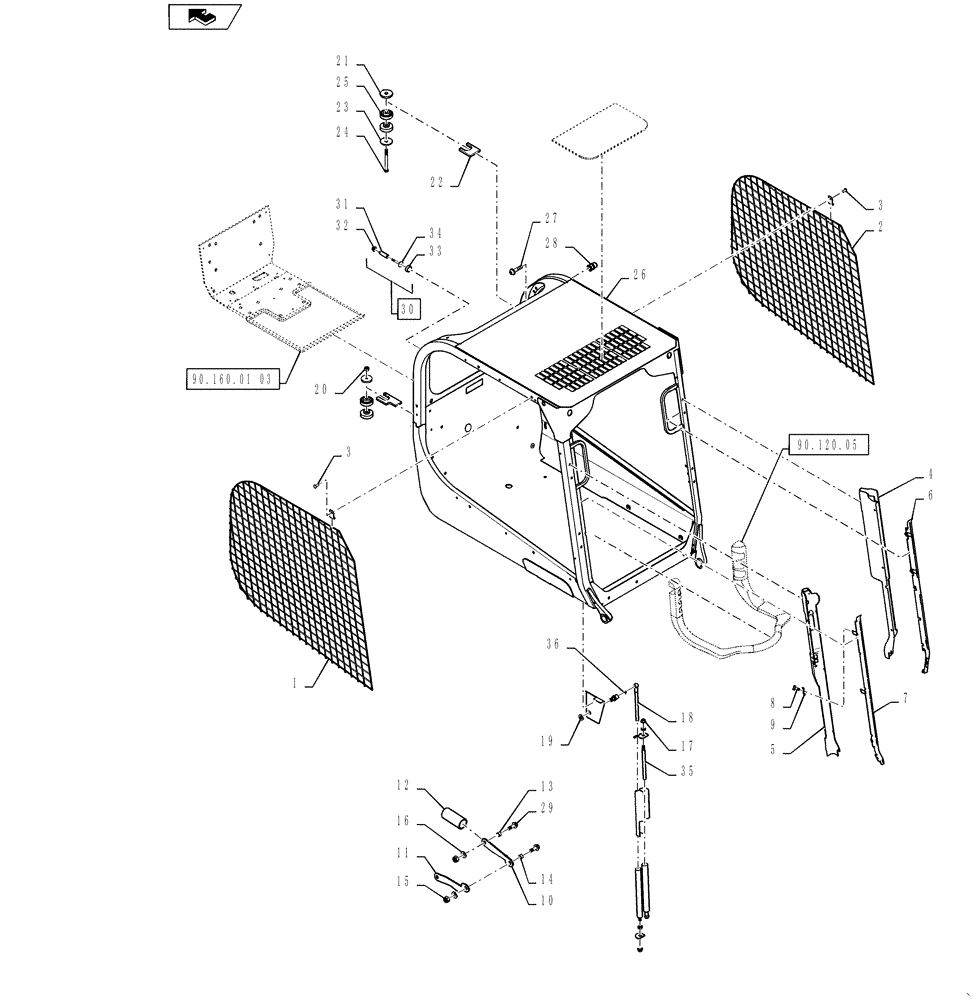

Запчасти Case IH SR150 (90.119.AB[02]) - CAB CASE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84200803

ROPS, RH

SCREEN

1шт.

2

84307405

ROPS, LH

SCREEN

1шт.

3

84310724

RIVET,Button, 6.4mm OD x 15.9mm L

22шт.

4

84379512

TRIM PANEL

Console, LH Case

1шт.

5

84302476

Console, RH Case

CONSOLE

1шт.

6

84473542

BRACKET

LH A-Post Console

1шт.

7

84473534

RH A-Post Console, Years: -21-MAR-13

BRACKET

1шт.

7

47428342

RH A-Post Console, Start Year: 22-MAR-13

BRACKET

1шт.

8

84349415

SCREW,Torx, Round HD, M6 x 12mm, Cl 10.9

12шт.

9

87594976

SPECIAL NUT

12шт.

10

84349605

Plate, Upper Locking Arm

PLATE

1шт.

11

84349612

Plate, Lower Locking Arm

PLATE

1шт.

12

84309929

Tube, Locking Collar

TUBE

1шт.

13

84349662

SPACER,10.80mm ID x 14.80mm OD x 8.35mm

2шт.

14

84349661

SPACER,10.8mm ID x 14.8mm OD x 16mm L

1шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

17

412141

NUT,M10 x 1.5, Cl 8

1шт.

18

84423628

GAS STRUT

1шт.

19

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

20

412066

NUT,M16 x 2.0, Cl 8

2шт.

21

84298254

PLATE

Rear Mount

2шт.

22

84361070

PLATE

2шт.

23

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

2шт.

24

87698773

BOLT,Hex, M16 x 160mm, Cl 10.9, Full Thd

2шт.

25

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

4шт.

26

NS

NOT SERVICED

ROPS, CNH Gray

1шт.

27

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

3шт.

28

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

29

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

30

NSS

NOT SOLD SEPARAT

Lap Bar Stop, See Figure 90.120.05

1шт.

31

84355970

Round Lap Bar Stop

MOUNT

2шт.

32

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

33

87639914

STOP

Pivot Lap Bar Stop

2шт.

34

87639912

KNOB

Star Knob 3/8"

2шт.

35

84372097

STUD

Ball

2шт.

36

84372099

CLIP

2шт.
