(90.119.AB[01]) - CAB SEALING (ALL CASE)

Запчасти Case IH SR150 (90.119.AB[01]) - CAB SEALING (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

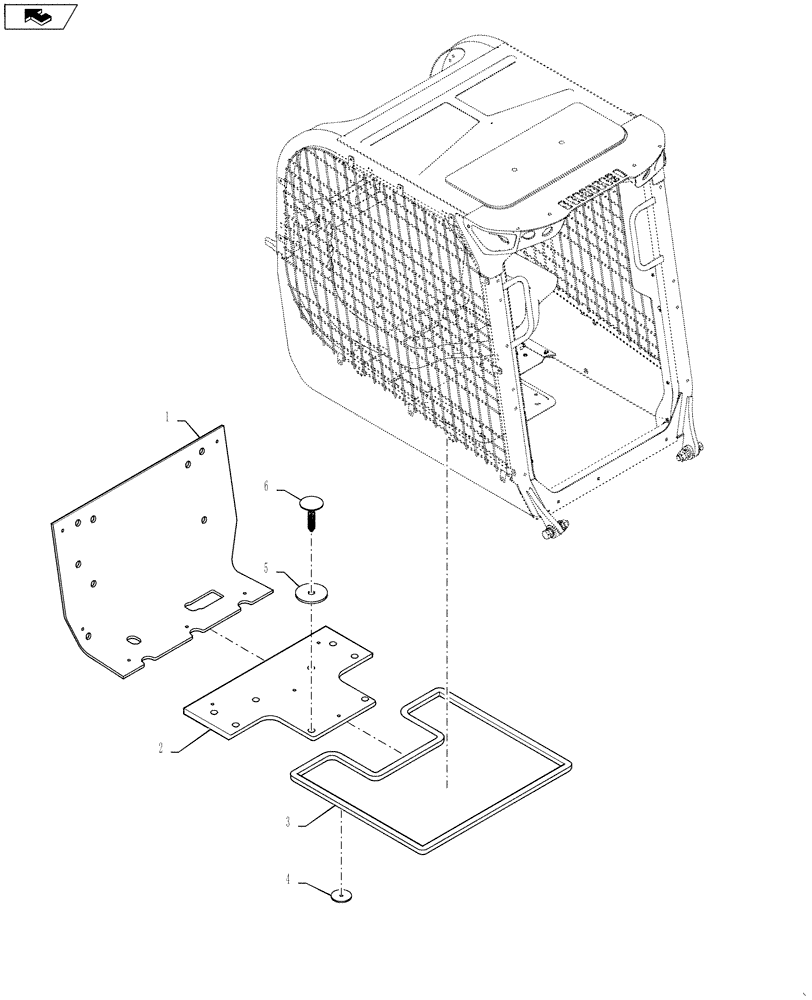

Схема запчастей Case IH SR150 - (90.119.AB[01]) - CAB SEALING (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
1
6
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84362124

Firewall

FOAM INSULATION

1шт.

2

84372040

FOAM

Seat Pan

1шт.

3

84338534

SEAL,Bulk 30.48m

3326 mm

1шт.

4

84311384

FOAM INSULATION

Foam, Dump Valve

1шт.

5

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

Push-In

7шт.

6

348452A1

FASTENER,Push-In, 37mm L, Nylon

Push-In

7шт.
