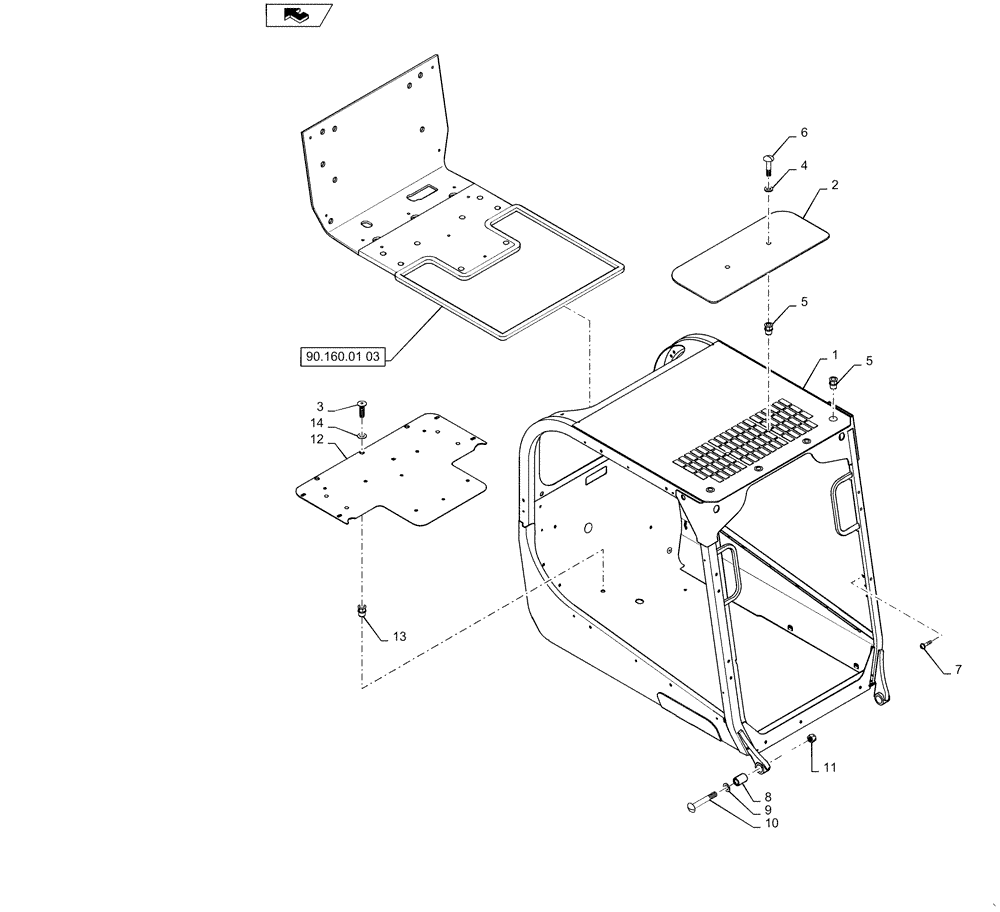

Запчасти Case IH SR150 (90.119.AB[01]) - CAB CASE SMALL (SR130,SR150) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84498872

ROPS, CNH Gray

KIT

1шт.

2

84336571

WINDOW

Skylight

1шт.

Top Window Seal, P/N 84371644

1шт.

3

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

9шт.

4

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.

5

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

6

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

2шт.

7

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

8шт.

8

84200848

MOUNT

2шт.

9

84365968

SEALING WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

10

84370842

CARRIAGE BOLT,Sht Sq Nk, M20 x 100mm, Cl 10.9, Full Thd

2шт.

11

86536985

NUT,M20 x 2.5, Cl 10

2шт.

12

84284728

SEAT

1шт.

13

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

7шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

84472461

Behind Seat Assembly, Gray

COVER

1шт.

16

84420168

SPACER,37mm ID x 50.8mm OD x 10mm L

Cab

2шт.
