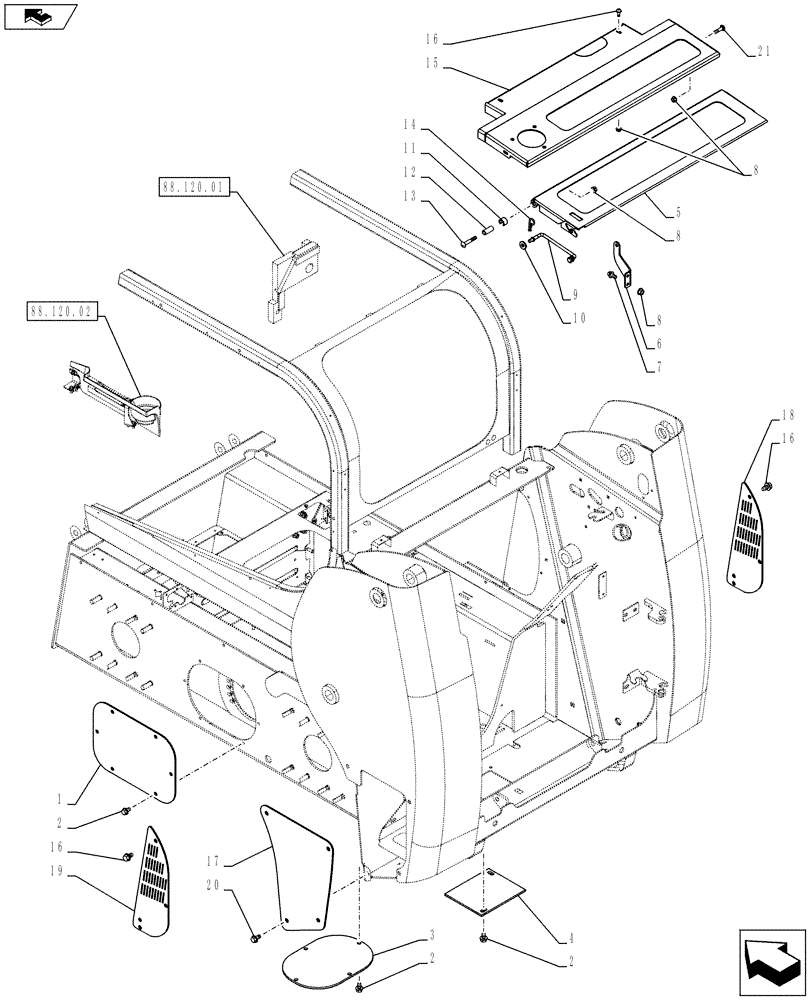

Запчасти Case IH SR150 (90.100.AU) - HOODS AND COVERS (SR130,SR150) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84295151

Tan

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

2

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

3

84299800

Gray

COVER PLATE

1шт.

4

84299809

Plumbing Access

COVER PLATE

1шт.

5

84323960

Rear Small, Gray

HOOD

1шт.

6

84323945

Hood Lock Tab

LOCKING TAB

1шт.

7

236622

PLUG,3/8" - 18 NPT

HDLS 3/8 Hex Skt Pipe

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

9

87603956

ROD

1шт.

10

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

HDLS 1/2 NPTF Sq Skt Pipe

4шт.

11

87429698

SPACER

Hood

2шт.

12

259905A1

SPACER

2шт.

13

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

14

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

15

84323961

Rear Deck, Gray

PANEL

1шт.

16

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

2шт.

17

84306104

Battery, Tan

COVER

1шт.

18

84387786

Hood Stop

STOP

1шт.

19

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

20

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

21

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

2шт.

22

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

23

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

RWH M6x16 Torx 10.9

2шт.
