(90.100.AG) - CHASSIS HOODS AND COVERS (SR130,SR150)

Запчасти Case IH SR150 (90.100.AG) - CHASSIS HOODS AND COVERS (SR130,SR150) (90) - PLATFORM, CAB, BODYWORK AND DECALS

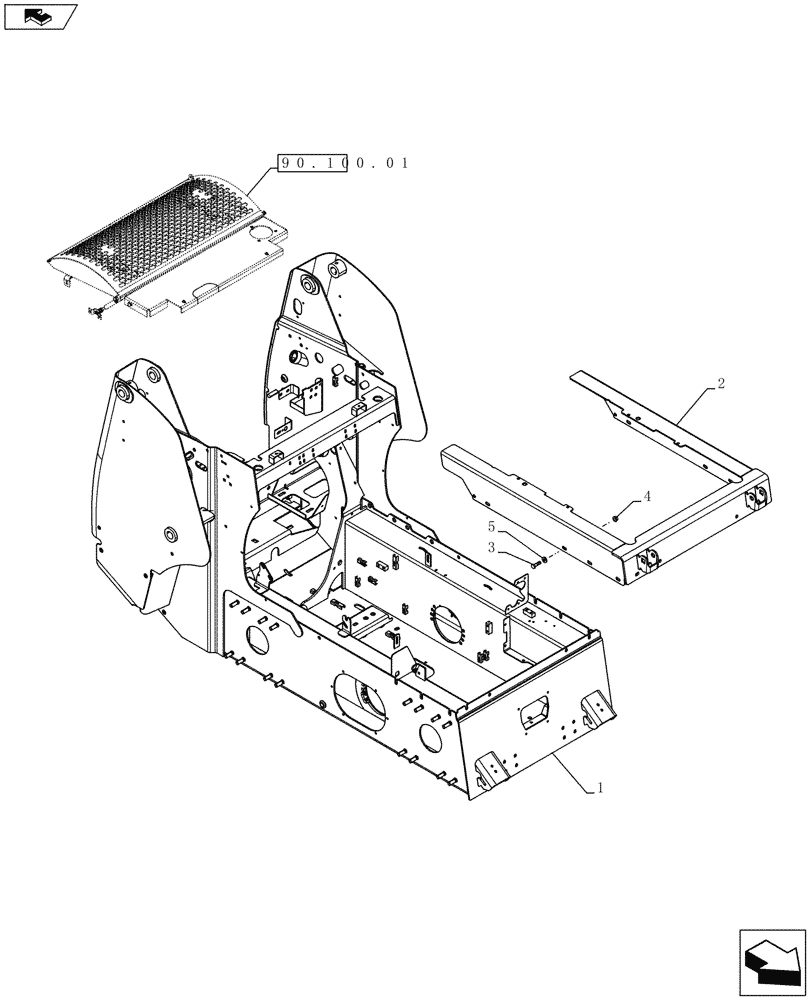

Схема запчастей Case IH SR150 - (90.100.AG) - CHASSIS HOODS AND COVERS (SR130,SR150) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
90.100.01
home
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Chassis

1шт.

2

84404060

Member, Cab Skirt LH

SKIRT

1шт.

3

84404067

Member, Cab Skirt RH, Tan

SKIRT

1шт.

4

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

5

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

6шт.
