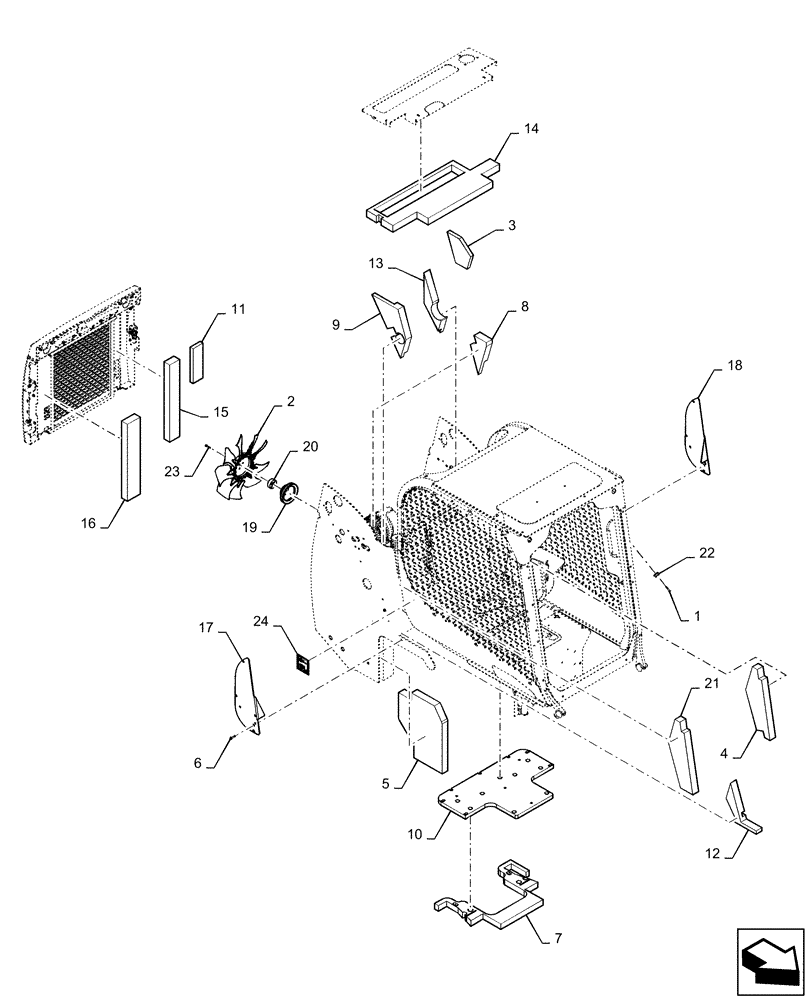

Запчасти Case IH SR150 (88.100.10[12]) - ENGINE ACCESSORIES EU/OPEN EU SR150 (88) - ACCESSORIES

1

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

2

47414133

FAN

1шт.

3

47522827

Tower Rear LH

FOAM INSULATION

1шт.

4

47522829

Tower Rear LH

FOAM INSULATION

1шт.

5

47637596

Counterweight

FOAM INSULATION

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

7

84366352

RH Tower Upper

FOAM INSULATION

1шт.

8

84366354

Tower Upper RH

FOAM INSULATION

1шт.

9

84366356

Tower Upper Rear RH

FOAM INSULATION

1шт.

10

84372040

FOAM

Seat Pan, Only for Open Cab

1шт.

11

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan LH

1шт.

12

84373799

Tower Lower RH

FOAM INSULATION

1шт.

13

84373800

Tower Rear LH

FOAM INSULATION

1шт.

14

84374185

Panel Cover

FOAM INSULATION

1шт.

15

84374541

Rear Door LH

FOAM INSULATION

1шт.

16

84374542

Rear Door RH

FOAM INSULATION

1шт.

17

84383823

Chassis Vent, LH

COVER

1шт.

18

84383826

Chassis Vent, RH

COVER

1шт.

19

84388643

PULLEY,136.73mm OD

1шт.

20

84513656

SPACER,21.1mm W

1шт.

21

84540795

FOAM INSULATION

Tower RH

1шт.

22

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

23

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

24

87353967

DECAL,LWA 101DB, 100mm x 110 mm

1шт.
