(10.001.02[02]) - CYLINDER BLOCK

Запчасти Case IH SR150 (10.001.02[02]) - CYLINDER BLOCK (10) - ENGINE

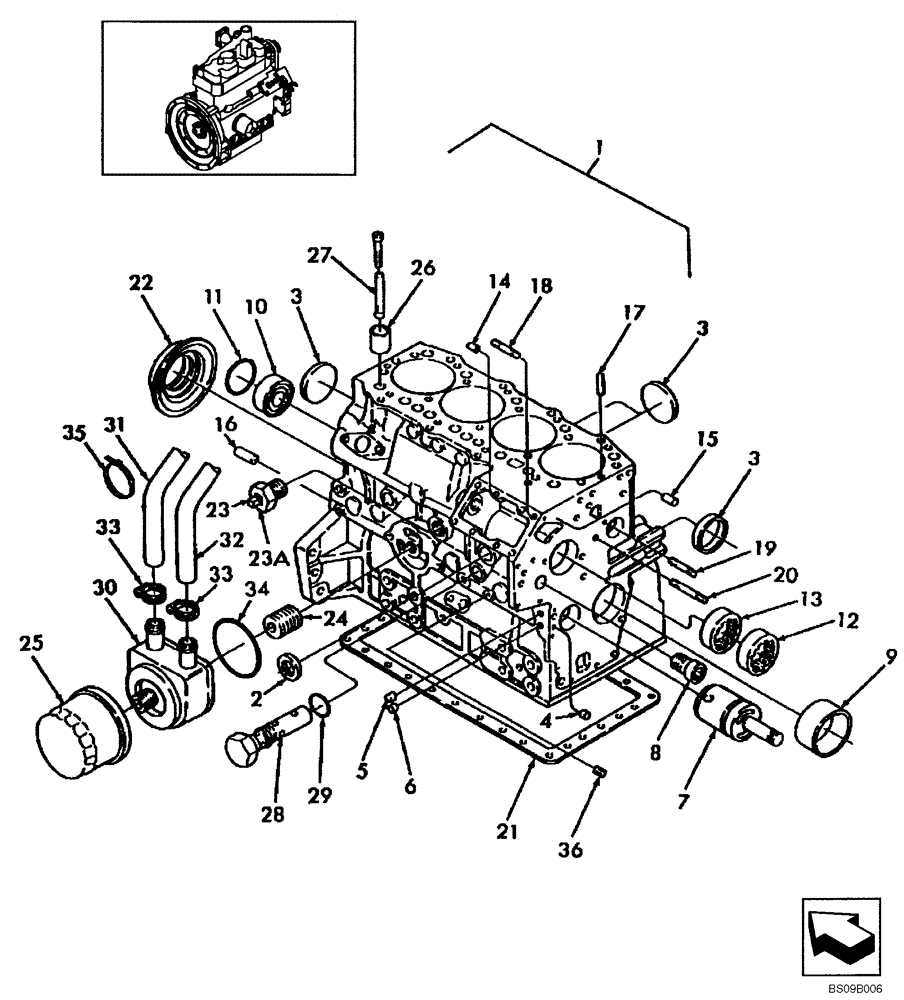

Схема запчастей Case IH SR150 - (10.001.02[02]) - CYLINDER BLOCK (10) - ENGINE
17
9
29
23
11
33
20
3
34
19
3
21
5
31
18
14
28
3
23a
13
30
22
33
15
36
10
2
32
35
6
12
24
7
8
16
25
27
1
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA195907000

KIT

Full Overhaul Gasket Kit; See Figure 10.101.01 [02]

1шт.

2

SBA064200025

PLUG

Sealing

2шт.

3

SBA064210040

CAP

5шт.

4

SBA198466010

PLUG

8.4mm

3шт.

5

SBA198466020

PLUG

10.4mm

4шт.

6

SBA198466030

PLUG

6.5 x 7mm

4шт.

7

SBA165296220

SHAFT

Idler Gear

1шт.

8

SBA198517090

BUSHING

1шт.

9

SBA198517222

BUSHING

Std

1шт.

9

SBA198517226

BUSHING

.1" (.25mm), U/S

1шт.

9

SBA198517229

BUSHING

.2" (.5mm), U/S

1шт.

10

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

11

SBA064100045

PLUG

Expansion

1шт.

12

SBA042309018

NEEDLE BEARING

1шт.

13

SBA042309017

NEEDLE BEARING

1шт.

14

SBA030500612

DOWEL

2шт.

15

SBA030500616

DOWEL,M6 x 16

2шт.

16

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

17

SBA030309005

PIN

Spring

2шт.

18

SBA012110820

STUD

3шт.

19

SBA012110635

STUD

1шт.

20

SBA012110660

STUD

1шт.

21

SBA110996860

GASKET

Oil Pan

1шт.

22

SBA198636170

SEAL

Rear Main

1шт.

23

SBA064500060

PLUG

Draincock

1шт.

24

SBA140546020

ADAPTER

Joint

1шт.

25

84475542

ENGINE OIL FILTER

Main

1шт.

26

SBA120116160

TAPPET

8шт.

27

SBA120456250

PUSH ROD

Complete

8шт.

28

SBA140036220

VALVE PRESSURE RELIE

1шт.

29

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

30

SBA140656120

OIL COOLER

1шт.

31

SBA068209260

HOSE

1шт.

32

SBA068209264

HOSE

1шт.

33

SBA067100025

HOSE CLAMP

4шт.

34

SBA140996240

SEAL

1шт.

35

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

36

SBA064409006

PLUG,1/8" NPT

1шт.
