Запчасти Case IH SR150 (82.300.AN[01]) - BUCKETS - LOADER, EXTENDED LOW PROFILE (82) - FRONT LOADER & BUCKET

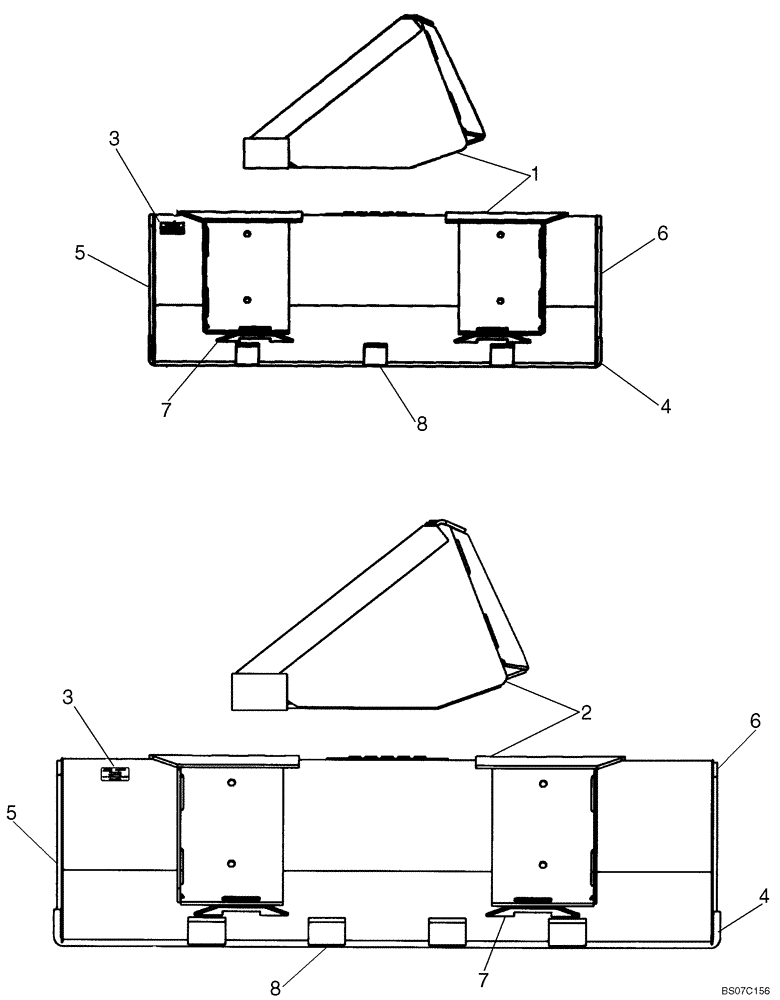

Схема запчастей Case IH SR150 - (82.300.AN[01]) - BUCKETS - LOADER, EXTENDED LOW PROFILE (82) - FRONT LOADER & BUCKET
4
7
3
5
8
1
4
5
8
2
5
3
6
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LOW PROFILE, EXTENDED LOW PROFILE

1шт.

1

87010190

BUCKET

Low Profile; 60 Inch; Order From Machinery Price List; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Decal

1шт.

4

86577164

CUTTING EDGE

Weld On Blade

1шт.

5

9829784

CUTTING EDGE

Cutter Left Hand

1шт.

6

9829783

CUTTING EDGE

Cutter Right Hand

1шт.

7

9822175

PLATE

2шт.

8

86501840

BAR

Skid

3шт.

1a

86618363

BUCKET

Low Profile; 66 Inch; Order From Machinery Price List; Incl. 3A - 8A

1шт.

3a

NSS

NOT SOLD SEPARAT

Decal

1шт.

4a

86577166

CUTTING EDGE

Weld On Blade

1шт.

5a

9829784

CUTTING EDGE

Cutter Left Hand

1шт.

6a

9829783

CUTTING EDGE

Cutter Right Hand

1шт.

7a

9822175

PLATE

2шт.

8a

9829786

BAR

Skid

3шт.

1b

86618364

BUCKET

Low Profile; 72 Inch; Order From Machinery Price List; Incl. 3B - 8B

1шт.

3b

NSS

NOT SOLD SEPARAT

Decal

1шт.

4b

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5b

9829784

CUTTING EDGE

Cutter Left Hand

1шт.

6b

9829783

CUTTING EDGE

Cutter Right Hand

1шт.

7b

9822175

PLATE

2шт.

8b

9829786

BAR

Skid

4шт.

2

86618353

BUCKET

Extended Low Profile; 60 Inch; Order From Machinery Price List; Incl. 3C - 8C

1шт.

3c

NSS

NOT SOLD SEPARAT

Decal

1шт.

4c

86577164

CUTTING EDGE

Weld On Blade

1шт.

5c

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6c

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7c

9822175

PLATE

2шт.

8c

86510313

BAR

Skid

3шт.

2a

86618354

BUCKET

Extended Low Profile; 66 Inch; Order From Machinery Price List; Incl. 3D - 8D

1шт.

3d

NSS

NOT SOLD SEPARAT

Decal

1шт.

4d

86577166

CUTTING EDGE

Weld On Blade

1шт.

5d

9829784

CUTTING EDGE

Cutter Left Hand

1шт.

6d

9829783

CUTTING EDGE

Cutter Right Hand

1шт.

7d

9822175

PLATE

2шт.

8d

9829786

BAR

Skid

3шт.

2b

86618355

BUCKET

Extended Low Profile; 72 Inch; Order From Machinery Price List; Incl. 3E - 8E

1шт.

3e

NSS

NOT SOLD SEPARAT

Decal

1шт.

4e

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade

1шт.

5e

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6e

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7e

9822175

PLATE

2шт.

8e

86510314

BAR

Skid

3шт.

2c

86633059

BUCKET

Extended Low Profile; 78 Inch; Order From Machinery Price List; Incl. 3F - 8F

1шт.

3f

NSS

NOT SOLD SEPARAT

Decal

1шт.

4f

86577170

CUTTING EDGE,Weld On, 9 Hole, 152.4mm W x 1978.2mm L

Weld On Blade

1шт.

5f

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6f

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7f

9822175

PLATE

2шт.

8f

86510314

BAR

Skid

4шт.

2d

86618356

BUCKET

Extended Low Profile; 84 Inch; Order From Machinery Price List; Incl. 3G - 8G

1шт.

3g

NSS

NOT SOLD SEPARAT

Decal

1шт.

4g

86577172

CUTTING EDGE,Weld On, 9 Hole, 203.2mm W x 2130.6mm L

Weld On Blade

1шт.

5g

86510316

CUTTING EDGE

Cutter Left Hand

1шт.

6g

86510315

CUTTING EDGE

Cutter Right Hand

1шт.

7g

9822175

PLATE

2шт.

8g

86554088

BAR

SKid Bar

5шт.

Выбрано товаров: 57
