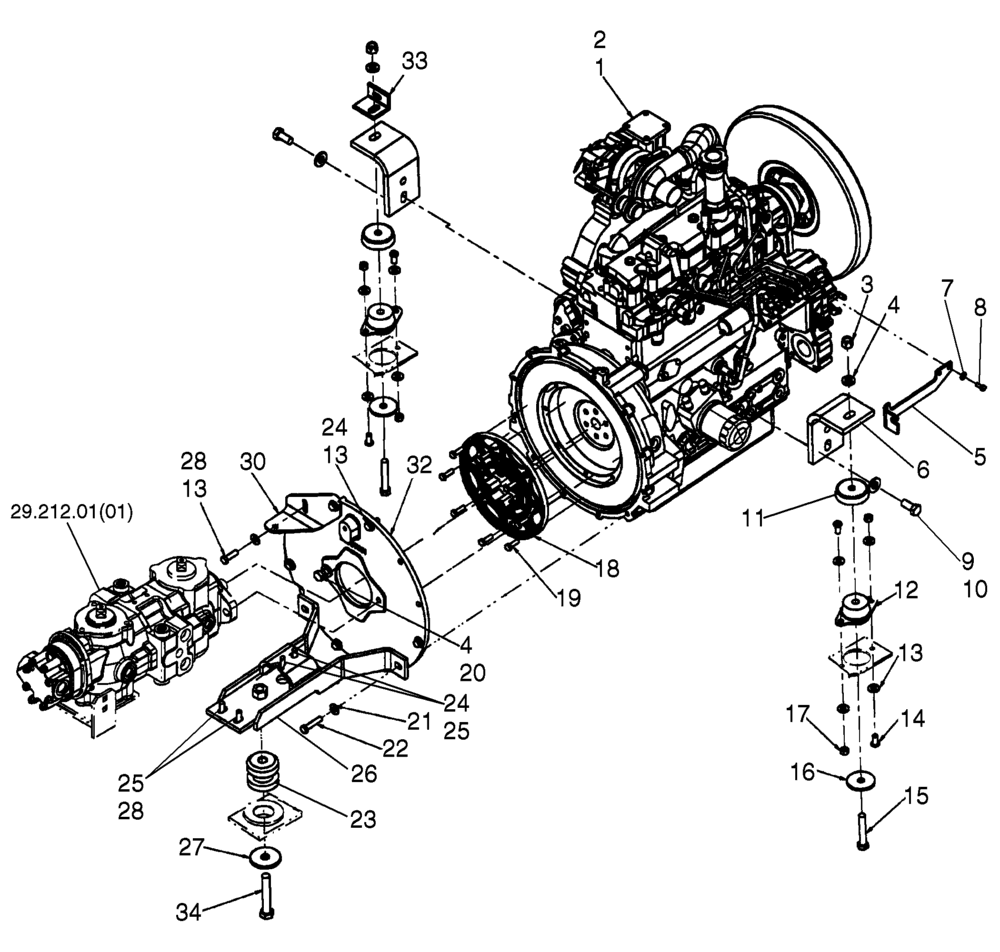

Запчасти Case IH SR150 (10.001.01[02]) - ENGINE (10) - ENGINE

1

SBA133733

ENGINE,4 Cylinders, W/ Turbocharger

Engine N844T, Tier 3; For Service Order Long Block SBA133791

1шт.

1

SBA133733R

Engine N844T, Tier 3

REMAN-REPLACEMENT EN

1шт.

1

SBA133733C

Return Number

CORE-ENGINE

1шт.

1

SBA133733ER

REMAN-REPLACEMENT EN

Engine N844T, Tier 3

1шт.

1

SBA133733EPAC

Return Number

CORE-EPA ENGINE

1шт.

2

SBA133791

Long Block, Tier 3 Engine

ENGINE

1шт.

2

SBA133791R

Long Block, Tier 3 Engine

REMAN-REPLACEMENT EN

1шт.

2

SBA133791C

Return Number

CORE-REPLACEMENT ENG

1шт.

2

SBA133791ER

REMAN-REPLACEMENT EN

Long Block, Tier 3 Engine

1шт.

2

SBA133791EPAC

CORE-EPA ENGINE

Return Number

1шт.

3

88871

NUT,1/2"-13, GC

2шт.

4

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

5

86501115

ENGINE MOUNT

1шт.

6

86545777

ANGLE

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

4шт.

10

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

11

9844141

CUP

2шт.

12

9616607

INSULATOR

Isolation Mount

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

14

87499

HEX SOC SCREW,BTN HD, 3/8" - 16 x 7/8"

4шт.

15

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

16

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

2шт.

17

9628503

NUT,3/8"-16, G5

4шт.

87686710

SERVICE KIT

Flex Plate Replacement Kit; Incl Ref 18, 19 And Instructions

1шт.

18

87670983

DISC

Includes Hub And Plate

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

20

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

21

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

22

280589

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

23

9844553

INSULATOR

Mount

1шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

25

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

4шт.

26

86567313

SUPPORT

1шт.

27

719922

WASHER,M17 x 63 x 1/4" Thk

1шт.

28

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

30

86567198

BRACKET

1шт.

32

86567000

COVER

Housing Cover

1шт.

33

86606008

ANGLE

1шт.

34

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

1шт.
