Запчасти Case IH SR150 (82.300.AC[01]) - MANUAL COUPLER (SR130,SR150) (82) - FRONT LOADER & BUCKET

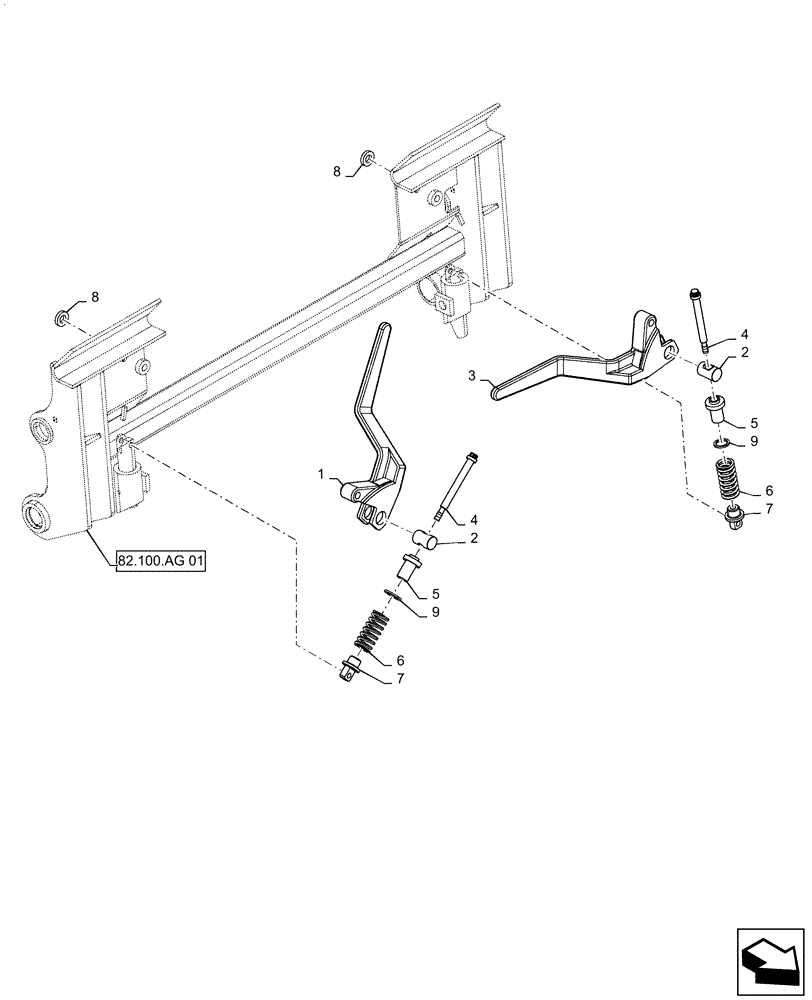

Схема запчастей Case IH SR150 - (82.300.AC[01]) - MANUAL COUPLER (SR130,SR150) (82) - FRONT LOADER & BUCKET
3
7
4
4
1
8
9
8
5
2
6
7
82.100.ag 01
9
5
2
6

Артикул

Название

Примечание

Количество

1

86633196

HANDLE

RH Painted, CE Gray

1шт.

2

9829733

PIN,25.4mm OD x 39mm L

2шт.

3

86633195

HANDLE

LH Painted, CE Gray

1шт.

4

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.

5

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

Spring

2шт.

6

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

7

87579303

PIN,34.92mm OD x 43.6mm L

NH

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

9

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing

2шт.

Выбрано товаров: 9
