Запчасти Case IH SR150 (82.100.AF) - BOOM (82) - FRONT LOADER & BUCKET

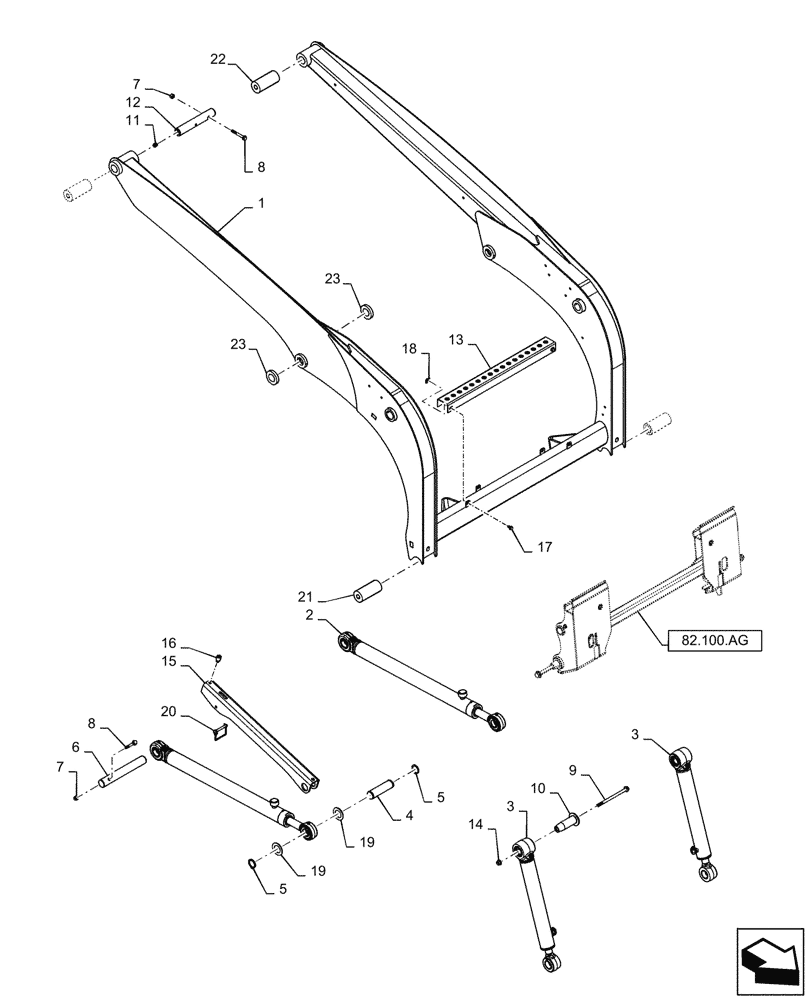

Схема запчастей Case IH SR150 - (82.100.AF) - BOOM (82) - FRONT LOADER & BUCKET
82.100.ag
8
16
15
21
11
13
20
4
2
5
22
18
7
1
14
19
17
19
3
23
10
5
7
3
8
12
9
6
23

Артикул

Название

Примечание

Количество

1

84391750

KIT

Loader Radial Arm, Kit, Tan

1шт.

2

84231616

Hyd. Lift

CYLINDER,Double Acting, 34.9mm Rod, 645mm Stroke

2шт.

3

84231835

Bucket

CYLINDER,Double Acting, 31.7mm Rod, 370.1mm Stroke

2шт.

4

84248603

PIN,38.15mm OD x 137.9mm L

2шт.

5

86632531

SNAP RING,#150, Ext

Circlip, Ext. Hvy.

4шт.

6

84308025

Chassis to Lift Cyl.

PIN,38.15mm OD x 280mm L

4шт.

7

86512554

NUT,M10 x 1.5, Cl 10

4шт.

8

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

9

84256800

FLANGE BOLT,Hex, M12 x 190mm, Cl 10.9

2шт.

10

84319706

Boom to Tip Cyl.

PIN,34mm OD x 118.5mm L

2шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

12

84341462

Boom Chassis

PIN,38.15mm OD x 233.5mm L

2шт.

13

84474239

Step, Cross Member, Tan

STEP

1шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

15

84259642

Channel, Safety Red

PLATE

1шт.

16

85802403

PLUG,13mm OD

Pad, Loader Prop

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

18

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

19

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

4шт.

20

84467349

Snapper

PIN,9.53mm OD x 76.2mm L

1шт.

21

87057436

HUB

126mm OAL

2шт.

22

84251365

Loader Arm Pivot

TUBE

2шт.

23

86521978

HUB,38.23mm ID x 69.85mm OD x 12.7mm L

4шт.

Выбрано товаров: 23
