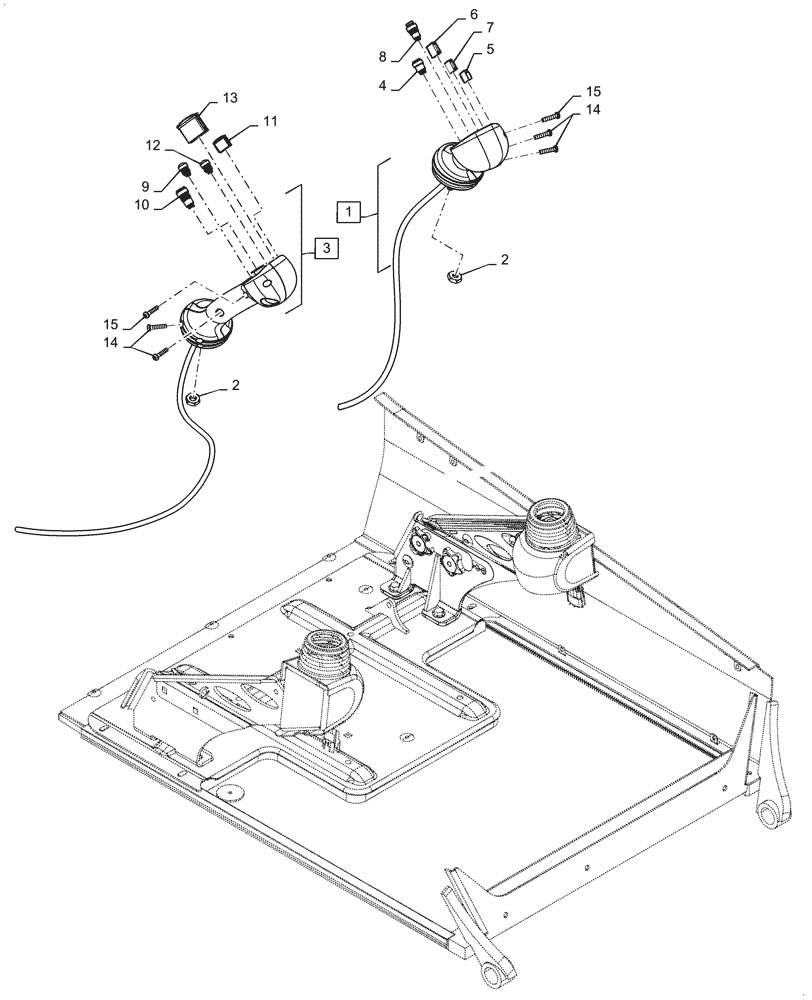

Запчасти Case IH SR150 (55.512.CL[06]) - LEVEL 350 HANDLE GRIPS, E-H CONTROLS, W/ MULTI-FUNCTION ELEC CTRL (55) - ELECTRICAL SYSTEMS

1

84280472

Case Level 350 LH, No 2nd Aux Hyd

HANDLE GRIP

1шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201277

Case Level 350/550 Common RH

HANDLE GRIP

1шт.

4

87673088

SWITCH

2-Speed

1шт.

5

84398133

SWITCH

Multi-Function 4

1шт.

6

84296547

SWITCH

Multi-Function 3

1шт.

7

84296546

SWITCH

Multi-Function 2

1шт.

8

84296542

SWITCH ASSY

Horn

1шт.

9

87673089

SWITCH

Ride Control

1шт.

10

87630127

SWITCH

Park Brake

1шт.

11

84296545

SWITCH

Multi-Function 1

1шт.

12

84296543

SWITCH

Float

1шт.

13

84282677

SWITCH

Proportional Hyd W/ Detent Dual

1шт.

13

84296544

SWITCH

Proportional Hyd W/ Detent Single (Optional)

1шт.

13

84537211

SWITCH

Proportional Hyd W/O Detent Single (Optional)

1шт.

13

84528445

Proportional Hyd W/O Detent Dual (Optional)

SWITCH

1шт.

14

87487160

SCREW,Torx, Pan HD, #6 - 19 x 5/8"

Incl in 1 and 3

12шт.

15

87487159

SCREW,BTN HD, #10 - 32 x 5/8"

Incl in 1 and 3

2шт.
