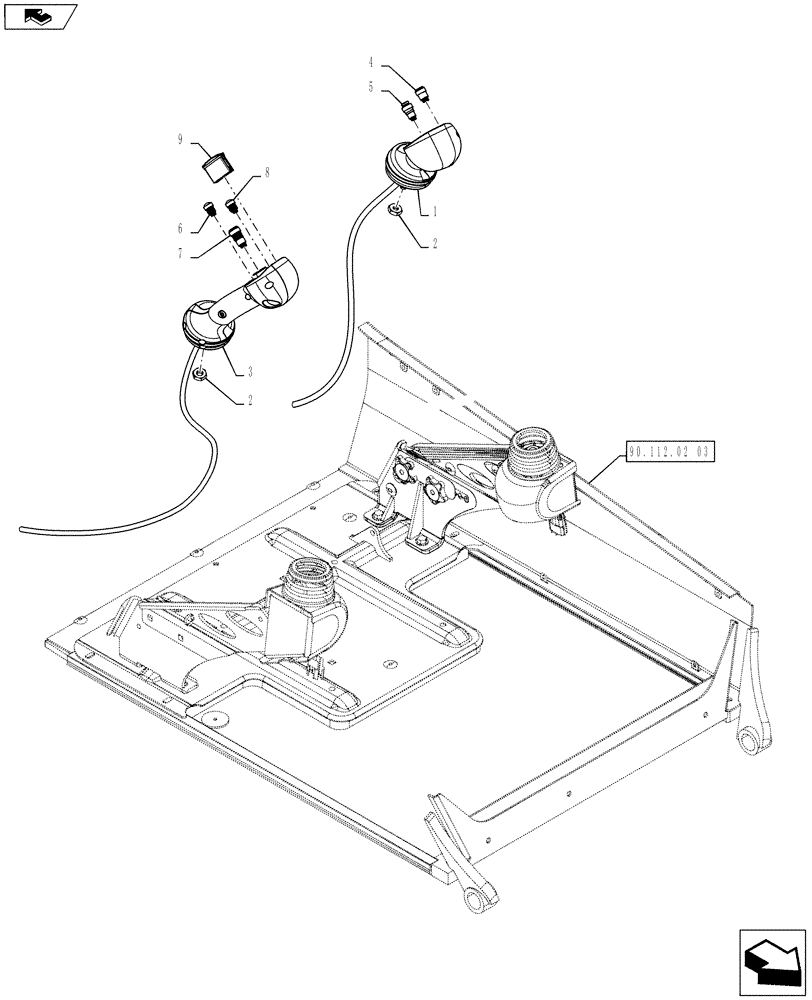

Запчасти Case IH SR150 (55.512.CL[04]) - LEVEL 250 HANDLE GRIPS, E-H CONTROLS, W/O MULTI-FUNCTION ELEC CTRL (55) - ELECTRICAL SYSTEMS

1

84280471

Case Level 250 LH, Assembly, Includes Switches And Buttons

HANDLE GRIP

1шт.

2

9706685

NUT,M12 x 1.75, Cl 8

2шт.

3

84201275

Case Level 250 RH, Assembly, Includes Switches And Buttons

HANDLE GRIP

1шт.

4

84296542

SWITCH ASSY

Horn

1шт.

5

87673088

SWITCH

2-Speed

1шт.

6

87673089

SWITCH

Ride Control

1шт.

7

87630127

SWITCH

Park Brake

1шт.

8

84296543

SWITCH

Float

1шт.

9

84282677

SWITCH

Proportional Hyd W/ Detent Dual

1шт.

9

84296544

SWITCH

Proportional Hyd W/ Detent Single (Optional)

1шт.

9

84537211

SWITCH

Proportional Hyd W/O Detent Single (Optional)

1шт.

9

84528445

Proportional Hyd W/O Detent Dual (Optional)

SWITCH

1шт.
