Запчасти Case IH SR150 (55.408.BE[01]) - COMMON INSTRUMENTS AND ELEC (ALL CASE) (55) - ELECTRICAL SYSTEMS

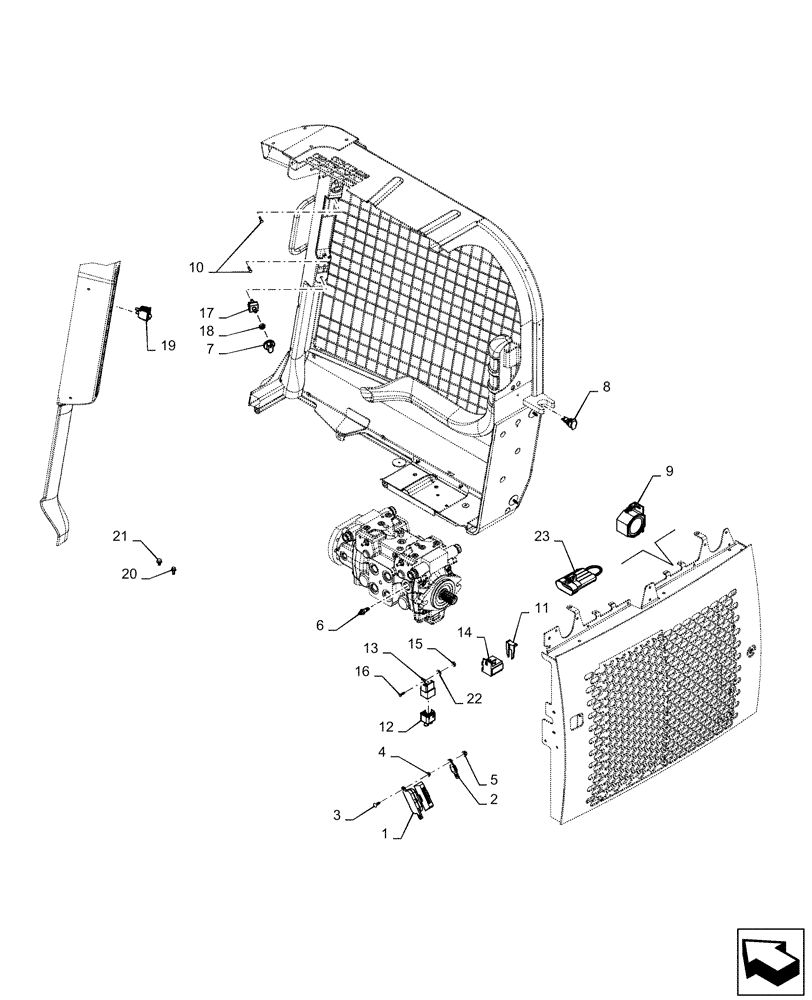

Схема запчастей Case IH SR150 - (55.408.BE[01]) - COMMON INSTRUMENTS AND ELEC (ALL CASE) (55) - ELECTRICAL SYSTEMS
14
15
8
3
18
22
21
11
1
10
4
6
19
13
20
7
23
2
16
12
17
5
9

Артикул

Название

Примечание

Количество

1

440038A1

JUNCTION BLOCK

Bussmann Fuse Block

1шт.

2

87472238

FUSE,60A, Blade

1шт.

3

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

87688409

TEMPERATURE SENDER,M10 x 1.0

Hydraulic

1шт.

7

86729670

KNOB

1.8" OD, Temperature

1шт.

8

82002966

POWER SOCKET,M18 x 1

AUX

1шт.

9

325258A1

ALARM

Backup Alarm Assembly

1шт.

10

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

11

84352550

Wedge

ELEC CONNECTOR

1шт.

12

84359805

Relay Socket 8W

ELEC CONNECTOR

1шт.

13

84297432

Starter

RELAY,12V, 70A

1шт.

14

NSS

NOT SOLD SEPARAT

Packard Metri-Pack Female 5-Way

1шт.

15

87825

NUT,#10-32

1шт.

16

87308282

SCREW,HWH, #10 - 32 x 3/4"

1шт.

17

86729669

SWITCH

Blower/Light, Years: -14-NOV-12

1шт.

17

47376503

ROTARY SWITCH

Blower/Light, Start Year: 15-NOV-12

1шт.

18

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

19

133714A1

BEACON SWITCH

Rocker, Beacon

1шт.

19

84388282

INDICATOR

High Speed

1шт.

19

87634134

SWITCH

On/Off Rocker, Multifunction Aux

1шт.

20

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

1шт.

21

380426

SCREW,Flng, M6 x 10mm

1шт.

22

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

23

87716447

ELEC CONNECTOR

Cab Door Jumper

1шт.

Выбрано товаров: 26
