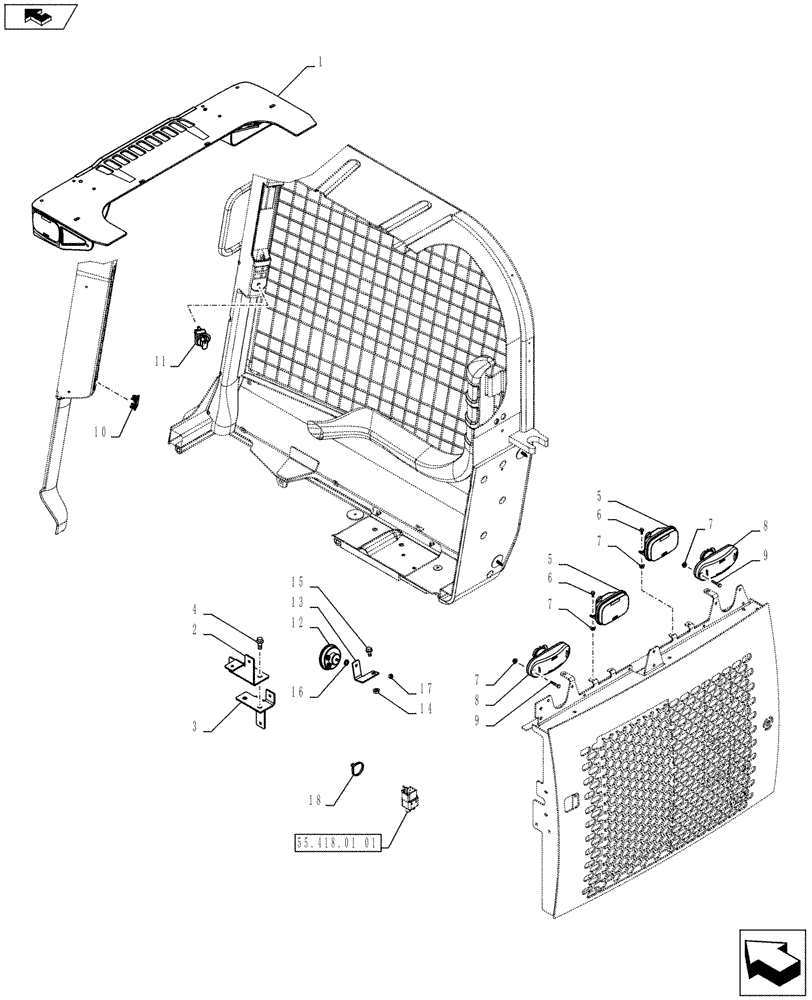

Запчасти Case IH SR150 (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SR130,SR150) (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Light Install 90 degree; See 55.418.02

1шт.

2

84333370

FCI Connector Support

BRACKET, SUPPORTING

1шт.

3

84333371

FCI Connector Support

BRACKET

1шт.

4

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

5

84306337

WORK LAMP,12V, 37.5W, Clear

37.5 W

2шт.

6

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

7

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

8

87627854

LIGHT ASSY.,12V, 27W, Red

Tail, Stop - Incand.

2шт.

9

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

10

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

2шт.

11

84412290

DECAL

Light Switch Wheat

3шт.

12

87714969

HORN

W/Breather

1шт.

13

84331854

Horn Mounting

BRACKET, SUPPORTING

4шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

16

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

6шт.

19

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

(Not Shown) Used with Ref. 14

1шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

(Not Shown) Used with Ref. 14

4шт.

21

86625264

LOCK WASHER,Ext Tooth, M5

(Not Shown) Used with Ref. 5

4шт.

22

84469870

Chassis Harness (Not Shown)

BRACKET

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Tie (Not Shown)

1шт.
