(55.405.CW[02]) - ROAD LIGHTS EU MECH BRAKE SWITCH

Запчасти Case IH SR150 (55.405.CW[02]) - ROAD LIGHTS EU MECH BRAKE SWITCH (55) - ELECTRICAL SYSTEMS

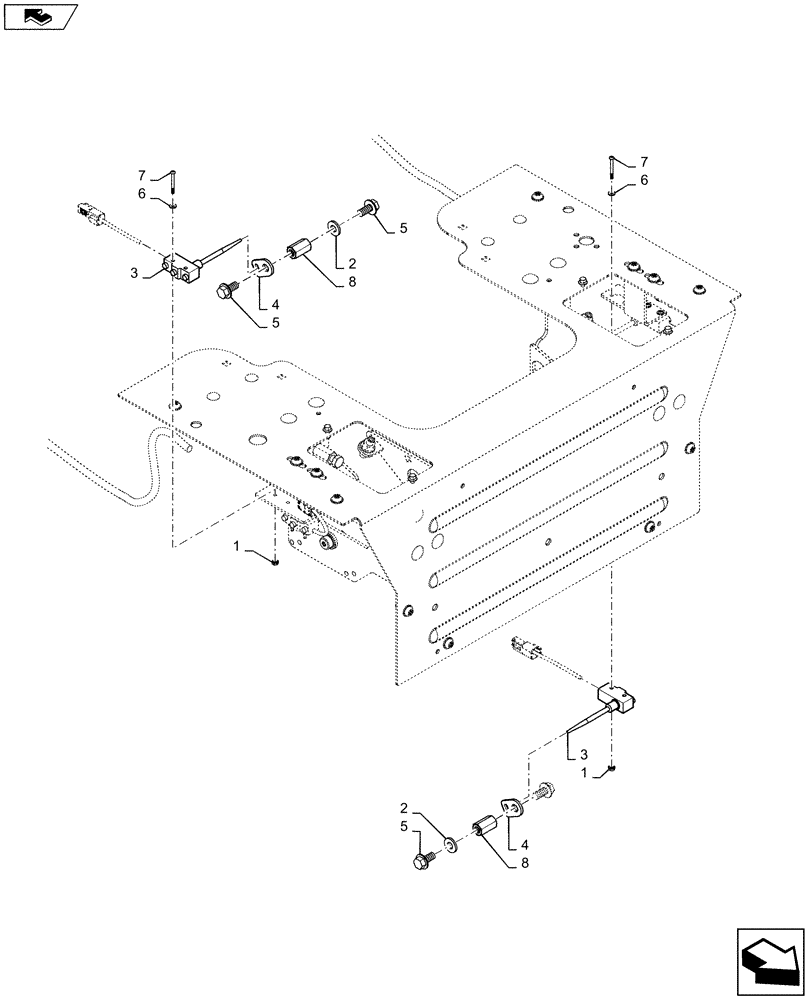

Схема запчастей Case IH SR150 - (55.405.CW[02]) - ROAD LIGHTS EU MECH BRAKE SWITCH (55) - ELECTRICAL SYSTEMS
7
3
4
5
5
8
3
home
2
2
1
6
1
7
4
5
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

280859

NUT,Keps, #6-32

4шт.

2

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

3

47553737

Brake Lights

PROXIMITY SWITCH

2шт.

4

84408932

Brake Lights Trigger

BRACKET

2шт.

5

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

6

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

7

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

4шт.

8

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

2шт.

Выбрано товаров: 8
