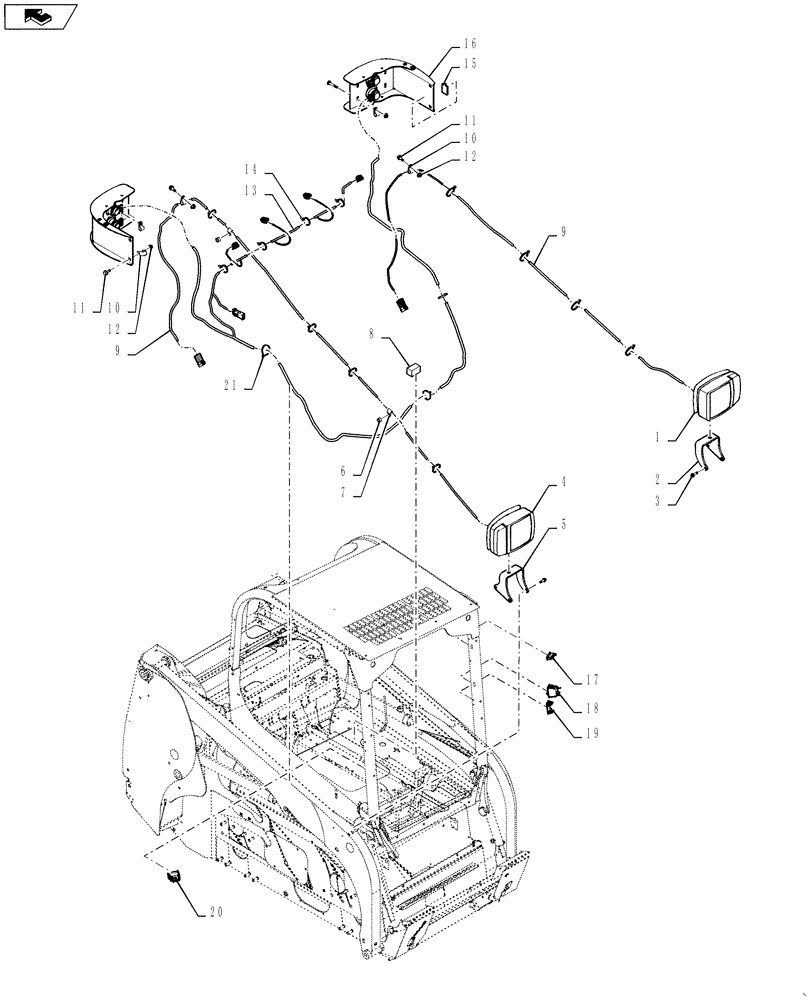

Запчасти Case IH SR150 (55.404.CY[01]) - EU ROAD LIGHTS SM CASE (SR130,SR150) (55) - ELECTRICAL SYSTEMS

1

87572860

LAMP

Light Combination LH, Incl. Ref. 22 & 23

1шт.

2

84354214

Light LH

BRACKET

1шт.

3

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

6шт.

4

87572859

LAMP

Light Combination RH, Incl. Ref. 22 & 23

1шт.

5

84354216

Light RH

BRACKET

1шт.

6

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

3шт.

7

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

8

9821783

FLASHER UNIT

1шт.

9

84262453

FE Boom Sm

WIRE HARNESS

2шт.

10

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

8шт.

11

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

13

84383307

Rear Road Jumper Case

WIRE HARNESS

1шт.

14

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assy

4шт.

15

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

16

84384439

Work, Case Radial

REVERSING LAMP ASSY

1шт.

17

86604657

INDICATOR, TURN SIGN

1шт.

18

87634133

SWITCH

Rocker, Hazard Lights

1шт.

19

84263153

SWITCH

Rocker, Loader Lockout

1шт.

20

131691A1

ROCKER SWITCH

Rocker

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

9шт.

22

139119A1

BULB,#886, 12V, 50W

Headlamp (Not Shown)

2шт.

23

87642985

BULB,3157, 12V, 26.5W, Clear

Turn Signal (Not Shown)

2шт.
