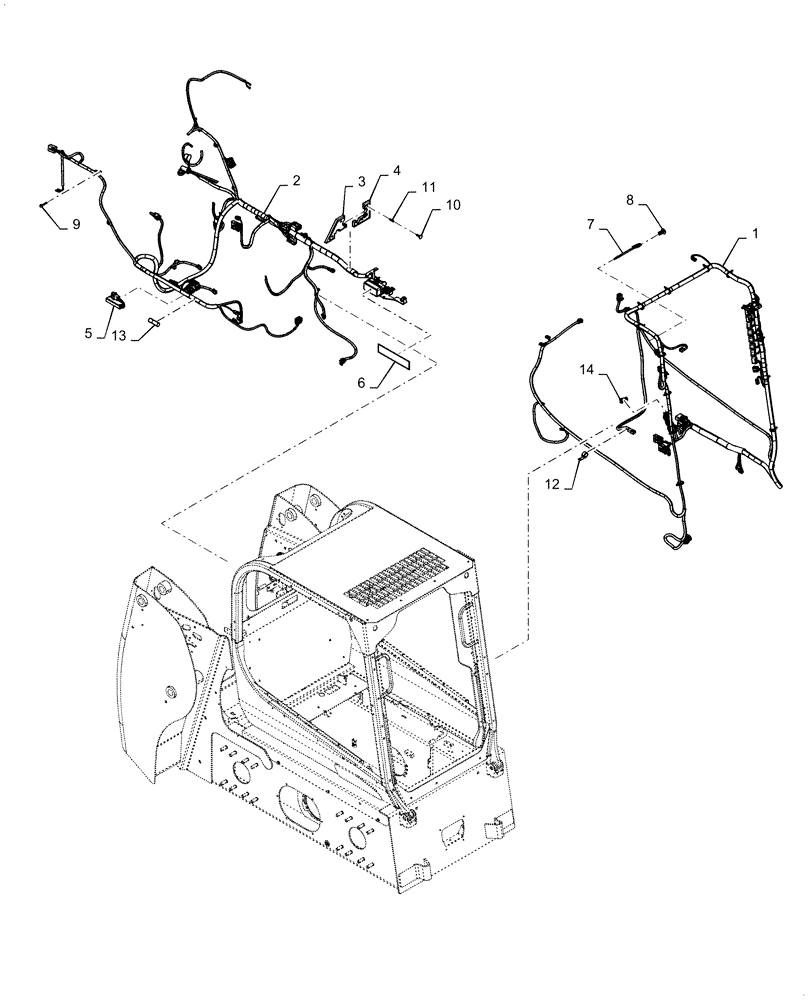

Запчасти Case IH SR150 (55.101.AC[02]) - ELECTRICAL MECH SM OPEN CAB (SR130,SR150) (55) - ELECTRICAL SYSTEMS

1

84423647

Cab, Mechanical Basic, Years: -14-MAR-12

WIRE HARNESS

1шт.

1

84553269

Cab, Mechanical Basic, Years: 15-MAR-12-14-NOV-12

WIRE HARNESS

1шт.

1

47377757

WIRE HARNESS

Cab, Mechanical Basic, Start Year: 15-NOV-12

1шт.

2

84352404

Chassis, Mechanical , Years: -28-FEB-12

WIRE HARNESS

1шт.

2

84544785

Chassis Mechanical , Years: 29-FEB-12-15-APR-12

WIRE HARNESS

1шт.

2

84605454

Chassis Mechanical, Years: 16-APR-12-30-APR-13

WIRE HARNESS

1шт.

2

47377767

Chassis Mechanical, Years: 01-MAY-13-09-SEP-13

WIRE HARNESS

1шт.

2

47523501

Chassis Mechanical, Start Year: 10-SEP-13

WIRE HARNESS

1шт.

3

84323730

Assy, LH, Years: -18-FEB-13

SEAL

1шт.

3

84323728

Assy, LH, Start Year: 19-FEB-13

SEAL

1шт.

4

84323731

Assy, LH, Years: -18-FEB-13

SEAL

1шт.

4

47535374

Assy, LH, Start Year: 19-FEB-13

SEAL

1шт.

5

84131374

MODULE

Driver, PWM, Prop Aux, Years: -14-NOV-12

1шт.

5

47369995

PROXIMITY SWITCH

Driver, PWM, Prop Aux, Years: 15-NOV-12-17-APR-13

1шт.

5

84131374

MODULE

Driver, PWM, Prop Aux, Start Year: 18-APR-13

1шт.

6

84380451

Fuse Box Layout Mech

DECAL

1шт.

7

84420746

CABLE TIE,403.9mm L, Nylon

Tie

10шт.

8

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

10шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

5шт.

10

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

11

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

12

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

13

NSS

NOT SOLD SEPARAT

Double Stided Tape, 25.4mm W x 3mm Thk x 150mm L

1шт.

14

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

1шт.
