Запчасти Case IH SR150 (55.100.DO[03]) - FUSE BOX #2, EH (SR130 & SR150) (55) - ELECTRICAL SYSTEMS

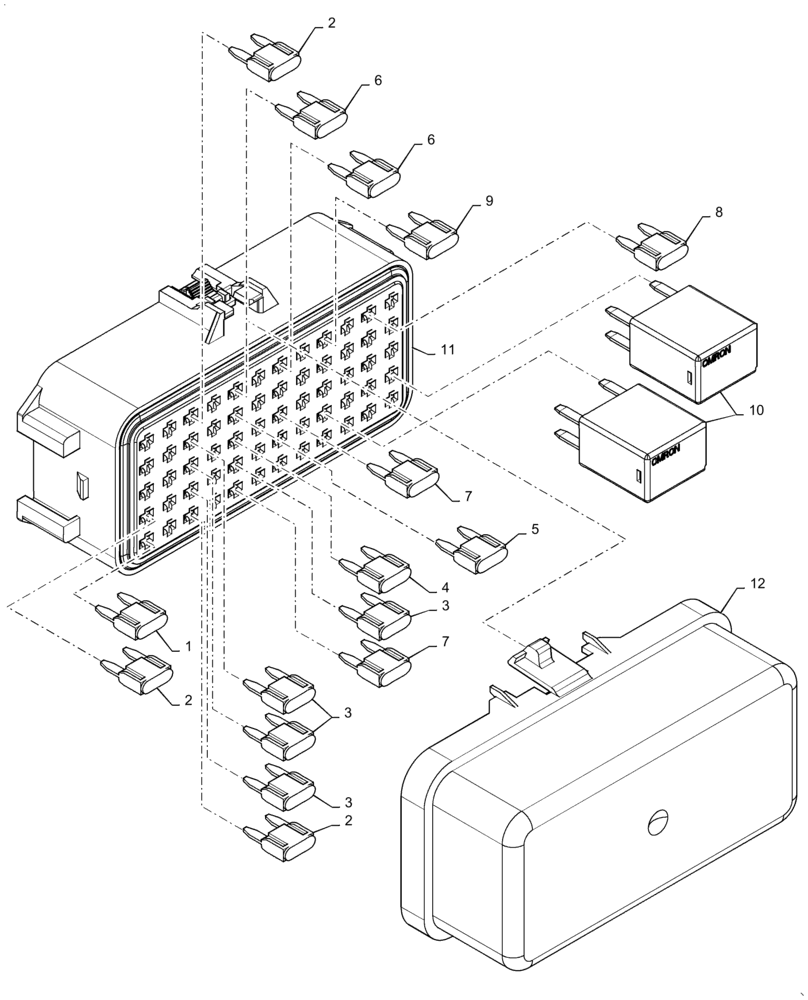

Схема запчастей Case IH SR150 - (55.100.DO[03]) - FUSE BOX #2, EH (SR130 & SR150) (55) - ELECTRICAL SYSTEMS
3
7
10
2
3
7
5
1
12
6
8
9
4
2
3
11
6
2

Артикул

Название

Примечание

Количество

1

121411A1

FUSE,7.5A, Mini, Brown

Brake Lamp, Position: (A1, A2)

1шт.

2

121850A1

FUSE,3A, Mini, Violet

Park Brake, Position: (A3, A4)

1шт.

*

Proportional Auxillary, Position: (B1, B2)

1шт.

*

2 Speed, Position: (E3, E4)

1шт.

3

121851A1

Pump Forward, Position: (B3, B4)

FUSE,4A, Mini, Pink

1шт.

*

Loader, Position: (B5, B6)

1шт.

*

Port/Pilot Interlock, Position: (C3, C4)

1шт.

*

Bucket, Position: (D3, D4)

1шт.

4

121849A1

FUSE,Mini, 2 Amp

Unswitched Battery, Position: (C5, C6)

1шт.

5

121415A1

FUSE,25A, Mini, Clear

Wiper/Washer, Position: (D5, D6)

1шт.

6

121412A1

FUSE,10A, Mini, Red

LH Boom Signal, Position: (E5, E6)

1шт.

*

RH Boom Signal, Position: (E7, E8)

1шт.

7

121410A1

FUSE,5A, Mini, Tan

Pump Reverse, Position: (A5, A6)

1шт.

*

UNSW B+, Position: (C7, C8)

1шт.

8

121413A1

FUSE,15A, Mini, Blue

High Flow Hydraulic Coupler Position: (E11, E12)

1шт.

9

121414A1

FUSE,20A, Mini, Yellow

Brake/Flasher/Chassis Power Position: (E9, E10)

1шт.

10

87655334

RELAY,12V, 35A, Micro

UCM Power, Position: (A7, A9)

1шт.

*

High Flow Option, Position: (A10, A12)

1шт.

11

84255438

FUSE BOX

Connector

1шт.

12

84255450

Cover

FUSE BOX

1шт.

Выбрано товаров: 20
