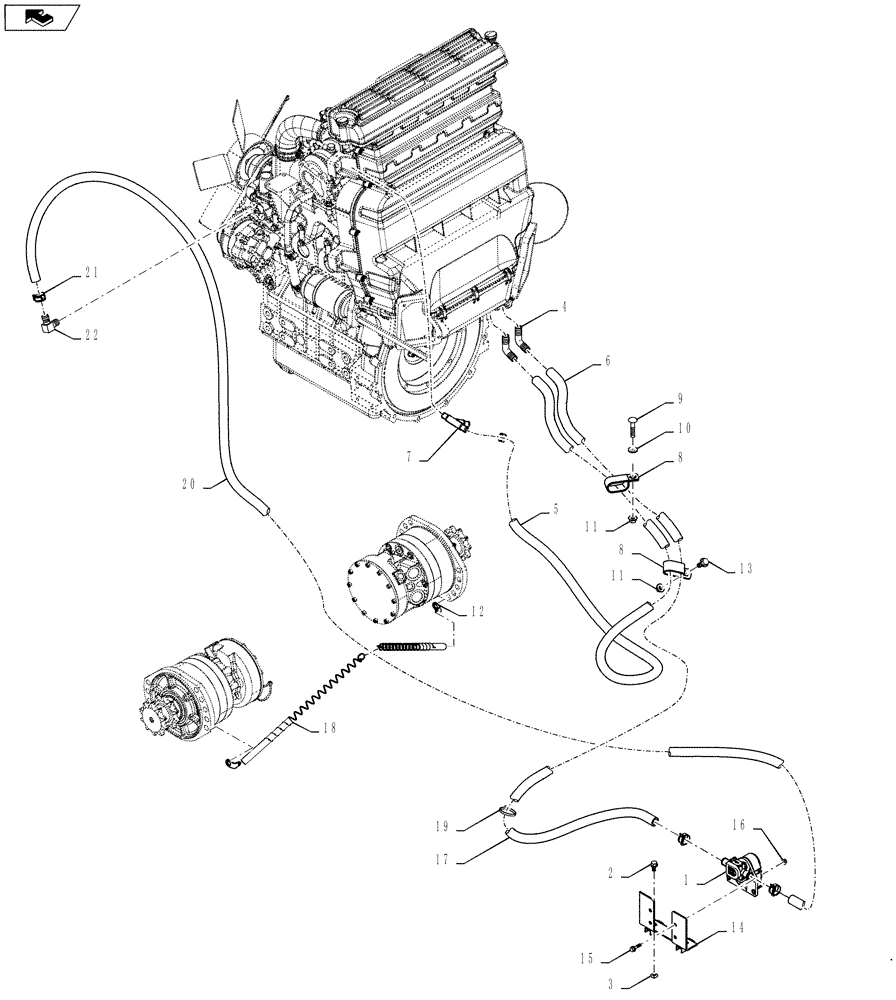

Запчасти Case IH SR150 (50.100.AC[01]) - HEATER PLUMBING BASIC (SR150) (50) - CAB CLIMATE CONTROL

1

87520839

VALVE

Assembly

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

4

127083A1

ELBOW,16mm OD x 17mm OD Bead

2шт.

5

84360983

Heater Return, Guarded

HOSE ASSY.

1шт.

6

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Heater, 2825mm

1шт.

7

86530043

FITTING,5/8” Y-Fitting

Hose

1шт.

8

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

9

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65 X 23.0 X 2.2 HTS

1шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

12

84361522

BRACKET

2шт.

13

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

14

84319469

Water Valve, Gray

BRACKET

1шт.

15

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

17

84360984

Heater Supply, Guarded

HOSE ASSY.

1шт.

18

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Heater Hose

2шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon Tie, 7-8in

3шт.

20

87441006

TUBE,4.6mm ID x 1350mm L

AC Hose

1шт.

21

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Spring

10шт.

22

287644

FITTING,90 Degree, 5/8" Hose x 3/8" NPTF Beaded

1шт.
