Запчасти Case IH SR130 (90.151.AD[05]) - SEAT BELT, 3" LAP BELT, SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

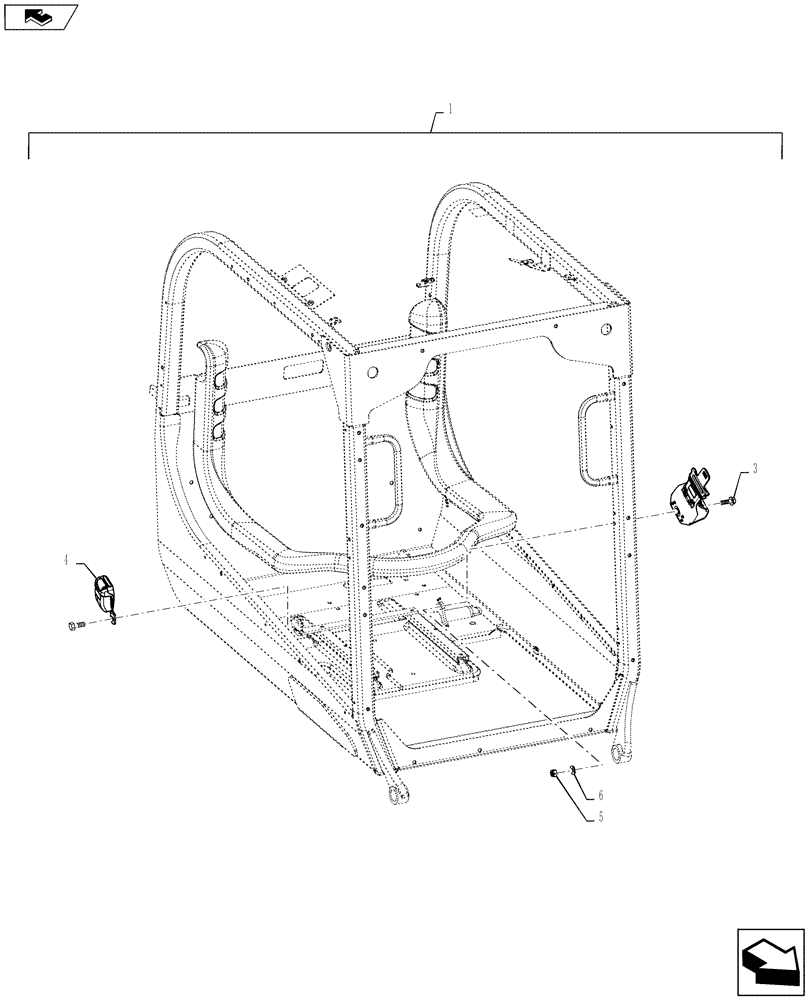

Схема запчастей Case IH SR130 - (90.151.AD[05]) - SEAT BELT, 3" LAP BELT, SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
4
1
5
6

Артикул

Название

Примечание

Количество

1

84306093

KIT

Service, 3" Lap Belt, Incl 2 - 6

1шт.

2

84365636

Installation, 3" Lap Belt

INSTRUCTION

1шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

4

84174267

SEAT BELT

3" Lap Belt

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65mm x 23.0mm x 2.2mm, HTS, BORON, ZN

1шт.

Выбрано товаров: 6
