Запчасти Case IH SR130 (88.100.35[20]) - DIA KIT, SMALL FRAME HAND CONTROL (88) - ACCESSORIES

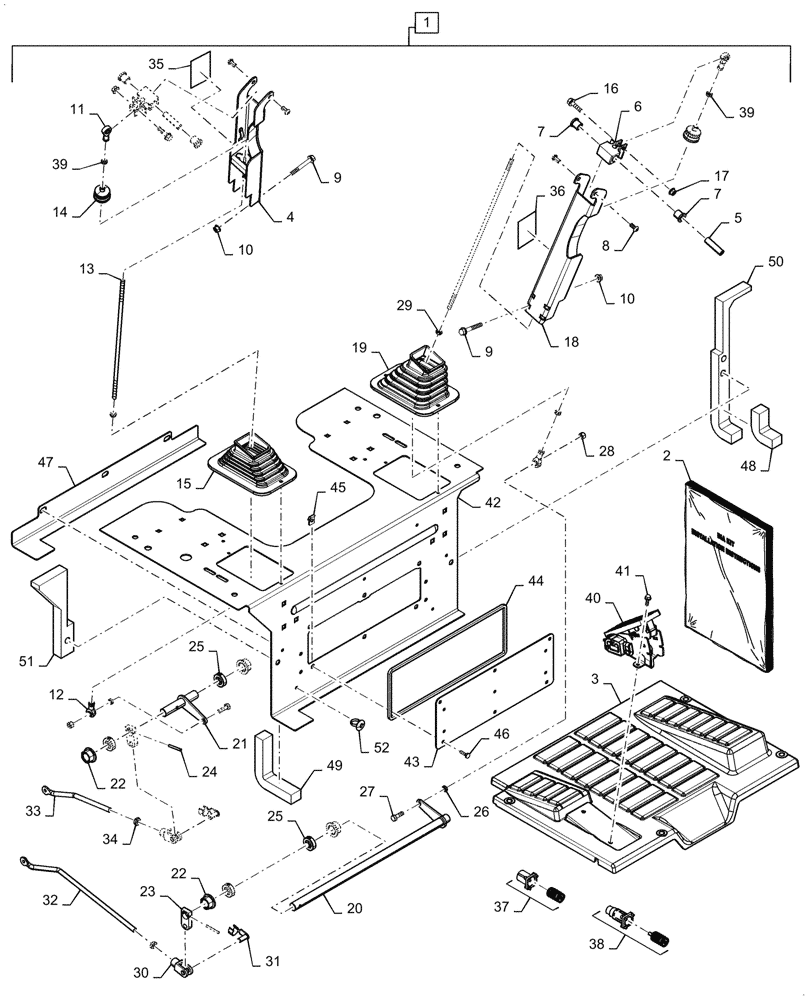

Схема запчастей Case IH SR130 - (88.100.35[20]) - DIA KIT, SMALL FRAME HAND CONTROL (88) - ACCESSORIES
6
21
43
22
35
37
26
10
9
23
22
48
49
47
50
33
2
28
12
1
24
36
44
39
52
34
20
38
11
8
32
16
7
13
18
9
25
30
3
25
10
5
19
31
4
41
39
7
14
51
46
29
42
17
40
27
45
15

Артикул

Название

Примечание

Количество

1

47889988

Hand Controls, Incl 2 - 52

KIT

1шт.

2

47889936

INSTRUCTION

Sheet

1шт.

3

47510135

FLOOR

Plate Assy

1шт.

4

47535433

HANDLE

RH, C-Channel, Gray

1шт.

5

84302564

ROD,12.6mm OD x 50mm L

2шт.

6

84535678

KNUCKLE JOINT

Hand Control

2шт.

7

86013179

FLANGED BEARING,0.502" ID x 0.875" OD x 0.75" W

4шт.

8

84406845

SCREW,BTN HD, M8 x 1.25 x 16mm, Cl 10.9

4шт.

9

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

6шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

11

84263144

BALL JOINT,5/16" - 24

2шт.

12

221665

EYE,5/16" - 24

2шт.

13

84300731

THREADED ROD,7.94mm OD x 456mm L

2шт.

14

84201371

BOOT

Control Rod

2шт.

15

84339565

BOOT

RH, Control Handle

1шт.

16

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

17

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

18

47535435

HANDLE

LH, C-Channel, Gray

1шт.

19

84339566

BOOT

LH, Control Handle

1шт.

20

84299773

CONTROL SHAFT

Boom

1шт.

21

84299785

CONTROL SHAFT

Bucket

1шт.

22

228500

BUSHING,19.07mm ID x 24.69mm OD x 15.88mm L

4шт.

23

84561937

PLATE

Hand Control Ear

2шт.

24

856800

GROOVED PIN,4.76mm OD x 38.1mm L

2шт.

25

84291866

RETAINER COLLAR,19.05mm ID x 31.75mm OD x 9.53mm W, Incl Set Screw

4шт.

26

87360034

SPACER,8.48mm ID x 12.7mm OD x 3.5mm L

2шт.

27

280483

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

2шт.

28

87034527

LOCK NUT,Prev Torque, 5/16" - 24, Type Non-Directional

2шт.

29

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

30

84299261

CLEVIS,10mm ID x 20mm L

2шт.

31

84299262

CLEVIS PIN,10mm OD x 20mm L

2шт.

32

84315831

Loader Valve, Boom

ROD

1шт.

33

84315830

Loader Valve, Bucket

ROD

1шт.

34

84221258

THIN NUT,M10 x 1.5, Cl 5

2шт.

35

84353772

DECAL

RH, NH Level 250

1шт.

36

84353762

DECAL

LH NH Level 250

1шт.

37

84386278

KIT

Hand Boom Spring

1шт.

38

84386277

KIT

Hand Bucket Spring

1шт.

39

87034513

JAM NUT,5/16" - 24, LH Thd, 0.195" High, Gr 5

2шт.

40

47414005

PEDAL

Foot Throttle W/ Sensor

1шт.

41

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

42

47969227

Removable Heel

PLATE

1шт.

43

47921024

PLATE,140mm W x 378mm L x 2.67mm Thk

Heel Cover, Gray

1шт.

44

47874049

Cut to Length, 1015mm

SEALING STRIP,Bulk, Vinyl Foam Tape, 6.4mm Thk

1шт.

45

86625073

SPRING NUT,M6 x 1

6шт.

46

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

6шт.

47

47628122

ANGLE

Heel Plate, Gray

1шт.

48

47869632

FOAM INSULATION

Floor Plate Angle

1шт.

49

47917812

FOAM INSULATION,215.7mm L x 31.8mm W x 25.4mm Thk

Floor Plate Angle

1шт.

50

47914859

LH Heel Plate

FOAM INSULATION

1шт.

51

84372931

FOAM

RH Heel Plate

1шт.

52

378884A2

STRAP,254mm L

2шт.

Выбрано товаров: 52
