(82.300.AC) - MANUAL COUPLER

Запчасти Case IH SR130 (82.300.AC) - MANUAL COUPLER (82) - FRONT LOADER & BUCKET

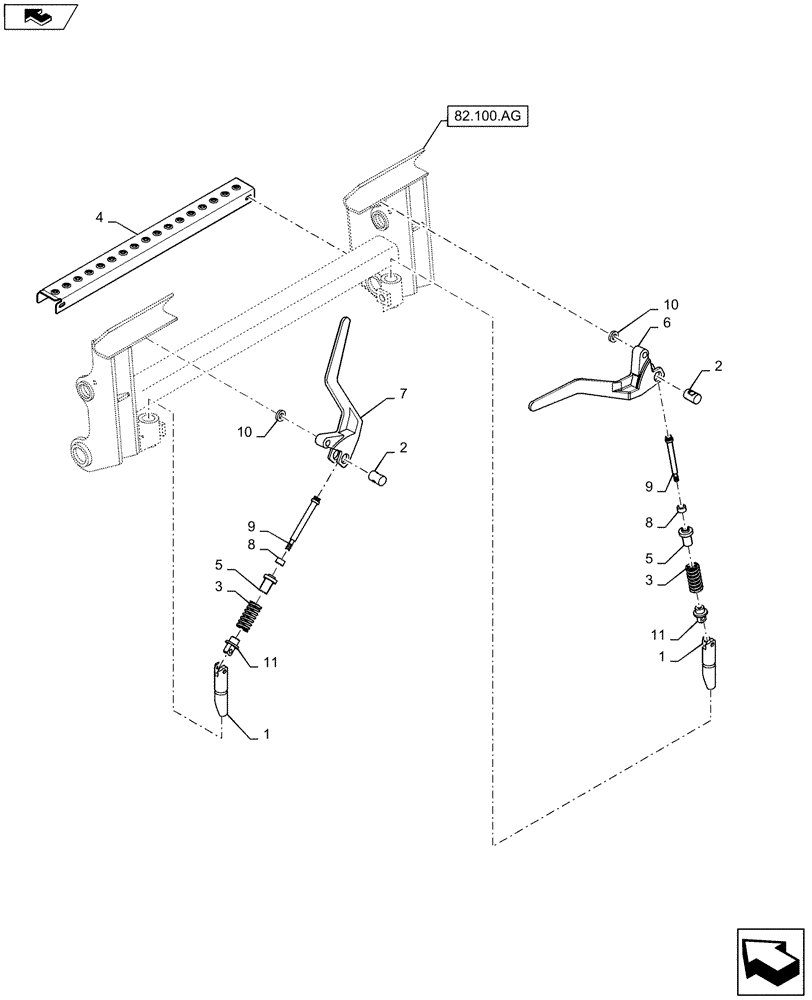

Схема запчастей Case IH SR130 - (82.300.AC) - MANUAL COUPLER (82) - FRONT LOADER & BUCKET
5
10
8
3
8
5
11
2
82.100.ag
1
10
9
11
home
3
7
6
4
2
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87758365

PIN,31.75mm OD x 142.3mm L

Coupler Latch

2шт.

2

9829733

PIN,25.4mm OD x 39mm L

Manual Handle

2шт.

3

84218843

COMPRESSION SPRING,36.6mm OD x 101.6mm L

2шт.

4

84474239

Cross Member

STEP

1шт.

5

86610166

GUIDE,13.5mm ID x 22mm OD x 46.6mm L

Spring

2шт.

6

86633196

HANDLE

RH

1шт.

7

86633195

HANDLE

LH

1шт.

8

87412041

SPACER,13.88mm ID x 21.34mm OD x 12mm L

Bushing

2шт.

9

87533223

12 PT SCREW,3/8" - 16 x 5", Gr 8

2шт.

10

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

2шт.

11

87579303

PIN,34.92mm OD x 43.6mm L

Coupler

2шт.
