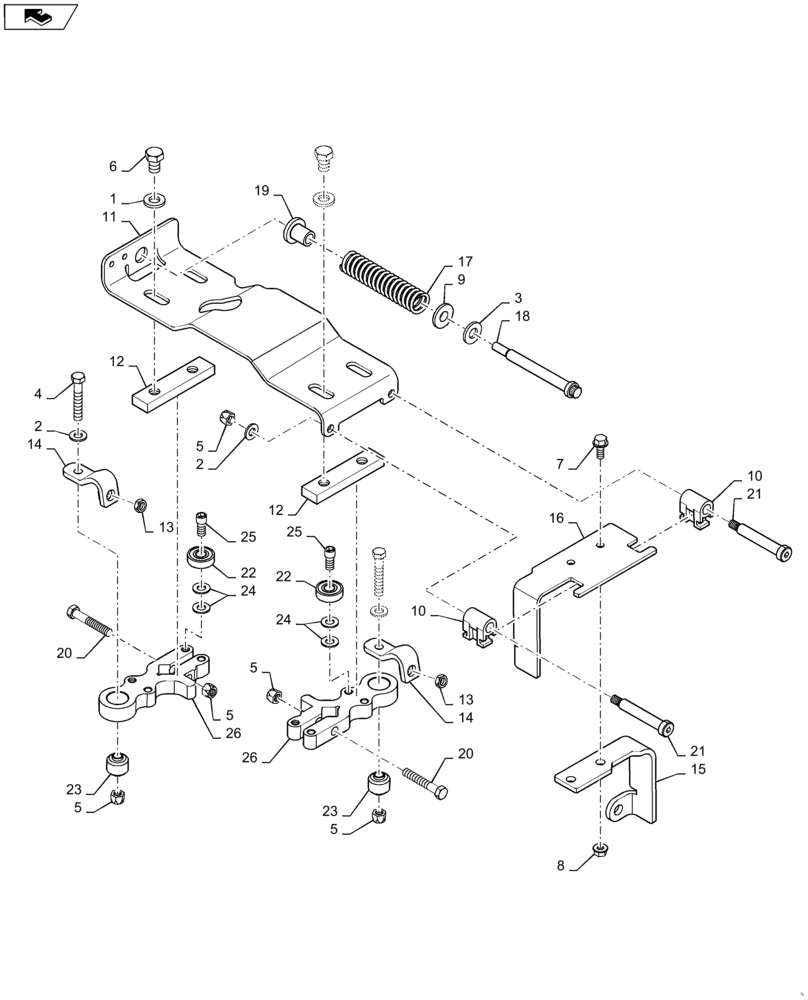

Запчасти Case IH SR130 (29.200.AM[04]) - MANUAL CENTERING, FOOT CONTROLS - 04-FEB-2015 AND BEFORE (29) - HYDROSTATIC DRIVE

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

2

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

3

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

4

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

5

88902

NUT,3/8"-16

6шт.

6

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Manual Control Link

4шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Manual Pump Centering

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Manual Centering

2шт.

9

9827779

BUSHING,13.5mm ID x 31.75mm OD x 8.5mm L

13.5mm x 31.75mm

1шт.

10

84181774

GUIDE

Spring Lock

2шт.

11

84280632

Manual Pump Centering

PLATE

1шт.

12

87541049

BLOCK

Support

2шт.

13

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

Jam, 3/8" - 24, Grade 5, ZND

2шт.

14

84333092

Manual Control Link

CLEVIS

2шт.

15

84344072

Manual Pump Support, RH

PLATE

1шт.

16

84344074

Manual Pump Support, LH

PLATE

1шт.

17

84370965

COMPRESSION SPRING,29.91mm OD x 123.8mm L

1шт.

18

86506112

12 PT SCREW,3/8" - 16 x 5" L

12pt, 3/8" - 16, Grade 8, ZND

1шт.

19

86535238

HUB,12.75mm ID x 19mm OD x 31mm L

1шт.

20

86575418

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

21

86590883

BOLT,3/8" - 16 x 3-3/8"

Shoulder Hex, 3/8" - 16

2шт.

22

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

4шт.

23

86508667

BUSHING,10.08mm ID x 25.5mm OD x 25.65mm L

2шт.

24

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

8шт.

25

87523716

Socket Head, 3/8" 16 x 3/4", ZND

SCREW,3/8" - 16 x 3/4"

4шт.

26

87545508

Pintle

ARM

2шт.
