(29.200.AI[05]) - HANDLE MOUNTING, E-H CONTROLS

Запчасти Case IH SR130 (29.200.AI[05]) - HANDLE MOUNTING, E-H CONTROLS (29) - HYDROSTATIC DRIVE

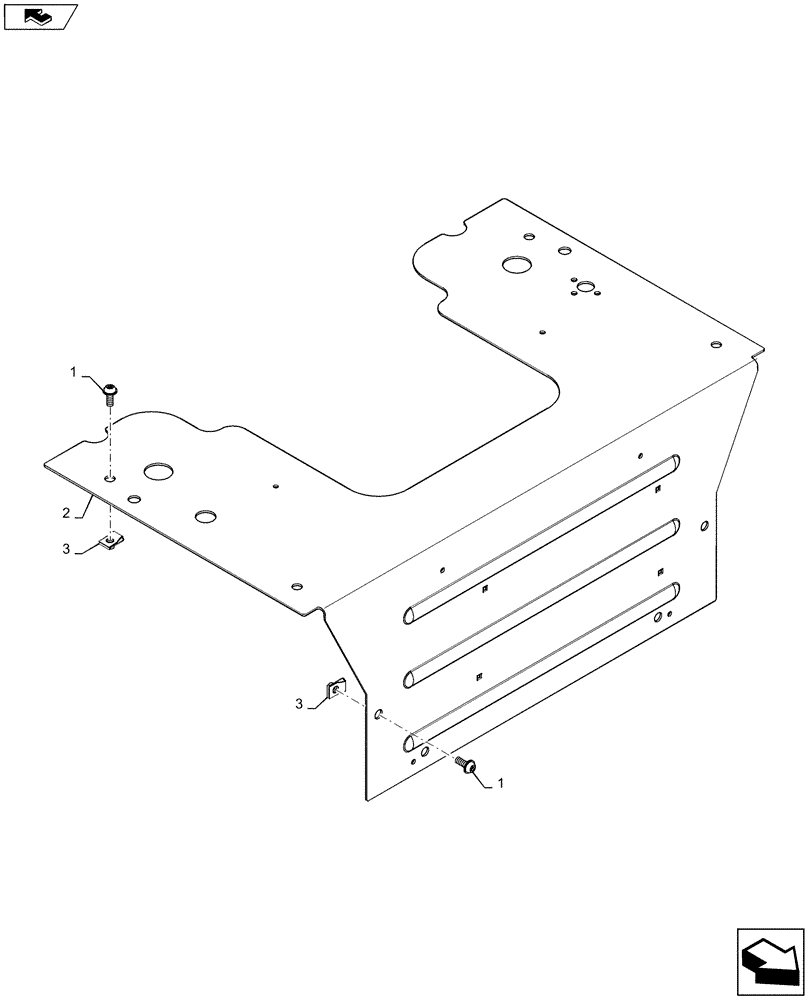

Схема запчастей Case IH SR130 - (29.200.AI[05]) - HANDLE MOUNTING, E-H CONTROLS (29) - HYDROSTATIC DRIVE
1
home
3
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

Torx, M8 x 20mm, Class 8.8, POL

8шт.

2

84373697

Heel, Removable, E-H Controls

PLATE

1шт.

3

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

8шт.

Выбрано товаров: 3
