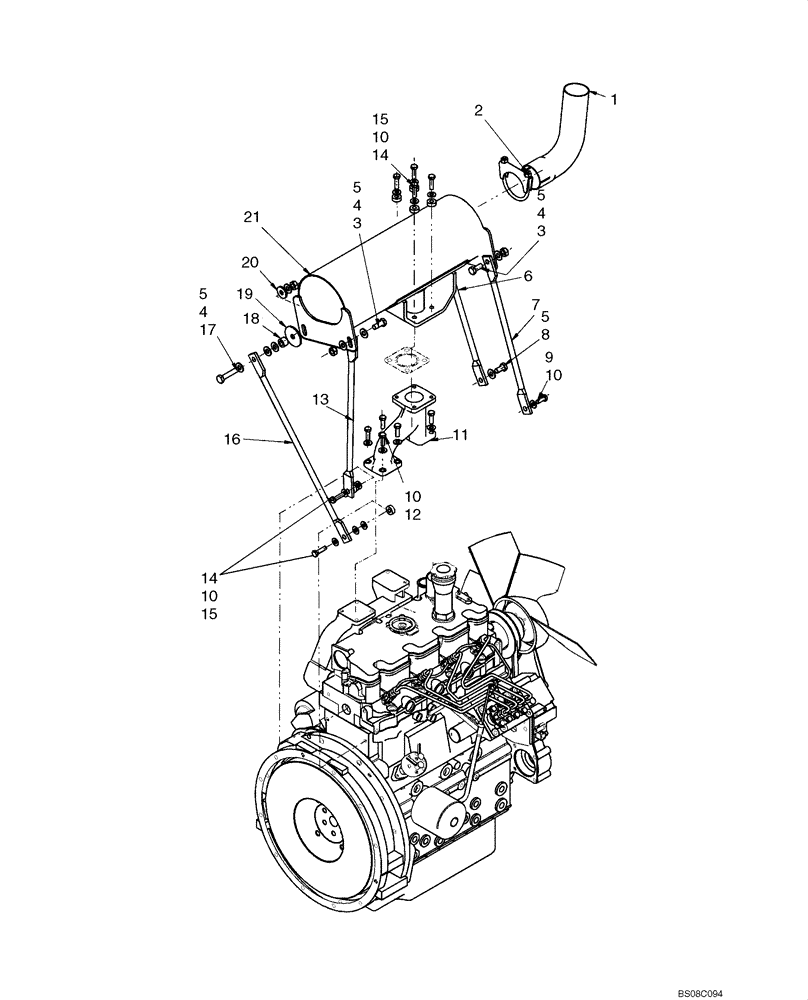

Запчасти Case IH SR130 (10.254.AC[03]) - EXHAUST SYSTEM; IF USED (10) - ENGINE

1

87592051

EXHAUST SYSTEM PIPE,2.25" OD

Exhaust Tube

1шт.

2

87461995

CLAMP,68mm ID, Muffler

Muffler Clamp

1шт.

3

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

4

100016

NUT,M10 x 1.5, Cl 8

4шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

6

87046588

ROD

Muffler Support Rod, 309mm (12 5/32 in.) Center Distance Hole To Hole

1шт.

7

87046587

ROD

Muffler Support Rod, 351mm (13 13/16 in.) Center Distance Hole To Hole

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

11

86614557

MANIFOLD

Exhaust Manifold

1шт.

12

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

13

87356846

MOUNTING ROD

Muffler Support Rod, 393mm (15 1/2 in.) Center Distance Hole To Hole

1шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

15

87606607

SPACER,8.73mm ID x 20.05mm OD x 7.9mm L

6шт.

16

87356847

MOUNTING ROD

Muffler Support Rod, 452mm (17 13/16 in.) Center Distance Hole To Hole

1шт.

17

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

18

87042897

SPACER

1шт.

19

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

1шт.

20

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

1шт.

21

87462107

MUFFLER

1шт.
