Запчасти Case IH SR130 (88.090.10) - DIA KIT, DEBRIS SOFT PARTS (88) - ACCESSORIES

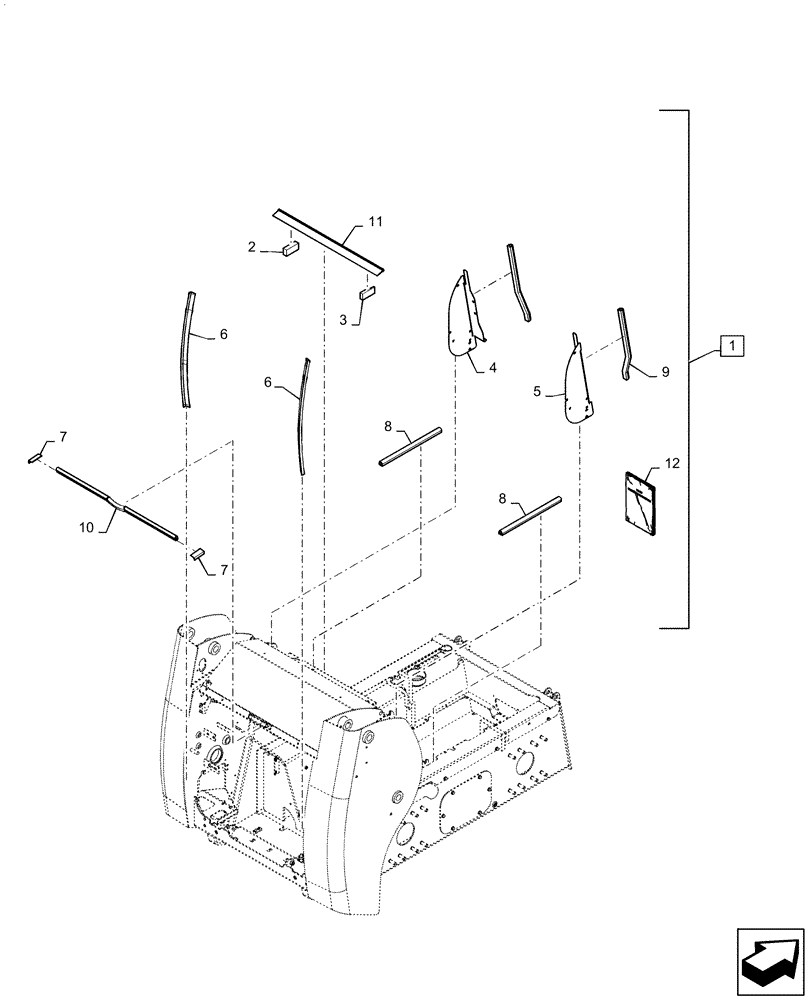

Схема запчастей Case IH SR130 - (88.090.10) - DIA KIT, DEBRIS SOFT PARTS (88) - ACCESSORIES
5
4
10
6
9
1
8
6
2
8
7
12
7
3
11

Артикул

Название

Примечание

Количество

1

47856304

Soft Seals, Debris Reduction, Incl 2 - 12

KIT

1шт.

2

84600487

FOAM INSULATION

LH, Hood

1шт.

3

84600485

FOAM INSULATION

RH, Hood

1шт.

4

47816455

LH, Chassis Perforated

COVER

1шт.

5

47765960

RH, Chassis Vent

COVER

1шт.

6

47729715

L Flap

SEAL

2шт.

7

47729709

L Flap

SEAL

2шт.

8

47729721

RUBBER SEAL,465mm L

2шт.

9

47729722

RUBBER SEAL,545mm L

2шт.

10

47764946

Bulb

SEALING STRIP,877mm L

1шт.

11

47729718

Flap

SEAL

1шт.

12

47856301

INSTRUCTION

Sheet

1шт.

Выбрано товаров: 12
