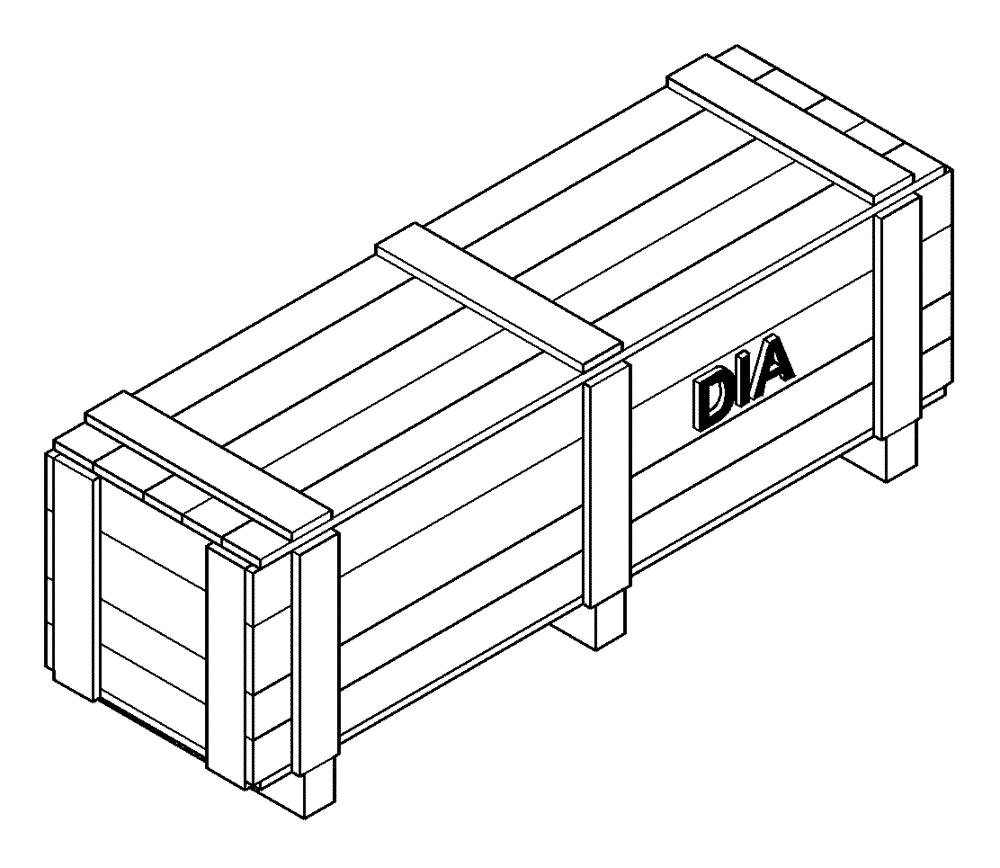

Запчасти Case IH SR130 (88.055.05[02]) - DIA KIT, EU, ROAD LIGHTS, SMALL FRAME (88) - ACCESSORIES

1

47999856

Incl 2-40

KIT

1шт.

2

48000301

INSTRUCTION

Installation

1шт.

3

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

1шт.

4

131691A1

ROCKER SWITCH

Front & rear Coupler

1шт.

5

280859

NUT,Keps, #6-32

4шт.

6

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

1шт.

7

47553737

PROXIMITY SWITCH

2шт.

8

47570937

SCREW,Cross Pan HD, #6-32 x 1-1/8"

4шт.

9

47821008

Rear, Road Jumper

WIRE HARNESS

1шт.

10

47870827

BRACKET

RR Road Light

2шт.

11

47972152

JUMPER

Harness, Wire, Flasher

1шт.

12

84262453

Boom

WIRE HARNESS

2шт.

13

84263153

SWITCH

Rocker, Loader Lockout

1шт.

14

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

3шт.

15

84354214

LH, Light

BRACKET

1шт.

16

84354216

RH, Light

BRACKET

1шт.

17

84408932

Brake Light Trigger

BRACKET

1шт.

18

84416164

FOAM INSULATION

Upper Chassis

2шт.

19

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

Insulated

3шт.

20

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

21

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

22

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

23

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

24

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

25

86604657

INDICATOR, TURN SIGN

1шт.

26

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

Insulated

2шт.

27

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

28

86639263

BOLT,Hex, M5, Cl 8

1шт.

29

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

6шт.

30

87572859

LAMP

RH, Combination

1шт.

31

87572860

LAMP

LH, Combination

1шт.

32

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

33

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn/SMV

2шт.

34

87634133

SWITCH

Rocker, Hazard Lights

1шт.

35

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

36

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

37

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

38

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

39

9821783

FLASHER UNIT

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

12шт.
