Запчасти Case IH SR130 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

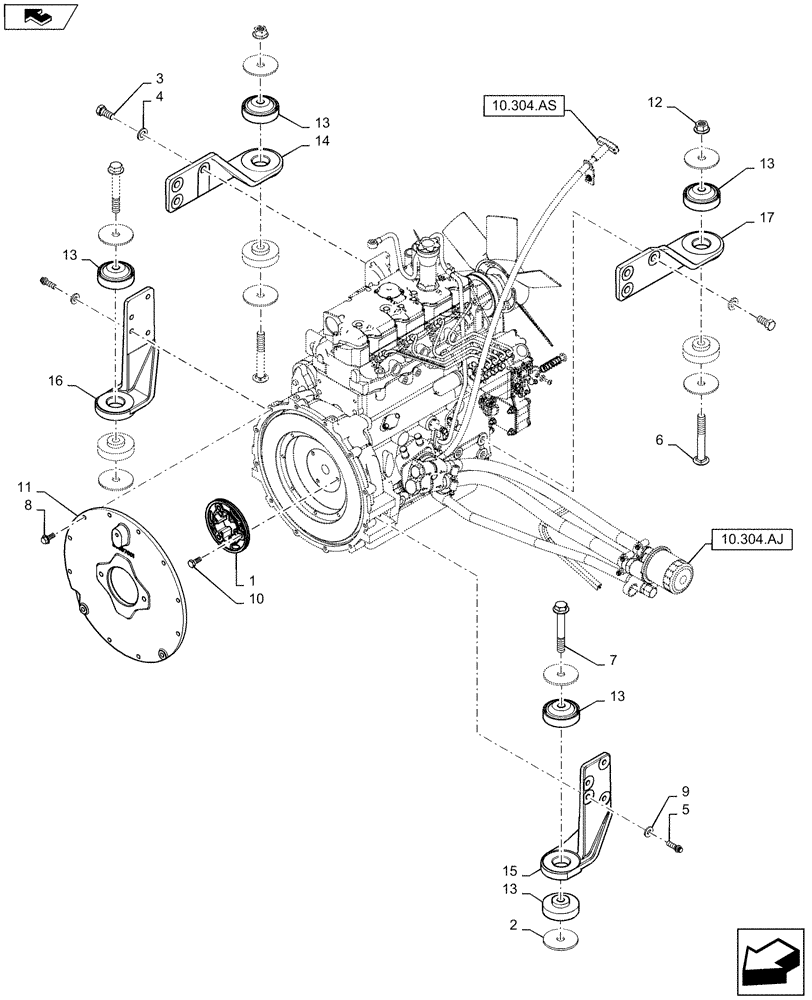

Схема запчастей Case IH SR130 - (10.001.AK) - ENGINE MOUNT (10) - ENGINE
10
13
home
4
13
13
13
13
12
14
1
2
10.304.aj
3
11
16
5
10.304.as
8
15
7
17
9
6

Артикул

Название

Примечание

Количество

1

87713744

Flexible Coupler

PLASTIC

1шт.

2

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

8шт.

3

87357989

BOLT,M14 x 1.5 x 38.9mm OAL, Cl 8.8, Full Thd

6шт.

4

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

6шт.

5

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

4шт.

6

300663

CARRIAGE BOLT,M16 x 2.0 x 120mm, Cl 8.8

2шт.

7

87015923

BOLT,M16 x 125.4mm, Cl 10.9

2шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

10шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

10

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

11

86567000

COVER

Housing

1шт.

12

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

13

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

8шт.

14

84530889

ISM Pump RH

MOUNT

1шт.

15

84530885

ISM Engine LH

MOUNT

1шт.

16

84530883

ISM Engine RH

MOUNT

1шт.

17

84530882

ISM Pump LH

MOUNT

1шт.

Выбрано товаров: 17
