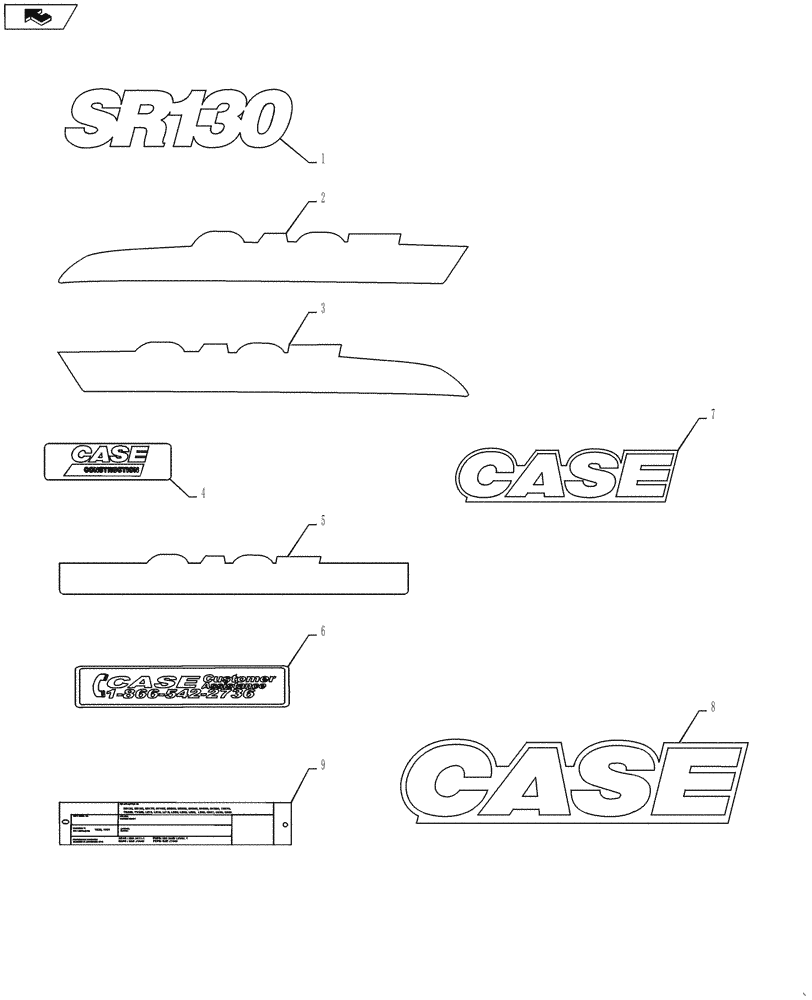

Запчасти Case IH SR130 (90.108.AB) - DECALS (SR130) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84312453

SR130, Model Designation, Black, Years: -25-SEP-11

DECAL

2шт.

1

84493198

SR130, Model Designation, Silver/Fading, Years: 26-SEP-11-02-OCT-16

DECAL

2шт.

1

47918480

SR130, Model Designation, Start Year: 03-OCT-16

DECAL

2шт.

2

84312455

LH, Small, Radial Stripe

DECAL

1шт.

3

84312456

RH, Small, Radial Stripe

DECAL

1шт.

4

84385194

DECAL

Case Logo, Front Chassis

1шт.

5

84350219

Rear, Case Logo, Background

DECAL

1шт.

6

84311902

Customer Assistance, Case

DECAL

1шт.

7

87389374

DECAL

Case Logo, Rear Door, Order With Ref. 5, Years: -25-SEP-11

1шт.

7

84492067

DECAL

Case Impact Logo, Rear Door, Silver/Fading, Years: 26-SEP-11-02-OCT-16

1шт.

7

47919778

EMBLEM

Case Eagle, Start Year: 03-OCT-16

1шт.

8

409828A1

DECAL

Case Logo, Loader Arm, Years: -25-SEP-11

2шт.

8

84492069

DECAL,200mm H x 786mm L

Case Impact Logo, Loader Arm, Silver/Fading, Years: 26-SEP-11-02-OCT-16

2шт.

8

48005121

DECAL

Case Logo Stripes, Years: 03-OCT-16-20-NOV-16

2шт.

8

47920771

Case Impact Logo, Start Year: 21-NOV-16

DECAL

2шт.

9

NSS

NOT SOLD SEPARAT

Rops Model And Approval

1шт.

10

139729A1

DECAL

Lift (Not Shown)

4шт.
