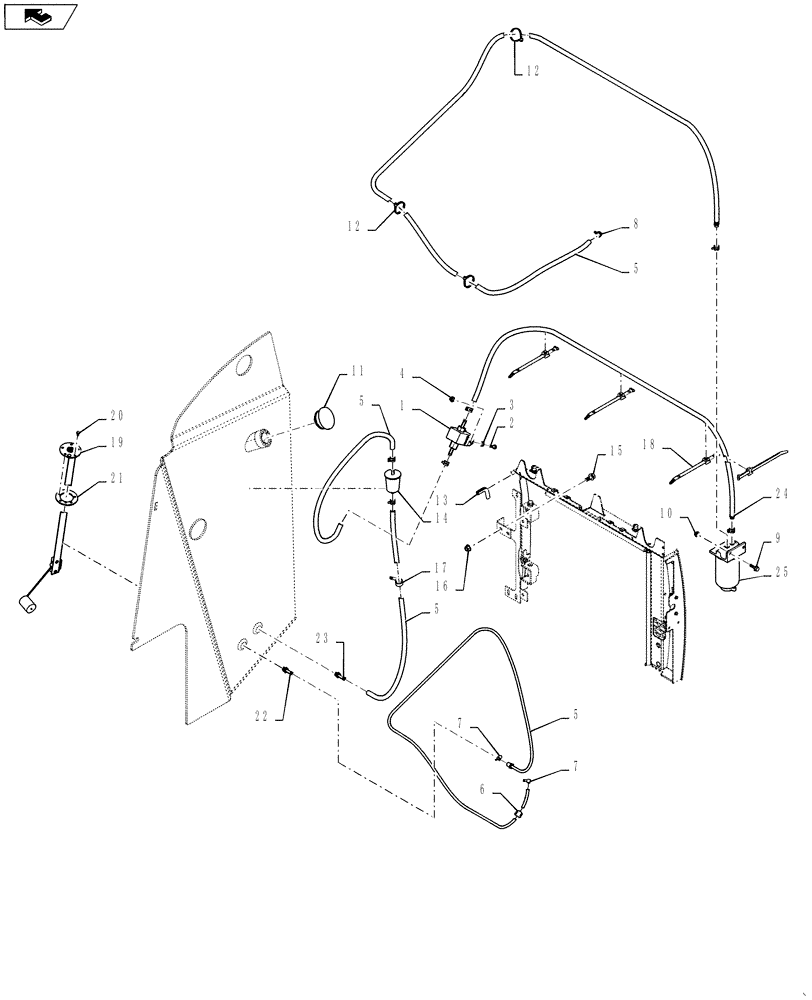

Запчасти Case IH SR130 (10.216.AI) - FUEL SYSTEM ISM (SR130,SR150) (10) - ENGINE

1

84130988

FUEL PUMP,12V, 1.4A

Electric, Lift

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

3

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

M6, 6.85 X 12.75 X 1.8

2шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

5

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

6

291260

HOSE,5/32" ID

1шт.

7

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

8

87436932

CLAMP,13.9mm - 15.5mm, Spring

CTB

8шт.

9

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

10

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

11

H436887

CAP

Fuel

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Nylon Tie, 7-8in

3шт.

13

NSS

NOT SOLD SEPARAT

Edge, Channel, 87702286

1шт.

14

9611973

FUEL FILTER

1шт.

15

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

17

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

J, 25.4mm

1шт.

18

84259663

CABLE TIE,228.6mm L, Nylon, Black

Tie

4шт.

19

528359R4

GASKET,3.05mm Thk

1шт.

20

281050

SELF-TAP SCREW,#10-24 x 15.44mm OAL

5шт.

21

84284998

Fuel Level, Swing Arm

SENSOR

1шт.

22

223593

FITTING,1/4" NPTF x 3/16" Hose Barb

1шт.

23

84193282

5/16 Barb, Hose

FITTING,3/8" NPTF x 5/16" Hose Barb

1шт.

24

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

Assembly

2шт.

25

84299977

ELEMENT

Fuel, Door

1шт.
