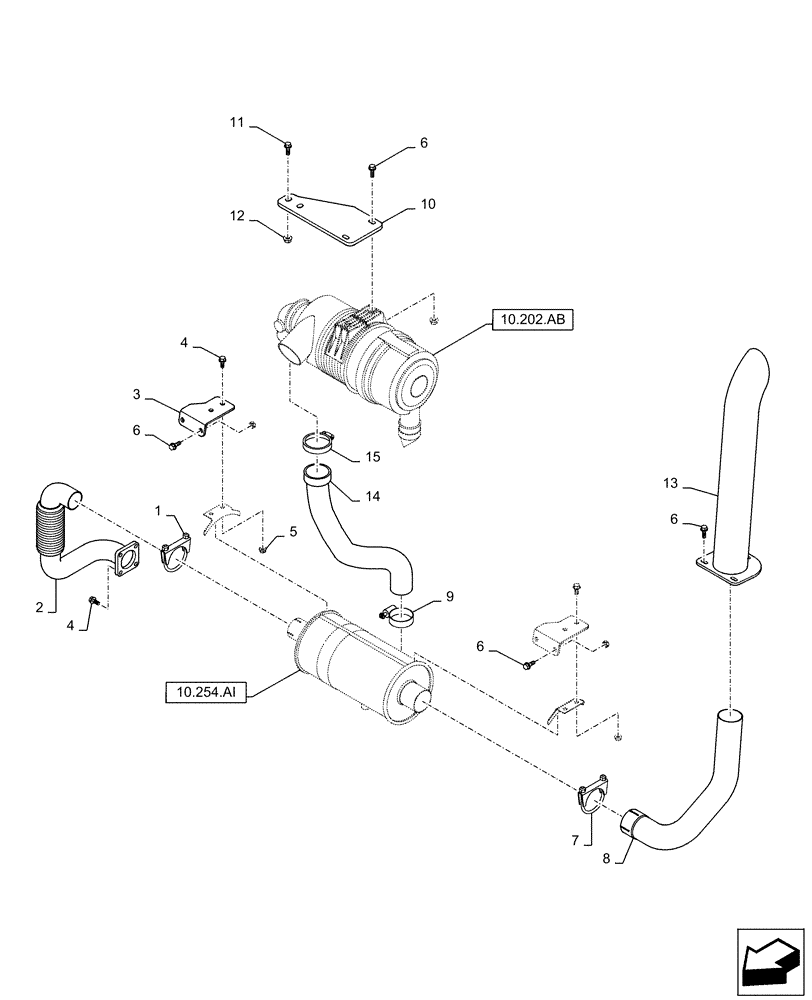

Запчасти Case IH SR130 (10.202.AD) - ENGINE, EXHAUST SYSTEM ISM 2L NA (SR130) (10) - ENGINE

1

84588569

CLAMP,54mm ID, Muffler

1шт.

2

84287170

AIR INTAKE TUBE

Flexible Exhaust

1шт.

3

84308153

Muffler

MOUNTING PLATE

2шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

6

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

7

47541188

CLAMP,68mm ID, Muffler

Muffler

1шт.

8

84287178

AIR INTAKE TUBE

Exhaust Tailpipe

1шт.

9

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

1шт.

10

84299811

Air Cleaner

BRACKET

1шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

84495949

EXTENSION

Exhaust Stack

1шт.

14

84307966

Air Cleaner

A/C HOSE

1шт.

15

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.
