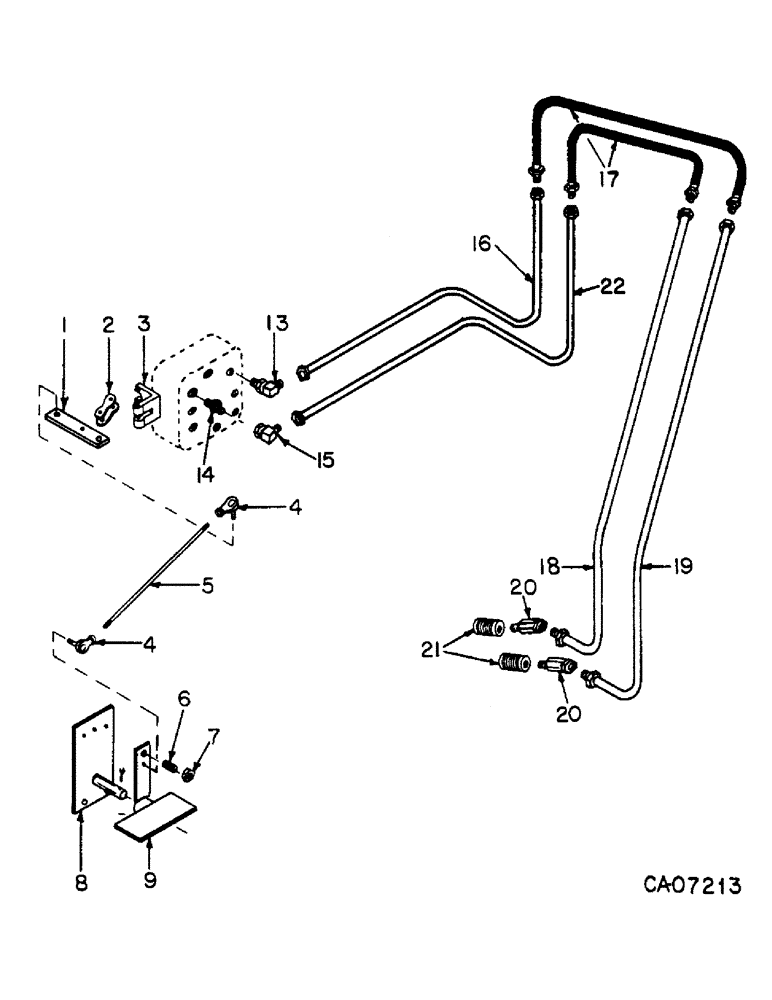

Запчасти Case IH 4155 (10-06) - HYDRAULICS, AUXILIARY HYDRAULICS AND FRONT MOUNT (07) - HYDRAULICS

1

79481C1

HANDLE

1шт.

2

587372R91

CONNECTING LINK

LINK, #2050 double pitch connecting

1шт.

3

79462C1

MOUNT, pivot

1шт.

79463C1

PIN, pivot

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4-NF x 3/4 type 5

2шт.

4

72212C1

END ASSY.

END, rod

2шт.

120368

NUT,5/16"-24, G5

2шт.

5

79482C1

ROD, control

1шт.

120368

NUT,5/16"-24, G5

2шт.

6

79483C1

PLUNGER, detent

1шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

8

79484C1

PIVOT, pedal

1шт.

103376

PIN

3/32 x 1-1/2 pln cot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

366112R1

WASHER

.781 x 1.250 x .105

1шт.

9

79485C1

PEDAL, foot

1шт.

13

673391R1

ELBOW UNION,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

ELBOW, C-Z hyd fld adj 3/4 to 5/8 90D

1шт.

14

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 sht

1шт.

15

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

16

79486C1

TUBE ASSY, inside

1шт.

17

79435C1

HOSE ASSY

2шт.

18

79487C1

TUBE ASSY, inside 0.75" OD, 70-5" Length

1шт.

19

79488C1

TUBE ASSY, outside 0.75" OD, 73-1" Length

1шт.

79378C1

CLAMP

6шт.

20

75117C1

ELBOW

2шт.

21

79623C1

COUPLING, male

2шт.

79624C1

COUPLING, female

2шт.

79625C1

PLUG

2шт.

79626C1

CAP

2шт.

22

79489C1

TUBE ASSY, outside

1шт.

120874

CLAMP, .840 dia bare, .780 coated

2шт.

451821

SCREW, 1/4 x 1-1/4 h/hd tap

1шт.

79378C1

CLAMP

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.
