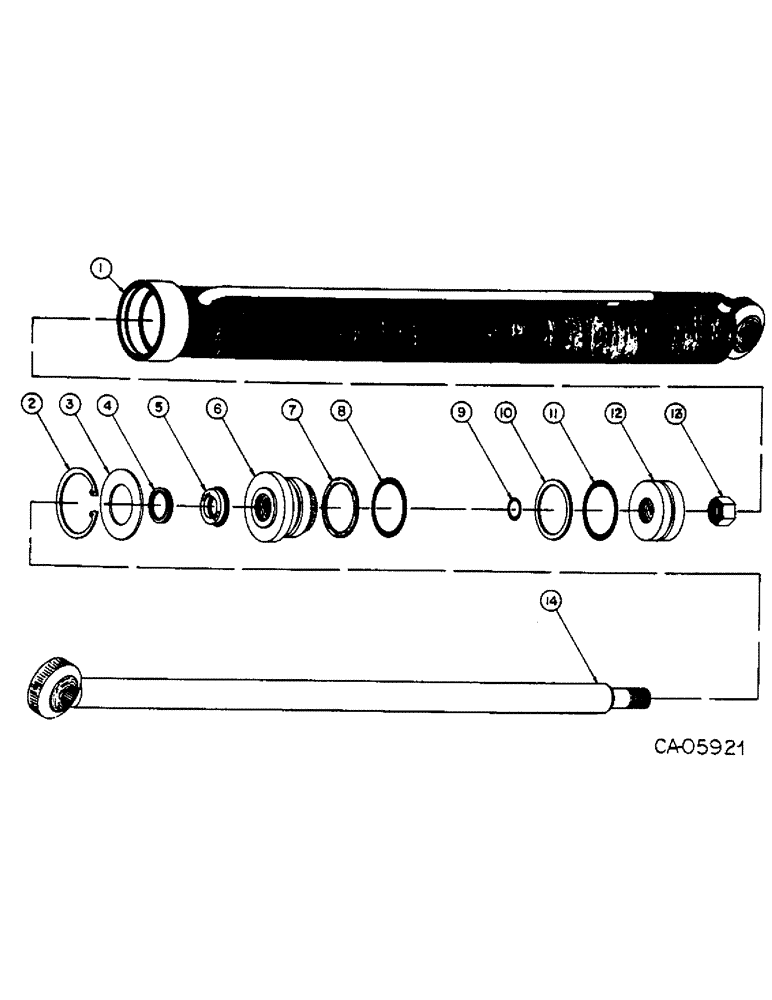

Запчасти Case IH 4155 (10-05) - 72168C91 - HYDRAULICS, TILT CYLINDER (07) - HYDRAULICS

72168C91

CYLINDER

ASSY, tilt

2шт.

1

72171C1

TUBE, cylinder 24.097" Length

2шт.

2

629841R1

RING, SNAP

RING, 3.734 int ret

2шт.

3

NSS

NOT SOLD SEPARAT

WASHER

2шт.

4

72315C1

WIPER

end

2шт.

5

72316C1

SEAL, rod

2шт.

6

72930C91

KIT, packing head, Includes ref 3

2шт.

7

72317C1

RING, back-up

2шт.

8

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 class 6

2шт.

9

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 class 6

2шт.

10

72318C1

SEAL, piston

2шт.

11

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 class 5

2шт.

12

72169C1

PISTON, cylinder

2шт.

13

19486R1

NUT, 1-NF p/t lock type 5 1"-14, G5

2шт.

14

72170C1

ROD, cylinder

2шт.

72173C91

PACKAGE

o-ring & seal service

1шт.
