Запчасти Case IH 4155 (10-01) - HYDRAULICS, HYDRAULIC & HYDROSTATIC SYSTEM (07) - HYDRAULICS

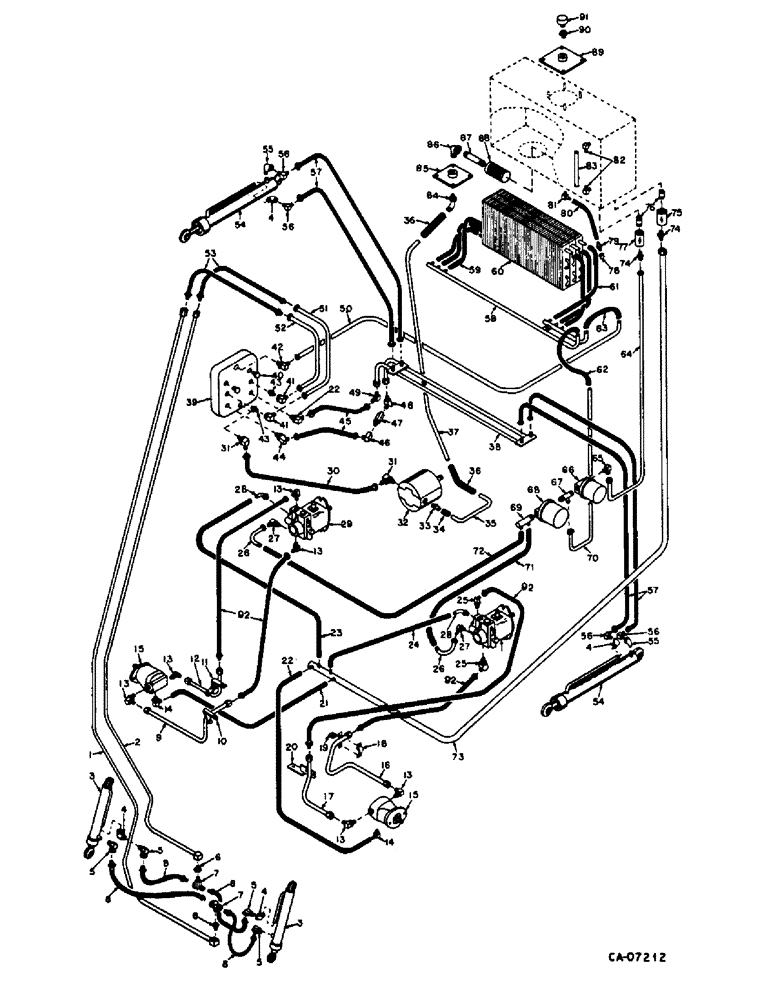

Схема запчастей Case IH 4155 - (10-01) - HYDRAULICS, HYDRAULIC & HYDROSTATIC SYSTEM (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

79416C1

TUBE ASSY, tilt up 0.75" OD, 82" Length

1шт.

2

79417C1

TUBE ASSY, tilt down 0.75" OD, 78-3" Length

1шт.

79378C1

CLAMP

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

72168C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder for service parts

2шт.

4

144128

OIL SEAL

ELBOW, 3/8 znp 90D pipe

4шт.

5

77426C1

ELBOW

4шт.

6

144216

BUSHING,1/2" NPT Male x 3/8" NPT Fem

ADAPTER, 1/2 to 3/8 znp out/h/hd pip

2шт.

7

73916C1

TEE

2шт.

8

72116C1

HOSE ASSY, tilt cyl

4шт.

9

79418C1

TUBE ASSY, RH front 1" OD, 14.09, 6.16" Length

1шт.

10

79419C1

BRACKET, RH front tube

1шт.

11

79420C1

BRACKET, RH rear tube

1шт.

12

79421C1

TUBE ASSY, RH rear

1шт.

13

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1 C-Z hyd fld adj 90D

6шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

6шт.

14

79422C1

ELBOW

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

15

77838C91

MOTOR ASSY, hydro, Refer to hydrostatic motor for service parts

2шт.

16

79423C1

TUBE ASSY, LH rear

1шт.

17

79424C1

TUBE ASSY, LH front

1шт.

18

79425C1

CLAMP

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

8шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

19

79426C1

BRACKET, LH rear tube

1шт.

20

79427C1

BRACKET, LH front tube

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, Case drain use 14 in. from 25 ft. roll marked 180720C1

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, Case drain use 20 in. from 25 ft. roll marked 180720C1

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE, Case drain use 35 in. from 25 ft. roll marked 180720C1

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE, Case drain use 23 in. from 25 ft. roll marked 180720C1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, no. 10 shoe type F hose

8шт.

25

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

1 C-Z hyd fld adj 45D

2шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

26

79428C1

TUBE ASSY, charge inlet

1шт.

27

150776C91

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

C-Z hyd fld adj 1 to 3/4 90D

2шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

28

73329C1

ELBOW

2шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

29

77833C91

PUMP ASSY, hydrostatic, Refer to hydrostatic pump for service parts

2шт.

30

76723C1

HOSE ASSY, Serial Range: pump-valve

1шт.

31

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4 C-Z hyd fld adj 90D

2шт.

32

74718C91

PUMP

ASSY, hydraulic, Refer to hydraulic pump for service parts

1шт.

33

77836C1

FITTING

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

1шт.

34

NSS

NOT SOLD SEPARAT

HOSE, use 5 in. from 50 ft. roll marked 490960R1

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, no. 20 type F hose

2шт.

35

77835C1

TUBE 1.25" OD, 18" Length

1шт.

36

NSS

NOT SOLD SEPARAT

HOSE, use 10 in. from 50 ft. roll marked 490960R1

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, no. 20 type F hose

4шт.

37

79429C1

TUBE ASSY, feed line 21-1" Length

1шт.

38

79430C1

TUBE ASSY, crossover

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 crg type 1

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

39

79431C91

VALVE ASSY, self leveling control, Refer to control valve assy for service parts

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

40

9410360

PLUG

5/8 C-Z str thd o-ring boss

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

41

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

2шт.

42

153619C91

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

D-Z hyd fld adj 1 to 3/4 90D

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

43

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, C-Z hyd fld 3/4 to 5/8 SH

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

44

75104C1

ELBOW

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

45

77422C1

HOSE ASSY, valve crossover

2шт.

46

24714R1

ELBOW, C-Z hyd fld int thd 1/2 to 1/2 90D

1шт.

47

73495C1

VALVE, restrictor

1шт.

48

25669R1

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

pln hyd fld 3/4 to 1/2 45D

1шт.

49

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 1/2 C-Z hyd fld tube 90D elbow

1шт.

50

79432C1

TUBE ASSY, Serial Range: valve-coolers

1шт.

51

79433C1

TUBE ASSY, tilt, Inside

1шт.

52

79434C1

TUBE ASSY, tilt, Outside

1шт.

79378C1

CLAMP

3шт.

53

79435C1

HOSE ASSY, tilt

2шт.

54

72175C91

CYLINDER ASSY, lift, Refer to lift cylinder for service parts

2шт.

55

120063

BOLT,Hex, M8 x 80, 8.8

3/8 pln 90D pipe street

2шт.

56

79436C1

ELBOW

4шт.

57

79437C1

HOSE ASSY, manifold to lift cyl

4шт.

58

79438C1

MANIFOLD, oil cooler

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

59

NSS

NOT SOLD SEPARAT

HOSE, Use 11 in. from 50 ft roll marked 73200C1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, no. 10 shoe type F hose

6шт.

60

78158C1

COOLER

oil

3шт.

61

NSS

NOT SOLD SEPARAT

HOSE, manifold to cooler use 18 in. from 25 ft. roll marked 73200C1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, no. 10 shoe type F hose

6шт.

62

NSS

NOT SOLD SEPARAT

HOSE, filter to manifold use 32 in. from 50 ft. roll marked 490960R1

1шт.

73323C1

SPRING, liner

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, no. 16 shoe type F hose

2шт.

63

NSS

NOT SOLD SEPARAT

HOSE, valve to manifold, Use 32 in. from 50 ft. roll marked 490960R1

1шт.

73323C1

SPRING, liner

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, no. 16 shoe type F hose

2шт.

64

79439C1

TUBE ASSY, Serial Range: filter-reservoir

1шт.

65

79440C1

ELBOW

1шт.

66

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, Gasket

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

67

79441C1

TEE, manifold

1шт.

68

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, Gasket

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

69

79442C1

MANIFOLD, filter, Charge

1шт.

70

79443C1

TUBE ASSY, coolers, Filters 17" Length

1шт.

71

NSS

NOT SOLD SEPARAT

HOSE, pump to manifold, Use 15 in. from 50 ft. roll marked 73200C1

1шт.

72

NSS

NOT SOLD SEPARAT

HOSE, pump to manifold, Use 23 in. from 50 ft. roll marked 73200C

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, no. 10 shoe type F hose

4шт.

73

79444C1

TUBE ASSY, Case drain

1шт.

74

565014R1

CONNECTOR, C-Z hyd fld 1 to 3, 4

2шт.

75

72163C1

VALVE, check

1шт.

76

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 x 1-3/8 znp close pipe

2шт.

77

72162C1

VALVE, check, 20 PSI

1шт.

78

119101

CAP,1/2" NPT

1/2 pln pipe

1шт.

79

74761C1

CONNECTOR

1шт.

80

NSS

NOT SOLD SEPARAT

HOSE, reservoir drain, Use 32 in. from 50 ft. roll marked 526602R1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, no. 10 shoe type F hose

2шт.

81

73496C1

ELBOW

1шт.

82

72221C1

ELBOW

2шт.

83

72010C1

HOSE, indicator

1шт.

84

79445C1

ELBOW

1шт.

85

72012C1

COVER, reservoir bottom

1шт.

72164C1

GASKET

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

86

111001

ELBOW UNION,90 Degree, 1 1/4" NPT Street

ELBOW, 1-1/4 pln 90D pipe street

1шт.

87

72223C1

NIPPLE, 1-1/4 x 8

1шт.

88

72153C1

FILTER

sump

1шт.

89

73911C1

COVER, reservoir top

1шт.

72164C1

GASKET

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

90

NLS

NO LONGER SERVICED

ADAPTER, 1-1/4 to 3/8 znp ins/h/hd pipe

1шт.

91

72220C1

VALVE

pressure

1шт.

92

79446C1

HOSE ASSY, Serial Range: pump-motor

4шт.

Выбрано товаров: 143
