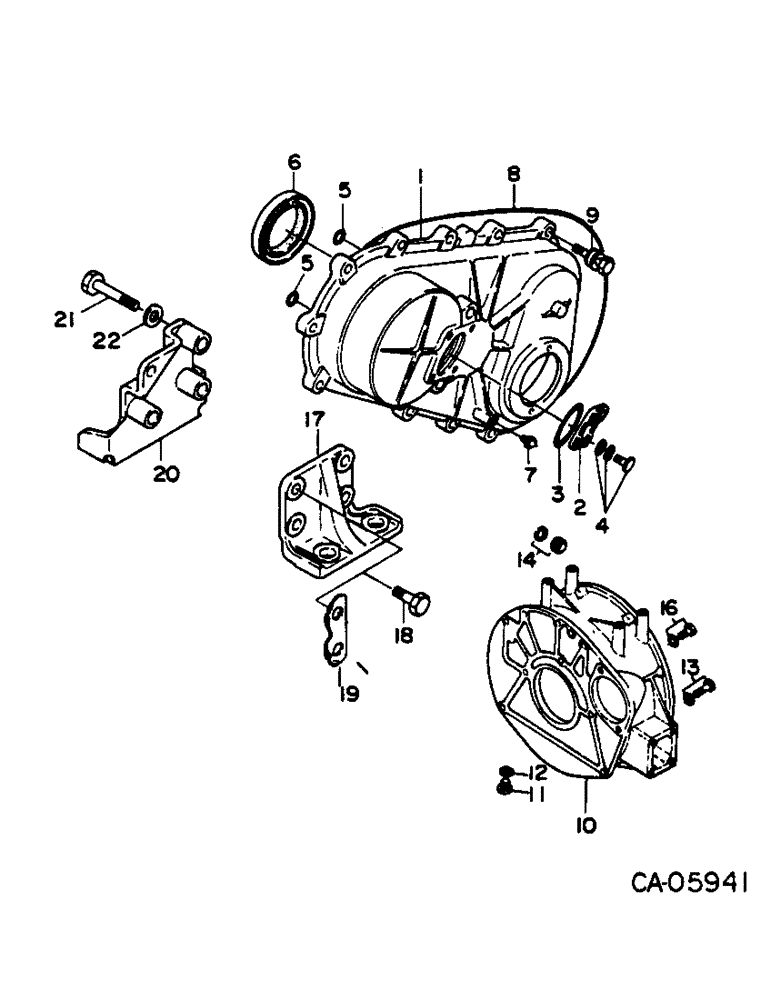

Запчасти Case IH 4155 (12-07) - POWER, TIMING GEAR AND FLYWHEEL HOUSING (04) - Drive Train

1

74519C1

HOUSING, timing gear

1шт.

2

74520C1

COVER, gear housing

1шт.

3

74521C1

GASKET, gear housing cover

1шт.

4

74522C1

BOLT, gear housing cover

4шт.

74523C1

WASHER, flat

4шт.

74524C1

WASHER, lock

4шт.

5

74525C1

WASHER, packing

2шт.

6

74526C1

SEAL

oil

1шт.

7

74527C1

INDICATOR, timing

1шт.

8

74528C1

GASKET, gear housing

1шт.

9

74529C1

BOLT, timing gear housing

9шт.

10

74530C1

HOUSING, flywheel

1шт.

11

74531C1

PLUG

1шт.

12

74532C1

GASKET, plug

1шт.

13

74533C1

BOLT, flywheel housing

3шт.

13

74534C1

BOLT, flywheel housing

2шт.

14

74535C1

NUT

1шт.

74536C1

WASHER, lock

4шт.

16

74537C1

BOLT, flywheel housing

3шт.

74538C1

WASHER, lock

5шт.

17

74539C1

SUPPORT, engine, RH

1шт.

18

74540C1

BOLT, engine support

4шт.

19

74541C1

WASHER, engine support

4шт.

20

74542C1

SUPPORT, engine, LH

1шт.

21

74543C1

BOLT, engine support

1шт.

21

74544C1

BOLT, engine support

2шт.

21

74545C1

BOLT, engine support

1шт.

22

74541C1

WASHER, engine support

4шт.
