Запчасти Case IH 4155 (07-05) - DRIVE TRAIN, DRIVE AXLE - FRONT & REAR (04) - Drive Train

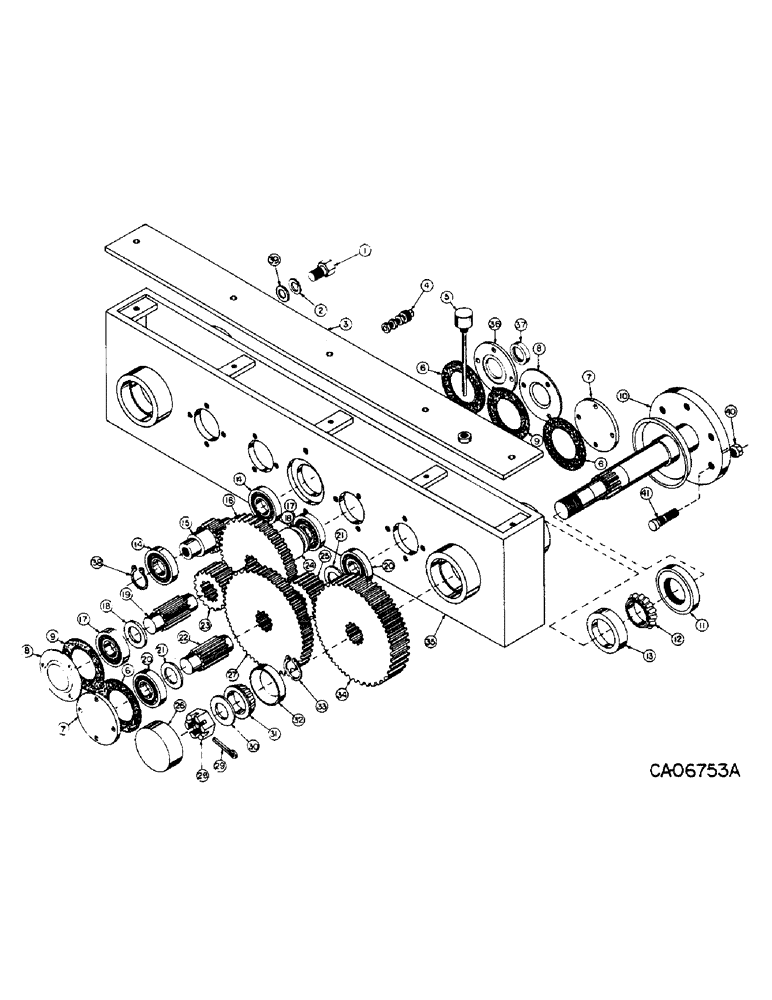

Схема запчастей Case IH 4155 - (07-05) - DRIVE TRAIN, DRIVE AXLE - FRONT & REAR (04) - Drive Train

Артикул

Название

Примечание

Количество

79380C91

CASE ASSY, gear

2шт.

1

113-922

BOLT,Hex, 1" - 8 x 2", Gr 5, Full Thd

1 x 2 type 5

12шт.

2

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

12шт.

3

79381C1

BAR, gear case, Cover, RH

1шт.

3

79382C1

BAR, gear case, Cover, LH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

10шт.

4

72070C1

PLUG

2шт.

5

74764C1

GAGE, gear case oil, dipstick

2шт.

6

77394C1

GASKET

10шт.

7

77819C1

COVER

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

32шт.

8

72072C1

COVER

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

24шт.

9

72071C1

GASKET

cover

8шт.

10

77820C1

AXLE

4шт.

11

72218C1

SEAL

wheel

4шт.

12

928331C91

ROLLER BEARING,69.98mm ID x 25mm W

CONE, outer wheel bearing

4шт.

13

928330C1

BEARING CUP,110mm OD x 17.46mm W

CUP, outer wheel bearing

4шт.

14

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, input shaft

4шт.

15

77821C1

SHAFT, input

2шт.

16

77822C1

GEAR, primary

4шт.

17

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, primary idler

8шт.

18

73308C1

THRUST WASHER

spacer, 10 ga

8шт.

19

77823C1

SHAFT, idler

4шт.

20

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING

8шт.

21

72929C1

THRUST WASHER

SPACER, washer

8шт.

22

77824C1

SHAFT, secondary

4шт.

23

77825C1

PINION, primary

4шт.

24

77826C1

SPACER

4шт.

25

77827C1

PINION

secondary

4шт.

26

72083C1

COVER, axle

4шт.

27

77828C1

GEAR, secondary

4шт.

28

72084C1

NUT, axle

4шт.

29

108566

SLEEVE

PIN, 7/32 x 3 pln cot

4шт.

30

77829C1

THRUST WASHER

thrust

4шт.

31

533726R91

BEARING

CONE, inner wheel bearing

4шт.

32

533727R1

BEARING, CUP

CUP, inner wheel bearing

4шт.

33

513008R1

SNAP RING

RING, 2.428 ext ret

4шт.

34

72086C1

GEAR

final

4шт.

35

77830C1

HOUSING

2шт.

36

77831C1

PLATE, brake adapter

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

8шт.

37

73936C1

SEAL

input

2шт.

38

233041R1

SNAP RING,#156, Ext

RING, 1.446 ext ret

1шт.

39

79383C1

WASHER

6шт.

40

663106R1

SPECIAL NUT

NUT, lug

32шт.

41

79513C1

BOLT,9/16" - 18 x 2 1/2"

wheel

32шт.

Выбрано товаров: 51
