Запчасти Case IH 4150 (10-29) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

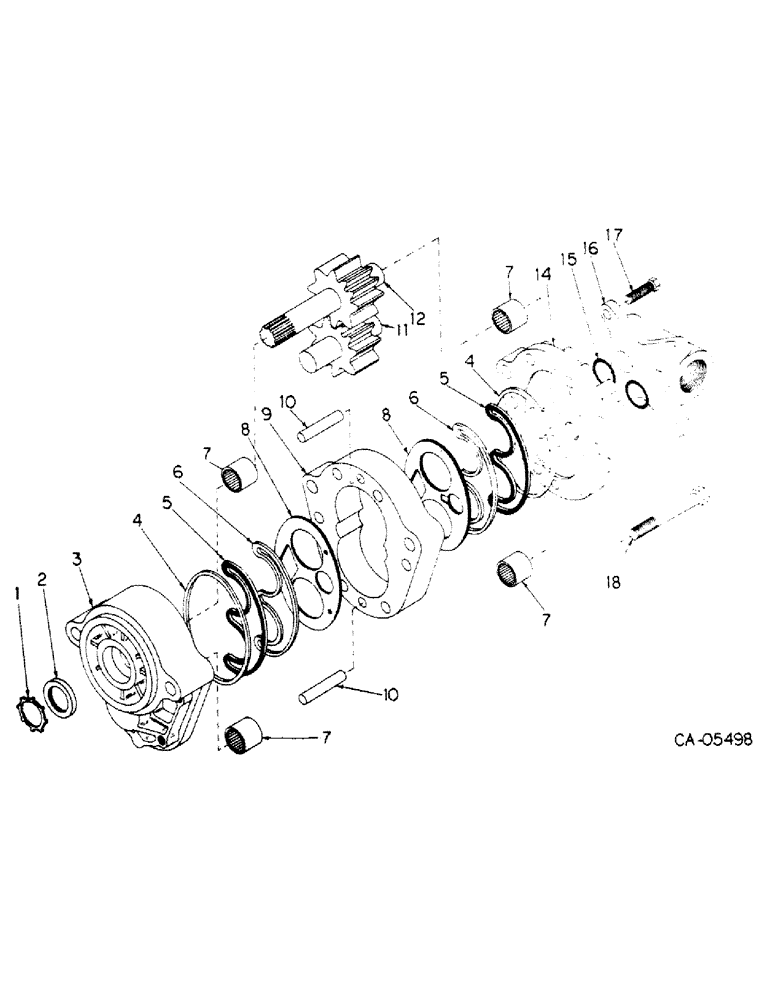

Схема запчастей Case IH 4150 - (10-29) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

72506C91

PUMP

ASSY, hydraulic, Loader serial no. 106 and below, diesel, Loader serial no. 136 and below, gas

1шт.

74718C91

PUMP

ASSY, hydraulic, Loader serial no. 107 and above, diesel, Loader serial no. 137 and above, gas

1шт.

1

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

2

72661C1

SEAL, oil

1шт.

Part of pump service kit P/N 72676C91

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

4

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

5

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

6

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

8

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

15

NSS

NOT SOLD SEPARAT

order kit 72676C91

1шт.

Part of pump service kit P/N 72676C91

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

Order complete pump assy 72506C91 or 74718C91 according to loader serial number listed with each pump assy.

1шт.

72676C91

KIT, pump service, Consists of ref nos. 1, 2, 4, 5, 6, 8 and 15

1шт.
