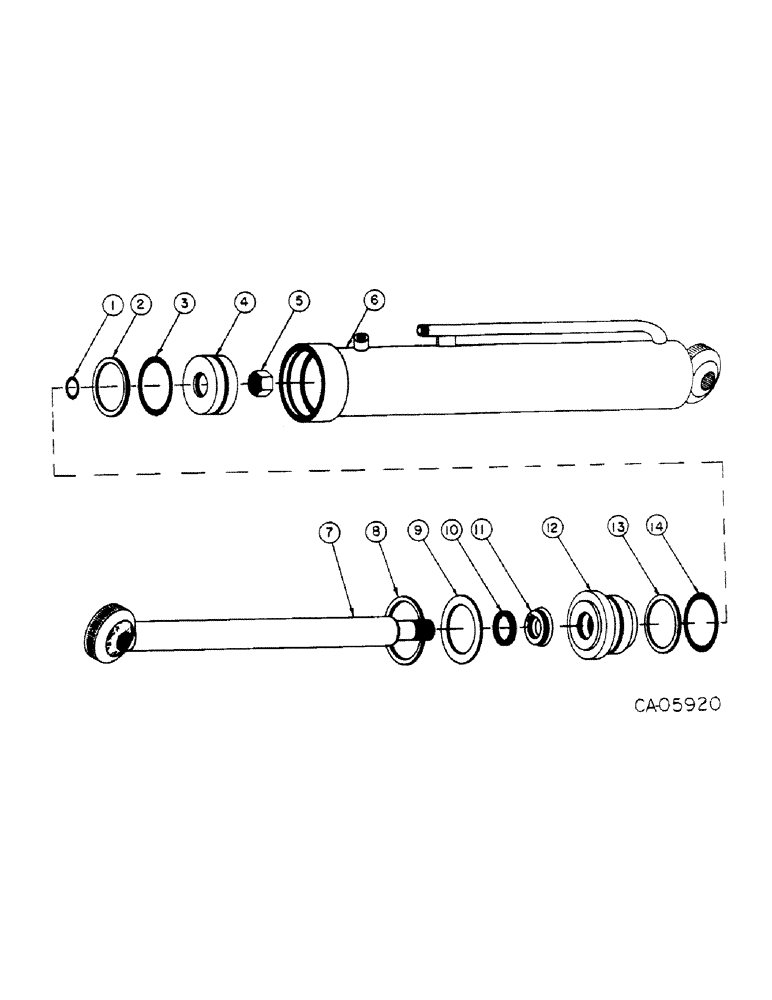

Запчасти Case IH 4150 (10-27) - HYDRAULICS, LIFT CYLINDER (07) - HYDRAULICS

72175C91

CYLINDER ASSY, lift

2шт.

1

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

.987 x 1.193 x .094

2шт.

2

72318C1

SEAL, piston

2шт.

3

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2.550 x 2.756 x .094

2шт.

4

72169C1

PISTON, cylinder

2шт.

5

19486R1

NUT, 1/-14 znd hex. lock 1"-14, G5

2шт.

6

72176C1

TUBE, cylinder 36.285" Length

2шт.

7

72174C1

ROD, cylinder

2шт.

8

629841R1

RING, SNAP

RING, retaining

2шт.

9

NSS

NOT SOLD SEPARAT

SUPPLIED AS PART OF REF. 12

1шт.

10

72315C1

WIPER

rod

2шт.

11

72316C1

SEAL, rod

2шт.

12

72930C91

KIT, packing head

2шт.

13

72317C1

RING, back-up

2шт.

14

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2.734 x 3.012 x .139

2шт.

72173C91

PACKAGE

o-ring and seal service

2шт.
