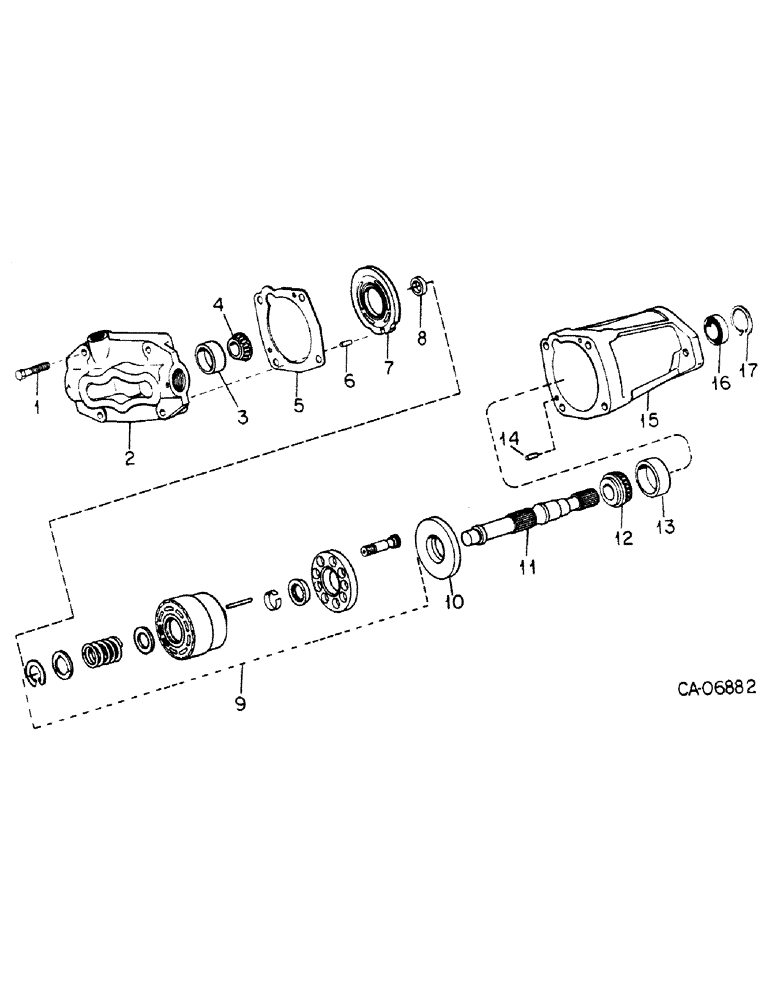

Запчасти Case IH 4150 (10-24) - HYDRAULICS, HYDROSTATIC MOTOR ASSY, LOADER (07) - HYDRAULICS

77838C91

MOTOR ASSY, hydrostatic

1шт.

1

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

2

NSS

NOT SOLD SEPARAT

order motor assy

1шт.

3

371883R1

BEARING CUP

Valve block

1шт.

4

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Valve block

1шт.

5

145585C1

GASKET

valve block

1шт.

6

145583C1

PIN

dowel

1шт.

7

145584C1

LARGE PLATE

PLATE, valve

1шт.

8

145582C91

PACKAGE

KIT, bearing spacer

1шт.

9

145581C91

KIT

rotating group

1шт.

10

145598C1

PLATE

thrust

1шт.

11

145580C1

SHAFT, motor

1шт.

12

145579C91

BEARING HOUSING

BEARING, housing cone

1шт.

13

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

BEARING, housing cup

1шт.

14

NSS

NOT SOLD SEPARAT

order motor assy

1шт.

15

NSS

NOT SOLD SEPARAT

order motor assy

1шт.

16

145587C1

SEAL

lip

1шт.

17

309107R1

SNAP RING,1.75", Int, #175

Ring, retaining

1шт.
