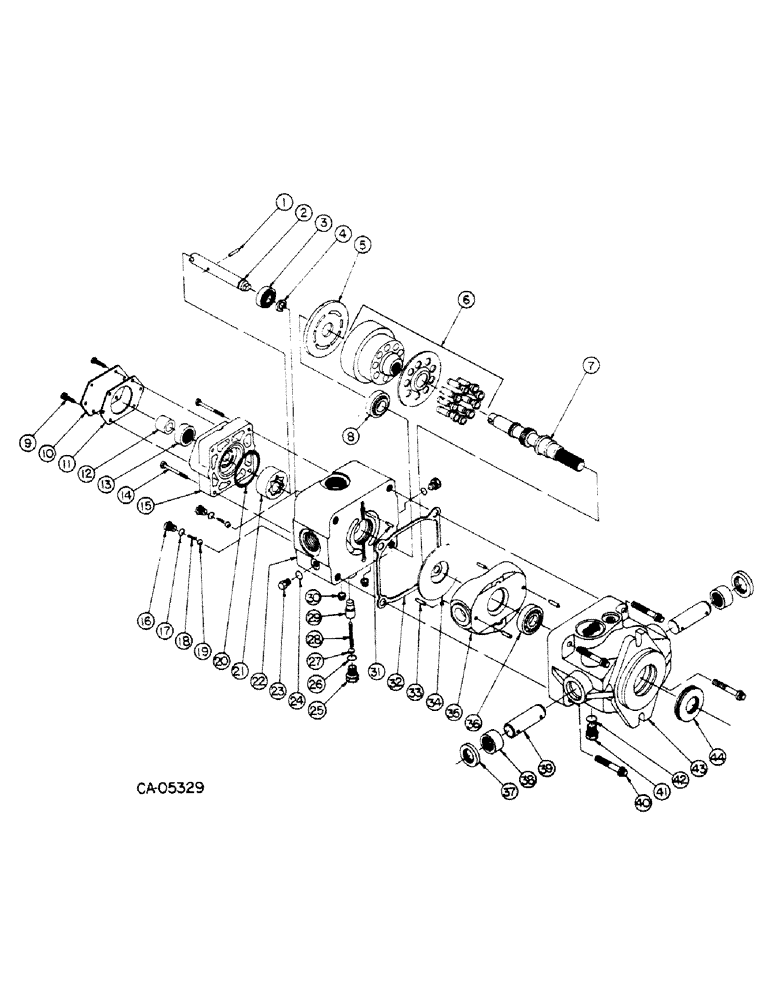

Запчасти Case IH 4150 (10-22) - HYDRAULICS, HYDROSTATIC PUMP, LOADER (07) - HYDRAULICS

72056C91

PUMP ASSY, hydrostatic

1шт.

179814

SPACER

4шт.

1

138178C1

PIN

charge pump drive

1шт.

2

138177C1

SHAFT, charge pump drive

1шт.

3

336900R91

BEARING

ASSY, ball

1шт.

4

267805R1

RING

retaining

1шт.

5

133467C1

PLATE

valve

1шт.

6

133468C91

KIT

cylinder block

1шт.

7

138176C1

SHAFT

pump

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, rear cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

651814R1

BEARING CUP

BEARING, rear cup

1шт.

224331C1

SHIM

rear bearing

1шт.

9

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

10

138179C1

COVER

1шт.

11

72561C1

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

order package 138175C91

1шт.

13

NSS

NOT SOLD SEPARAT

order package 138175C91

1шт.

14

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

15

NSS

NOT SOLD SEPARAT

order package 138175C91

1шт.

16

NSS

NOT SOLD SEPARAT

order package 123094C1

1шт.

17

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

2шт.

18

NSS

NOT SOLD SEPARAT

order package 123094C1

1шт.

19

NSS

NOT SOLD SEPARAT

order package 123094C1

1шт.

20

23707R1

O-RING,2.364" ID x 2.504" OD x 0.07"

2.375 x 2.437 x .062

2шт.

21

NSS

NOT SOLD SEPARAT

order package 138175C91

1шт.

22

NSS

NOT SOLD SEPARAT

order package 72056C91

1шт.

23

9410356

PLUG

7/16-20 str thd o-ring boss

2шт.

24

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

25

NSS

NOT SOLD SEPARAT

order pump assy, 72056C91

1шт.

26

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

27

NSS

NOT SOLD SEPARAT

order package 123093C1

1шт.

28

NSS

NOT SOLD SEPARAT

order package 123093C1

1шт.

29

NSS

NOT SOLD SEPARAT

order package 123093C1

1шт.

30

NSS

NOT SOLD SEPARAT

order package 123093C1

1шт.

31

133466C1

PIN

valve plate

1шт.

32

71895C1

GASKET

1шт.

33

19738R1

PIN,5/16" x 3/4", Coiled

4шт.

34

133470C1

PLATE

thrust

1шт.

35

133469C1

LARGE PLATE

HOUSING, variable swash plate

1шт.

36

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING, front cone

1шт.

36

572564R1

BEARING CUP

BEARING, front cup

1шт.

37

123101C1

SEAL

2шт.

38

550839R91

BEARING, NEEDLE

2шт.

39

133473C1

SHAFT

trunnion

2шт.

40

27992R1

SCREW,Hex Soc Hd, 7/16"-14 x 2 1/4"

7/16-14 x 2-1/4 hex-soc-hd cap

4шт.

41

9410359

PLUG

3/4-16 str thd o-ring boss

1шт.

42

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. tube

1шт.

43

NSS

NOT SOLD SEPARAT

order pump assy, 72056C91

1шт.

44

123100C1

SEAL

lip

1шт.

123094C1

KIT

check valve service, Contains ball, spring, plug and o-ring

1шт.

123093C1

KIT

charge relief valve service, Contains plug, o-ring, shim pack spring, and cone

1шт.

138175C91

PUMP

PACKAGE, charge pump, Consists of

1шт.

179814

SPACER

4шт.

138179C1

COVER

1шт.

138180C1

GASKET

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

NSS

NOT SOLD SEPARAT

GERATOR

1шт.

138178C1

PIN

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

23707R1

O-RING,2.364" ID x 2.504" OD x 0.07"

1шт.
