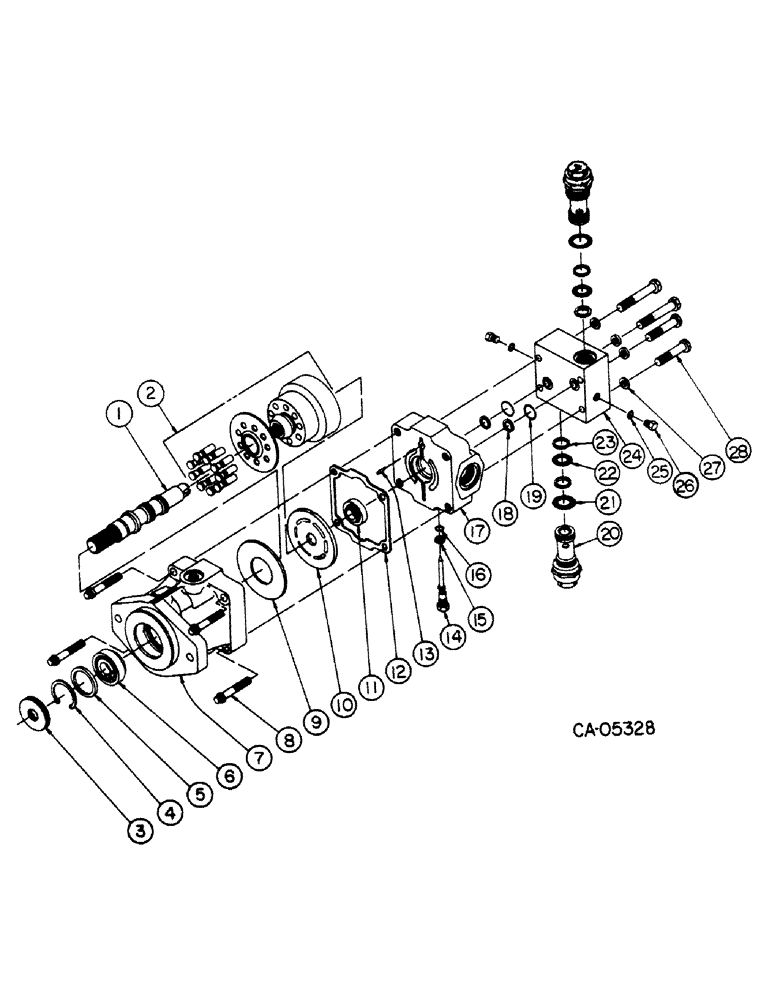

Запчасти Case IH 4150 (10-20) - HYDRAULICS, HYDROSTATIC MOTOR, LOADER (07) - HYDRAULICS

72262C92

MOTOR ASSY, hydrostatic

1шт.

1

138174C1

SHAFT

motor

1шт.

2

133468C91

KIT

cylinder block

1шт.

133488C1

RING

lip seal retaining

1шт.

3

123100C1

SEAL

lip

1шт.

4

72559C1

RING

bearing retaining

1шт.

5

133486C1

WASHER

bearing retainer

1шт.

6

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING, front cone

1шт.

6

527564R1

SPACER

BEARING, front cup

1шт.

7

NSS

NOT SOLD SEPARAT

order motor assy, 72262C91

1шт.

8

319675R1

SCREW, 7/16-14 x 2-1/2-12 pt cap type 8 12 Pt Flg, 7/16"-14 x 2 1/2", G8

4шт.

133481C1

WASHER, plain

4шт.

9

133470C1

PLATE

THRUST

1шт.

10

133467C1

PLATE

valve

1шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, rear cone

1шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

651814R1

BEARING CUP

BEARING, rear cup

1шт.

224331C1

SHIM

rear bearing

1шт.

12

71905C1

GASKET

1шт.

13

133466C1

PIN

valve plate

1шт.

14

133484C1

VALVE

by-pass, For use with Sundstrand moter assy number 18-3018-05

1шт.

14

133482C1

VALVE

by-pass, For use with Sundstrand motor assy number 18-3018-06

1шт.

15

71893C1

RING, back-up, For use with Sundstrand motor assy number 18-3018-05

1шт.

15

133483C1

WASHER

RING, back-up, For use with Sundstrand motor assy number 18-3018-06

1шт.

16

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

.312 x .375 x .062, For use with Sundstrand motor assy number 18-3018-05

1шт.

16

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

.375 x .500 x .158, For use with Sundstrand motor assy number 18-3018-06

1шт.

17

NSS

NOT SOLD SEPARAT

order motor assy, 72262C91

1шт.

18

133489C1

WASHER

RING, back-up

2шт.

19

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

.562 x .656 x .094

2шт.

20

394178R92

VALVE ASSY, relief

2шт.

21

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 O.D. tube

2шт.

22

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

.812 x 1.000 x .094

2шт.

23

393887R1

BACK-UP RING

RING, back-up

4шт.

24

NSS

NOT SOLD SEPARAT

order motor assy, 72262C91

1шт.

25

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

26

9410356

PLUG

7/16-20 str thd, o-ring boss

2шт.

27

394880R1

WASHER

4шт.

28

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, Consists of

1шт.

393887R1

BACK-UP RING

RINGS

2шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL

1шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL

1шт.

133361C91

PACKAGE

gasket and seal, Consists of

1шт.

71905C1

GASKET

1шт.

123100C1

SEAL

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

SEAL

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEALS

2шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEALS

2шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEALS

2шт.

71893C1

RING

1шт.

133489C1

WASHER

RINGS

2шт.

393887R1

BACK-UP RING

RINGS

4шт.
