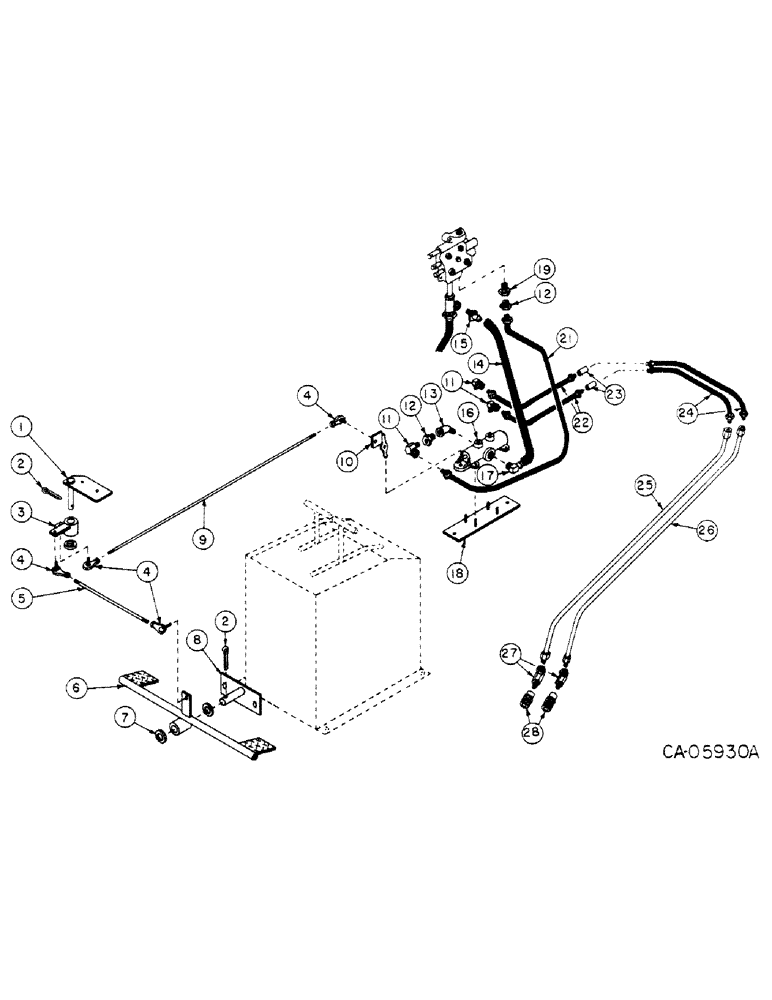

Запчасти Case IH 4150 (10-15) - HYD,AUXILIARY CONTROL VALVE & FRONT MOUNT, LOADER, DIESEL, LOADER GAS (07) - HYDRAULICS

1

74643C1

PLATE, pivot

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

2

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

73391C1

ARM, foot pedal, pivot, Replaces 74644C1

1шт.

4

72212C1

END ASSY.

END, 5/16 rod

1шт.

9413936

NUT,5/16"-24, GA

5/16-NF phc p/t lock type 1

4шт.

5

74645C1

ROD, front

1шт.

120368

NUT,5/16"-24, G5

4шт.

6

73394C1

PEDAL, foot

1шт.

7

73395C1

BUSHING

1шт.

8

73396C1

PIVOT, foot pedal, Serial Range: -168

1шт.

8

77843C1

PIVOT, foot pedal, Start Serial: 169

1шт.

9

74646C1

ROD, side

1шт.

120368

NUT,5/16"-24, G5

2шт.

10

72484C1

HANDLE

1шт.

72485C1

PIN W/RETAINER

1шт.

11

72298C1

ELBOW

3шт.

12

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

13

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 90 degree street

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, mcv to aux valve, Use 10 in. from 25 ft. roll marked 180720C1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

15

74647C1

CONNECTOR

1шт.

16

72180C91

VALVE ASSY, auxiliary control, Refer to auxiliary valve assy for service parts

1шт.

NLS

NO LONGER SERVICED

.438 x 1.00 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17

74648C1

ELBOW

1шт.

18

74649C1

PLATE, valve mount

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

19

73343C91

KIT, power beyond conversion sleeve

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE, can be rerouted to eliminate 73465C1 elbow

1шт.

21

407435R1

HOSE

ASSY

1шт.

22

407435R1

HOSE

ASSY, aux valve

2шт.

23

1408132

COUPLING, 1/2 pipe

2шт.

24

72102C1

HOSE ASSY, Serial Range: tubing-connector

2шт.

25

72177C1

TUBING ASSY, outside

1шт.

26

72178C1

TUBING ASSY, inside

1шт.

27

347522R91

ELBOW UNION

ELBOW

2шт.

28

72299C1

COUPLING, female

2шт.

72652C1

CLAMP, tubing

2шт.

120875

CLAMP, conduit hose

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, 1/4 lock

4шт.
