Запчасти Case IH 4150 (10-13) - HYD, AUXILIARY CONTROL VALVE & FRONT MOUNT, LOADER, DIESEL, LOADER, GAS (07) - HYDRAULICS

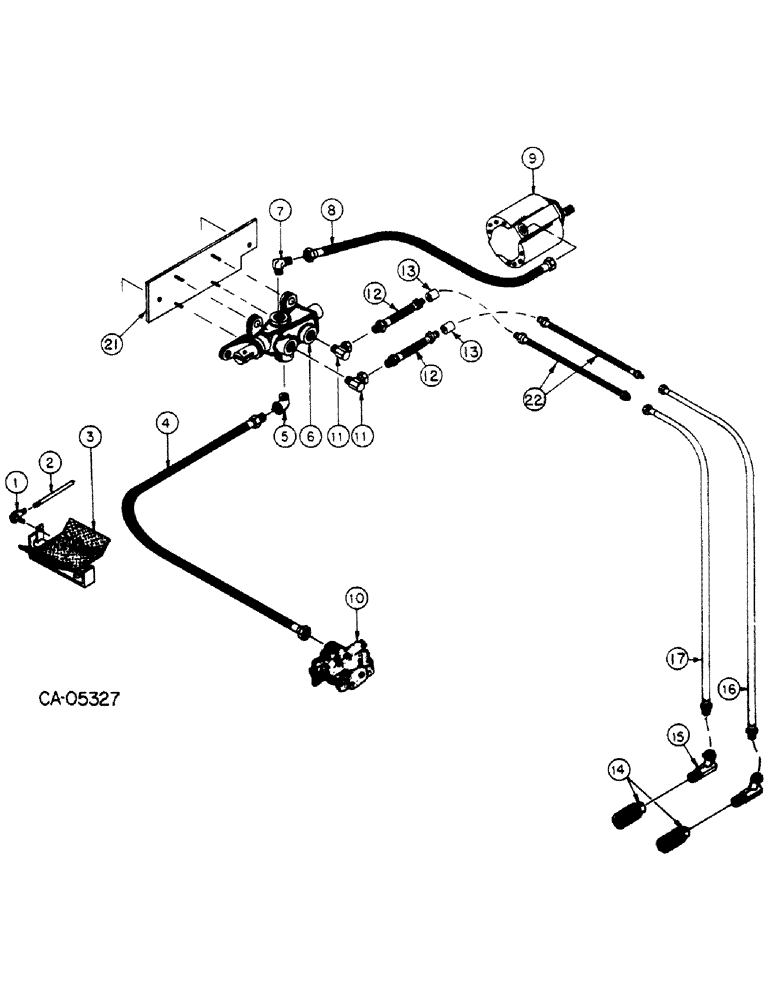

Схема запчастей Case IH 4150 - (10-13) - HYD, AUXILIARY CONTROL VALVE & FRONT MOUNT, LOADER, DIESEL, LOADER, GAS (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

72212C1

END ASSY.

END, rod 5/16

2шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16-18 cad hex lock

2шт.

2

72302C1

ROD, control

1шт.

120368

NUT,5/16"-24, G5

2шт.

3

72181C1

PEDAL ASSY, foot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

72182C1

HOSE ASSY, aux valve to control valve

1шт.

5

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 90 degree street

1шт.

6

72180C91

VALVE ASSY, auxiliary hydraulic, Refer to aux valve assy for list of components

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

9402945

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

8

72095C1

HOSE, pump to aux valve

1шт.

9

NSS

NOT SOLD SEPARAT

PUMP ASSY, hydraulic, Refer to hydraulic pump assy for list of components

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE ASSY, control, Refer to control valve assy for list of components

1шт.

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

2шт.

11

72298C1

ELBOW

2шт.

12

407435R1

HOSE

ASSY, aux valve

2шт.

13

140813

COUPLING,1/2" NPT

1/2 pipe

2шт.

14

72299C1

COUPLING, female

2шт.

15

347522R91

ELBOW UNION

ELBOW

2шт.

16

72177C1

TUBING ASSY, outside

1шт.

17

72178C1

TUBING ASSY, inside

1шт.

21

72303C1

PLATE, aux valve mtg

1шт.

22

72102C1

HOSE ASSY, Serial Range: tubing-connector

2шт.

72652C1

CLAMP, tubing

3шт.

120875

CLAMP, conduit hose

6шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 znd hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

120380

LOCK WASHER

WASHER, 1/4 znd reg lock

5шт.

Выбрано товаров: 32
