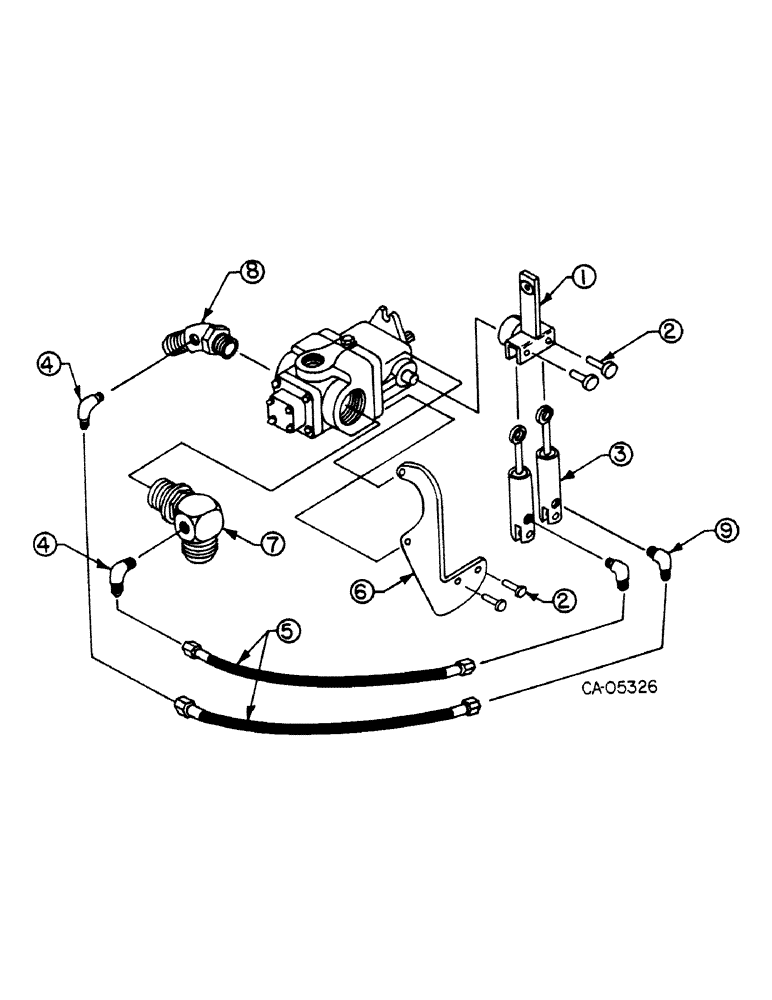

Запчасти Case IH 4150 (10-10) - HYDRAULICS, HYDROSTATIC PUMP POWER ASSIST, LOADER, DIESEL LOADER, GAS (07) - HYDRAULICS

1

72057C1

LEVER, control, RH

1шт.

1

72058C1

LEVER, control, LH

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

2шт.

2

26493R1

CLEVIS PIN,5/16" x 1 1/4"

PIN, 5/16 x 1/25 znd clevis

8шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

8шт.

3

72127C91

CYLINDER ASSY, .250 bore x 2 in. stroke, Refer to hydro pump power assist cylinder for list of components

4шт.

4

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1/8-27 37 degree hyd flared tube 90 degree

4шт.

5

514461C1

HOSE

ASSY, Serial Range: pump-cyl

4шт.

6

72129C1

BRACKET, cyl, RH

1шт.

6

72130C1

BRACKET, cyl, LH

1шт.

7

72131C1

ADAPTER, high pressure, LH top

1шт.

7

72132C1

ADAPTER, high pressure, RH top

1шт.

8

72133C1

ADAPTER, high pressure, RH bottom

2шт.

9

72134C1

ELBOW

4шт.

76532C91

KIT, wide neutral band, Consists of

1шт.

76530C1

TEE

4шт.

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

CONNECTOR

4шт.

72134C1

ELBOW

2шт.

514461C1

HOSE

ASSY

2шт.

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
