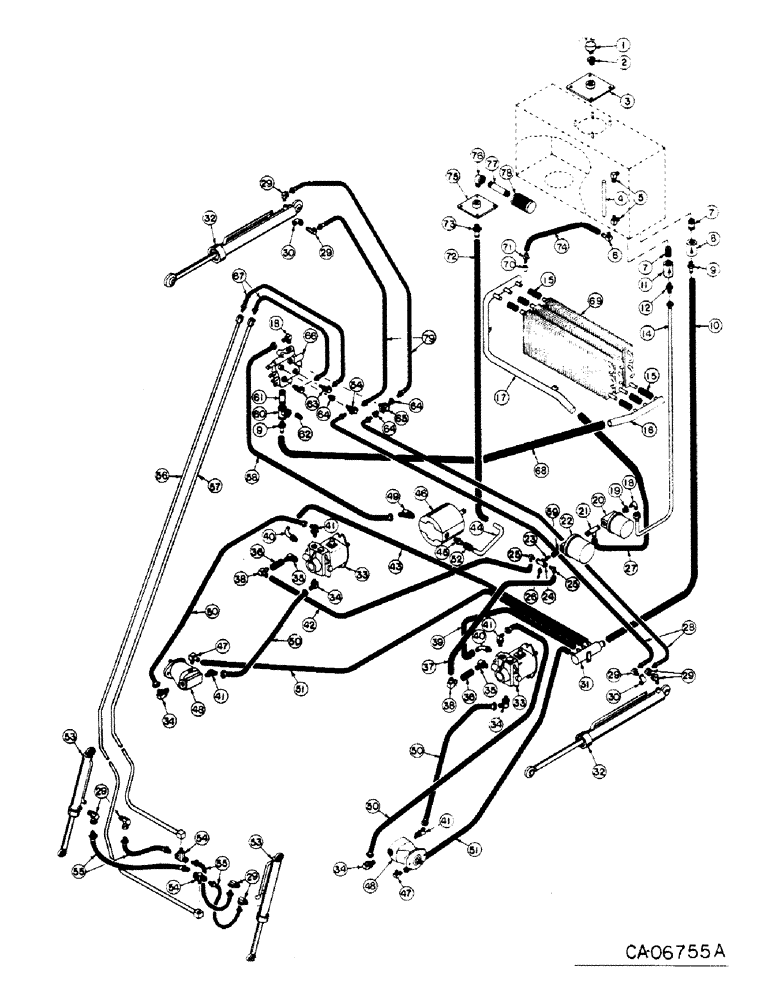

Запчасти Case IH 4150 (10-07) - HYDRAULICS, HYDRAULIC AND HYDROSTATIC SYSTEM, LOADER (07) - HYDRAULICS

1

72220C1

VALVE

pressure, vacuum

1шт.

2

NLS

NO LONGER SERVICED

ADAPTER, 1-1/4-3/8 reducing pipe

1шт.

3

73911C1

COVER, reservoir

1шт.

72164C1

GASKET

cover

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

72010C1

HOSE, indicator

1шт.

5

72212C1

END ASSY.

ELBOW

2шт.

6

73496C1

ELBOW

1шт.

7

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 close

1шт.

8

72163C1

VALVE, check

1шт.

9

73941C1

CONNECTOR

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE, case drain to reservoir, Use 44 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

11

72162C1

VALVE, check, 20 PSI

1шт.

12

9402711

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-14, NPTF

CONNECTOR, 3/4 NPTF 37 degree hyd flared

1шт.

14

72087C1

TUBE ASSY, Serial Range: filter-reservoir

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE, oil cooler, Use 5 in. from 25 ft. roll marked 73200C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

12шт.

16

78167C1

MANIFOLD, oil cooler, LH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17

78168C1

MANIFOLD, oil cooler, RH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

90 degree, 37 degree hyd flared tube

2шт.

19

144064

ADAPTER, 1-1/4-3/4 reducing pipe

1шт.

20

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, gasket

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

21

73913C1

MANIFOLD, filter

1шт.

22

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, gasket

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

23

127874

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, 1 in. close

1шт.

24

77265C1

TEE, modified

1шт.

25

670517C2

SPARE PART

ELBOW

2шт.

26

72128C1

SWITCH

pressure

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, filter manifold to cooler, Use 36 in from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

28

72091C1

HYDRAULIC HOSE,0.38" ID x 94.00", SAE 100R2 Type A

HOSE ASSY, LH lift cylinder

2шт.

29

293350R91

UNION

ELBOW

9шт.

30

120063

BOLT,Hex, M8 x 80, 8.8

3/8 90 degree street

1шт.

31

77832C1

MANIFOLD, case drain

1шт.

32

72175C91

CYLINDER ASSY, lift, Refer to lift cylinder for service parts

2шт.

33

77833C91

PUMP ASSY, hydrostatic, Refer to hydrostatic pump for service parts

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

34

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

4шт.

35

73943C1

ELBOW

2шт.

36

NSS

NOT SOLD SEPARAT

HOSE, connector, Use 3 in. from 50 ft. roll marked 490960R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

37

NSS

NOT SOLD SEPARAT

HOSE, pump to filter, Use 15 in. from 50 ft. roll marked 490960R1

1шт.

38

77834C1

ELBOW

2шт.

39

NSS

NOT SOLD SEPARAT

HOSE, case drain, Use 63 in. from 50 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

2шт.

40

75104C1

ELBOW

2шт.

41

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

4шт.

42

NSS

NOT SOLD SEPARAT

HOSE, pump to filter, Use 25 in. from 50 ft. roll marked 490960R1

1шт.

27860C1

CLAMP, #6 hose

2шт.

43

NSS

NOT SOLD SEPARAT

HOSE, pump to manifold, Use 25 in. from 50 roll marked 180720C1

1шт.

27702C1

CLAMP, #12 hose

2шт.

44

77835C1

TUBE, pump 1.25" OD, 18" Length

1шт.

45

77836C1

CONNECTOR

1шт.

46

74718C91

PUMP

ASSY, hydraulic, Refer to hydraulic pump assy for service parts

1шт.

47

77837C1

ELBOW

2шт.

48

77838C91

MOTOR ASSY, hydrostatic, Refer to hydrostatic motor for service parts

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

49

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4-37 degree hyd flared tube adj str thd 45 degree

1шт.

50

77839C1

HOSE ASSY, Serial Range: pump-motor

4шт.

51

NSS

NOT SOLD SEPARAT

HOSE, motor to manifold, Use 34 in. form 50 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

4шт.

52

74724C1

HOSE, pump inlet

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, #20 hose

2шт.

53

72168C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder for service parts

2шт.

54

73916C1

TEE

2шт.

55

72116C1

HOSE ASSY, cylinder

4шт.

56

72113C1

TUBE ASSY, tilt up 0.5" OD, 82, 16" Length

1шт.

57

72114C1

TUBE ASSY, tilt down 0.5" OD, 78.75" Length

1шт.

58

878017C1

HOSE ASSY, Serial Range: pump-mcv

1шт.

59

144065

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

1-1/4-1 reducing pipe

1шт.

60

125988

TEE,3/4" NPT, Fem

3/4 pipe

1шт.

61

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE, 3/4 x 3 pipe

1шт.

62

444711

PLUG,Hex Soc, 3/4"-14

3/4 pipe

1шт.

63

72298C1

ELBOW

2шт.

64

175778H1

ADAPTER

3шт.

65

77019C1

TEE, restricted

1шт.

66

73342C91

VALVE ASSY, control, Refer to control valve for service parts

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

67

73922C1

HOSE ASSY, Serial Range: valve-tubes

2шт.

120875

CLAMP

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

68

NSS

NOT SOLD SEPARAT

HOSE, valve to cooler, Use 48 in. from 50 ft. roll marked 490960R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

69

78158C1

COOLER

oil

3шт.

70

119101

CAP,1/2" NPT

1/2 pipe

1шт.

71

74761C1

CONNECTOR

1шт.

72

73927C1

HOSE, Serial Range: reservoir-pump

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, #20 hose

2шт.

73

72224C1

ADAPTER

1шт.

74

NSS

NOT SOLD SEPARAT

HOSE, drain, Use 44 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

120875

CLAMP

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

75

72012C1

COVER, reservoir

1шт.

72164C1

GASKET

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

76

111001

ELBOW UNION,90 Degree, 1 1/4" NPT Street

ELBOW, 1-1/4, 90 degree street

1шт.

77

72223C1

NIPPLE, 1-1/4 x 8 pipe

1шт.

78

72153C1

FILTER

sump

1шт.

79

530581R1

HOSE ASSY, Serial Range: mcv-cylinder

2шт.
