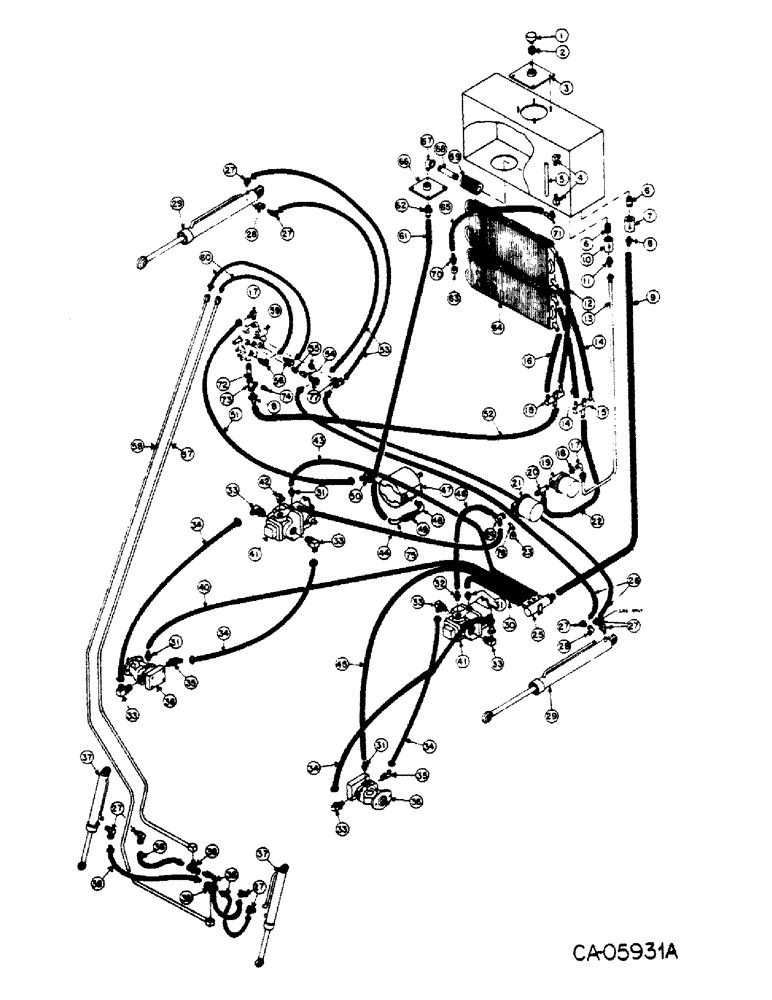

Запчасти Case IH 4150 (10-04) - HYDS., HYD. & HYDROSTATIC SYSTEM, LOADER, DIESEL LOADER, GAS (07) - HYDRAULICS

1

72220C1

VALVE

pressure, vacuum

1шт.

2

144057

SHAFT

ADAPTER, 1-1/4-3/8 reducing pipe

1шт.

3

73911C1

COVER, reservoir

1шт.

72164C1

GASKET

cover

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

72221C1

ELBOW

2шт.

5

72010C1

HOSE, indicator

1шт.

6

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 close

1шт.

7

72163C1

VALVE, check

1шт.

8

73941C1

CONNECTOR

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE, case drain to reservoir, Use 44 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

10

72162C1

VALVE, check, 20 PSI

1шт.

11

9402711

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-14, NPTF

CONNECTOR, 3/4 nptf 37 degree hyd flared

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE, oil cooler, Use 32 in. from 25 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

2шт.

13

72087C1

TUBE ASSY, Serial Range: filter-reservoir

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, oil cooler, Use 27 in. form 25 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

4шт.

15

73912C1

MANIFOLD, oil cooler

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE, oil cooler, Use 22 in. from 25 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

2шт.

17

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

2шт.

18

144064

ADAPTER, 1-1/4 - 3/4 reducing pipe

1шт.

19

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, gasket

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

20

73913C1

MANIFOLD, filter

1шт.

21

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, gasket

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE, filter manifold to cooler manifold, Use 36 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

23

72128C1

SWITCH

pressure

1шт.

24

77265C1

TEE, special, Replaces charge pump manifold by also furnishing 1 elbow 670517C2, 1 connector 73941C1, 1 adaptor 144065 and 1 nipple 127874

1шт.

670517C2

SPARE PART

ELBOW

1шт.

144065

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

ADAPTOR, reducing

1шт.

127874

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, 1 in. close

1шт.

73941C1

CONNECTOR

1шт.

25

73915C1

MANIFOLD, case drain

1шт.

26

72091C1

HYDRAULIC HOSE,0.38" ID x 94.00", SAE 100R2 Type A

HOSE ASSY, LH lift cylinder

2шт.

27

293350R91

UNION

ELBOW

8шт.

28

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8 90 degree street

2шт.

29

72175C91

CYLINDER ASSY, lift, Refer to lift cylinder assy for service part

2шт.

30

NSS

NOT SOLD SEPARAT

HOSE, manifold to hydro pump, Use 20 in. form 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

31

73657C1

CONNECTOR

4шт.

32

390640R1

FITTING

CONNECTOR

1шт.

33

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

6шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.171 x .116

6шт.

34

72109C1

HOSE ASSY, hydro pump to hydro motor

4шт.

35

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

2шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.171 x .116

2шт.

36

72262C92

MOTOR ASSY, hydrostatic, Refer to hydrostatic motor assy for service parts

2шт.

37

72168C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder assy for service parts

2шт.

38

72116C1

HOSE ASSY, cylinder

4шт.

39

73916C1

TEE

2шт.

40

NSS

NOT SOLD SEPARAT

HOSE, manifold to hydro motor, Use 51 in. from 50 ft. roll marked 526602R1

1шт.

278760R1

CLAMP, #6 hose

2шт.

41

72056C91

PUMP ASSY, hydrostatic, Refer to hydrostatic pump assy for service parts

2шт.

72264C1

GASKET

hydro pump

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

42

73943C1

ELBOW

1шт.

43

NSS

NOT SOLD SEPARAT

HOSE, pump to manifold, Use 37 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

44

NSS

NOT SOLD SEPARAT

HOSE, pump to filter, Use 22 in. from 50 ft. roll marked 490960R1

1шт.

73323C1

SPRING

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

45

NSS

NOT SOLD SEPARAT

HOSE, manifold to motor, Use 22 in from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

46

NSS

NOT SOLD SEPARAT

HOSE, pump to filter, Use 13 in. from 50 ft. roll marked 460960R1

1шт.

73323C1

SPRING

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

47

74718C91

PUMP

ASSY, hydraulic, Refer to hydraulic pump assy for service parts

1шт.

347360R1

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

3.237 x 3.422 x .103

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

73305C1

GASKET

hydraulic pump

1шт.

48

74723C1

ELBOW

1шт.

49

74724C1

HOSE, hydraulic pump

1шт.

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, #20 hose

2шт.

50

73920C1

ELBOW

1шт.

51

878017C1

HOSE ASSY, Serial Range: pump-mcv

1шт.

52

NSS

NOT SOLD SEPARAT

HOSE, mcv to oil cooler, Use 66 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

53

530581R1

HOSE ASSY, Serial Range: mcv-cylinder

2шт.

54

73917C1

ADAPTER

1шт.

55

175778H1

ADAPTER

1/2-3/8 reducing jpipe

2шт.

56

72298C1

ELBOW

2шт.

57

72114C1

TUBE ASSY, tilt down 0.5" OD, 78.75" Length

1шт.

58

73113C1

TUBE ASSY, tilt up

1шт.

59

73342C91

VALVE ASSY, control, Refer to control valve assy for service parts

1шт.

60

73922C1

HOSE ASSY, Serial Range: MCV-tubes

2шт.

120875

CLAMP, hose

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

61

73927C1

HOSE, Serial Range: reservoir-pump

1шт.

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, #20 hose

2шт.

62

72224C1

ADAPTER

1шт.

63

119101

CAP,1/2" NPT

1/2 pipe

1шт.

64

73874C1

COOLER

oil

2шт.

65

NSS

NOT SOLD SEPARAT

HOSE, reservoir drain, Use 44 in. form 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

120875

CLAMP

1шт.

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW, 1/4-14 x 1 h/hd tap

1шт.

66

72012C1

COVER, reservoir

1шт.

72164C1

GASKET

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

67

111001

ELBOW UNION,90 Degree, 1 1/4" NPT Street

ELBOW, 1-1/4 - 90 deg street

1шт.

68

72223C1

NIPPLE, 1-1/4 x 8 pipe

1шт.

69

72153C1

FILTER

sump

1шт.

70

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

71

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2, 45 degree street

1шт.

72

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE, 3/4 x 3 pipe

1шт.

73

125988

TEE,3/4" NPT, Fem

3/4 pipe

1шт.

74

444711

PLUG,Hex Soc, 3/4"-14

3/4-14 auto hex-soc pipe

1шт.

75

74725C1

ELBOW

1шт.

76

105422

ELBOW UNION

ELBOW, 1/8 90 degree street

1шт.

77

77019C1

TEE, restricted, Replaces 73916C1

2шт.
